The world’s first H.264 / H.265–based KVM-over-IP solution

A SmartAVI network-based KVM platform that lets users access and control remote computers from one central workstation. Operators can view, manage, and switch between connected systems over the network instead of moving between separate computers or equipment rooms.

The N2N sends video, keyboard, and mouse control over IP, helping teams manage multiple computers with fewer physical workstations. With H.264 and H.265 video compression, N2N delivers clear video and responsive control while reducing bandwidth usage and making larger deployments easier to scale.

  • 4K UHD Video Extension. Transmit HDMI video up to 3840 × 2160 @ 30Hz with visually lossless performance and ultra-low latency.
  • KVM-over-IP Control. Extend keyboard and mouse control across the network for seamless remote workstation management.
  • Video Walls & Multiviewers. Create dynamic video walls and customizable multiview layouts directly from the centralized software interface.
  • CAT5 & Fiber Connectivity. Support for standard Ethernet infrastructure or long-distance fiber transmission for maximum deployment flexibility.
  • Centralized Software Management. Configure devices, route signals, manage users, save scenes, and control layouts through the intuitive N2N desktop application.

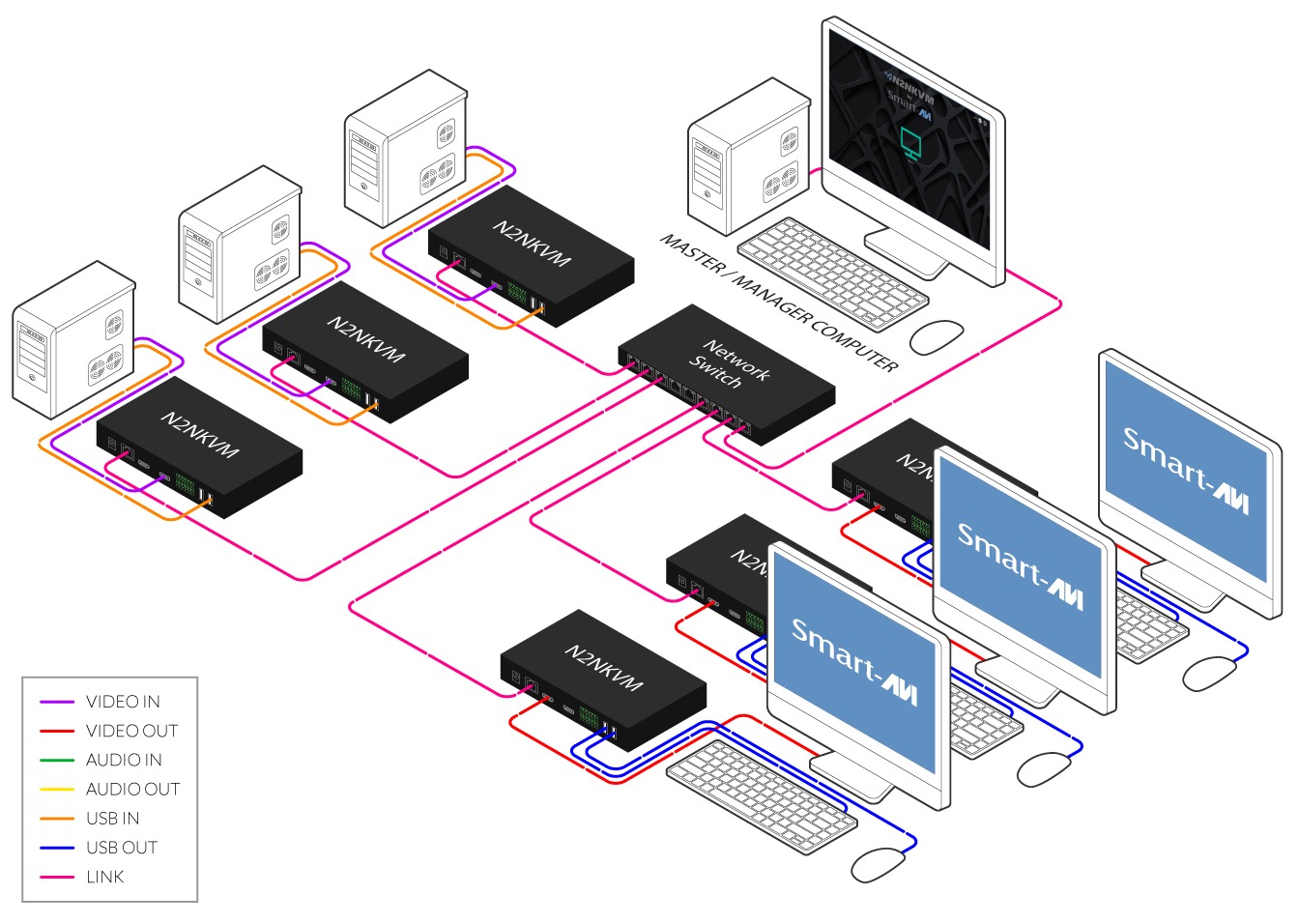

  • Scalable Matrix Switching. Distribute any source to any display across the network with flexible unicast or multicast streaming modes.
  • Scene Presets & Scheduling. Save layouts as scenes and automate switching schedules for control rooms and digital signage applications.
  • User & Permission Management. Create user accounts with customizable access rights for secure multi-user environments.
  • Integrated Audio & USB Extension. Extend stereo audio and USB HID devices alongside HDMI video over a single network infrastructure.
  • Security Operations Centers
  • Command & Control Rooms
  • Corporate AV Systems
  • Broadcast Monitoring
  • Industrial Control Rooms
  • Education & Training Facilities
  • Digital Signage Networks
  • Government & Defense Environments
VIDEO
FormatHDMI 2.0
Video Resolution3840 × 2160 @ 30Hz (4K UHD)
Color Depth24-bit
LatencyLess than 1 ms
Video BandwidthSingle-link 340 MHz (10.2 Gbps)
Input Interface(1) HDMI 19-pin female
Output Interface(1) HDMI 19-pin female
Max Output DistanceUp to 10 ft
EqualizationAutomatic
Input TMDS Signal1.2 Volts [peak-to-peak]
Input DDC Signal5 Volts [peak-to-peak, TTL]
Data Rate1.65 Gbps per color
AUDIO
FormatStereo
Input Interface(1) 3.5mm L/R jack female
Output Interface(1) 3.5mm L/R jack female
USB
Signal TypeUSB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface(2) USB Type B
Keyboard and MouseKeyboard and mouse emulation
SYSTEM
Interface & TypeCAT5 or Single-Mode Fiber
CAT5 Maximum Length100 m (328 feet)
Fiber Cable RequirementsDual
Fiber Maximum LengthSingle mode: 10 km (6.2 miles)
Multi mode: 500 m (1640 feet)
OTHER
Power Adapter100–240 VAC / 12VDC @ 3A/15W
Dimensions8.4" W × 1.4" H × 4.5" D
Weight1.4 lbs
ApprovalsUL, CE, RoHS Compliant
Operating Temp.32–131°F (0–55°C)
Operating Humidity20% to 80% (non-condensing)
Storage Temp.−4–185°F (−20–85°C)
Storage HumidityUp to 95% (No Condensation)
Compliance EMCFCC (Class A), CE (Class A), ICES-003
Environmental ComplianceRoHS2 (CE)
Support Warranty1-year
Part No.ORDERING INFORMATION
N2NKVM-S4K HDMI KVM & AV-over-IP Distribution System. Includes: [N2NKVM & PS12VD3A]
