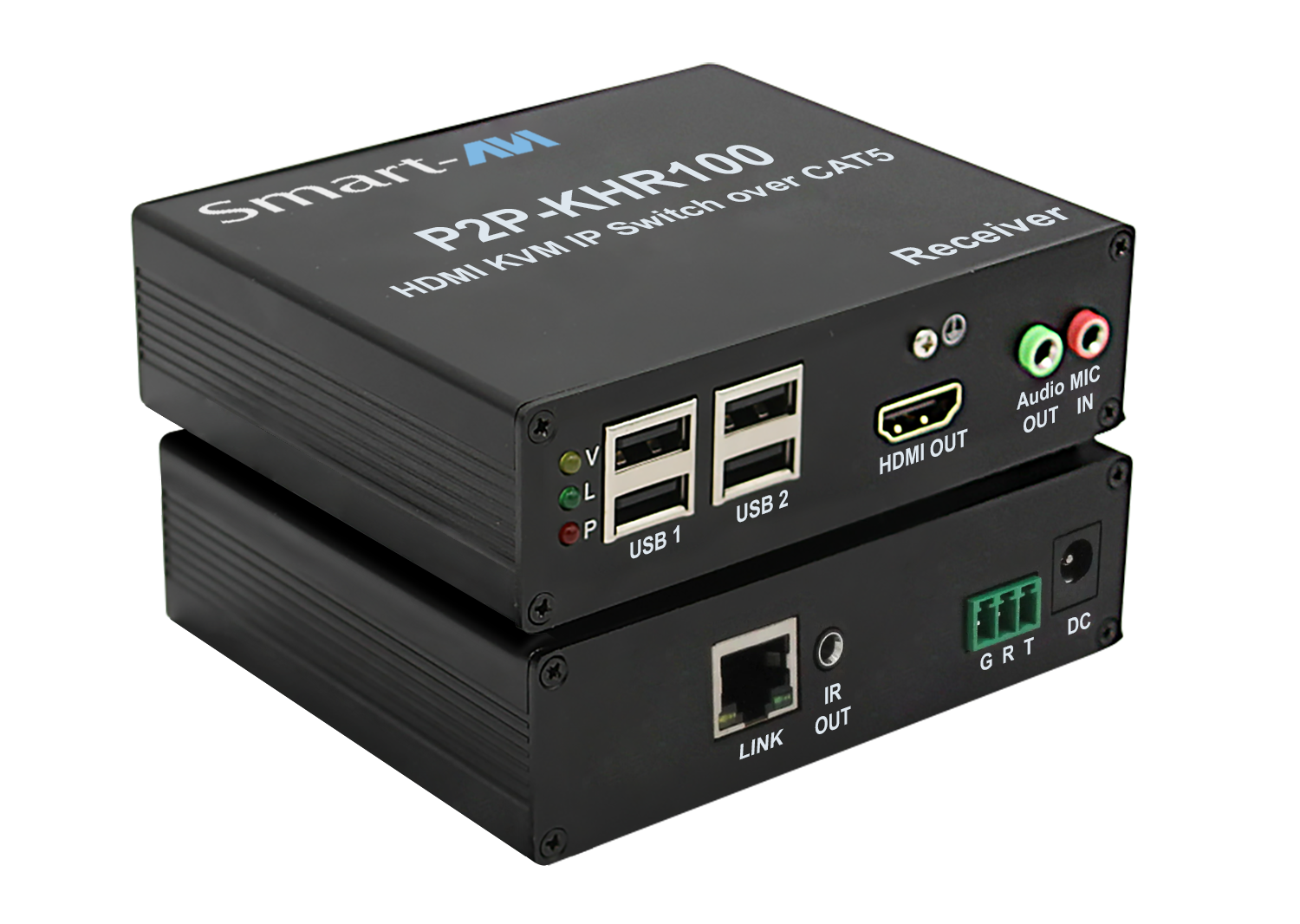

P2P-KHR100

Become a dealer

Point to Point | Single-Head | HDMI CAT5 | Receiver | USB 2.0 | Audio | Optional RS-232

Extend, control, and manage your HDMI-based workstation over IP with the P2P-KHR100. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KHR100 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx.

  • SUPPORTS DVI VIDEO UP TO 4K @ 30HZ OR 1080P @ 60HZ

  • TRANSPARENT USB 2.0 EXTENSION FOR PERIPHERALS

  • ANALOG AUDIO AND RS-232 PASSTHROUGH

  • SELECTABLE DIRECT, MATRIX, AND SAVIGATE MODES VIA WEB INTERFACE

  • SAVIGATE GATEWAY SUPPORT FOR CENTRALIZED MANAGEMENT (SOLD SEPARATELY)

  • UP TO 100M OVER CATX / 10KM OVER FIBER

  • ULTRA-LOW LATENCY JPEG2000 COMPRESSION

  • PLUG-AND-PLAY INSTALLATION

  • EDID LEARNING AND MANAGEMENT

  • AV AND IT EXTENSION FOR SECURE ENVIRONMENTS

  • BROADCAST AND PRODUCTION CONTROL ROOMS

  • MILITARY AND GOVERNMENT OPERATIONS

  • MEDICAL AND INDUSTRIAL COMMAND CENTERS

  • DIGITAL SIGNAGE AND WORKSPACE CENTRALIZATION

Video OUT

  • Format: HDMI 1.4 & HDCP 1.4 Compliant, Video Bandwidth Up To 10.2 Gbps

  • Video Resolution: Up To 4K @ 30 Hz

  • Connector: 1× HDMI (19-Pin Female)



Other

  • Power: 12 V DC, 3 A (Power Supply Included)

  • Reliability (MTBF): 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator)

  • Environmental Operating Temperature: 0°C to 45°C (32°F to 113°F)

  • Environmental Operating Humidity: 10% to 90%, non-condensing

  • ESD Protection: Protection per IEC 61000-4-2 Standard at ±30 kV Air and ±30 kV Contact

  • Support Warranty: 1-Year

  • Certification: CE, FCC, RCM, UL

  • Dimensions: 4.25″W × 3.70″D × 1.6″H

  • Weight: 1 lb (0.45 kg)

P2P-KHT100-S

HDMI Transmitter with Single Head support, Point-to-Point mode over CATx & Fiber connection
[Includes: P2P-KHT100, PS5VD2A]
