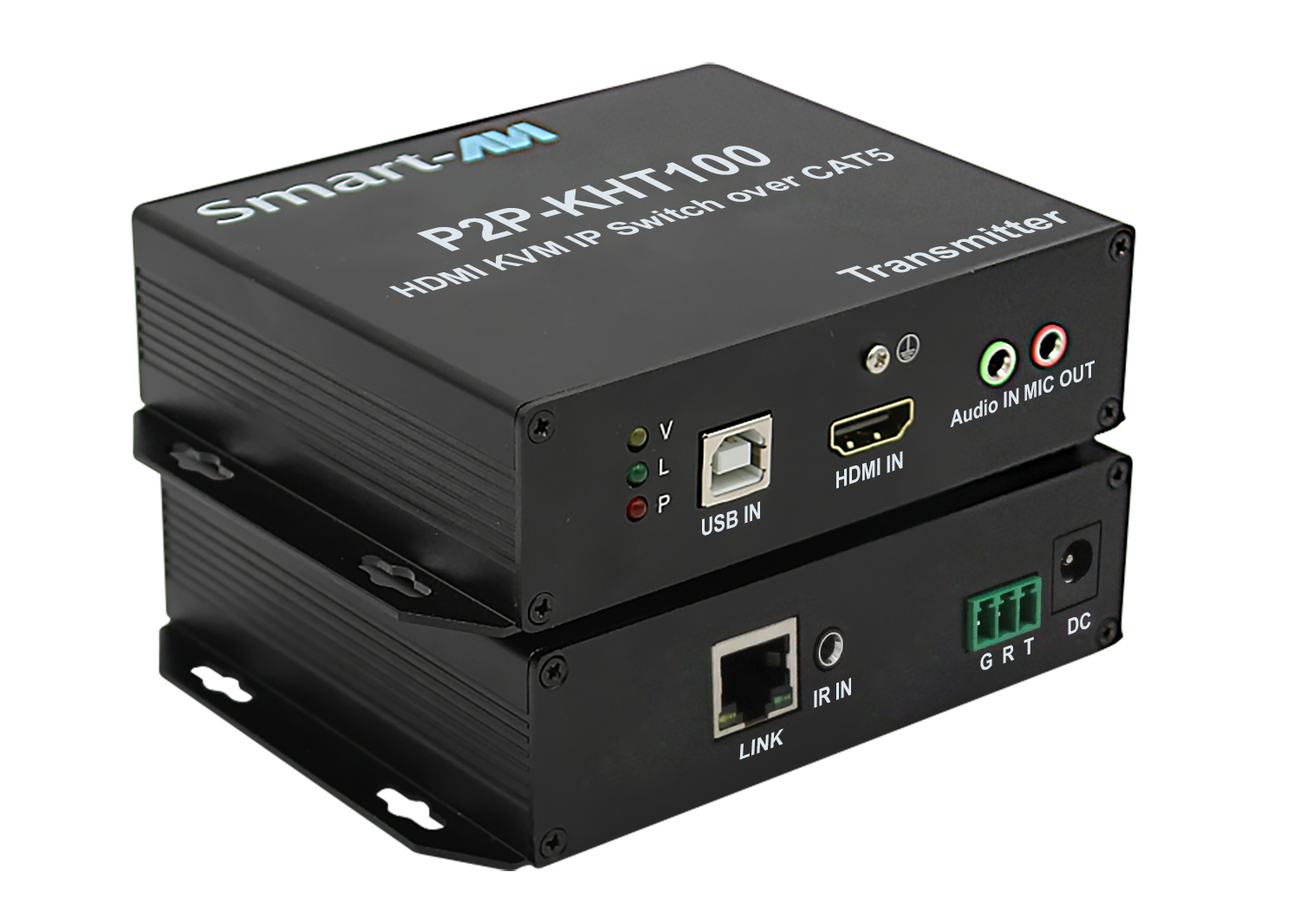

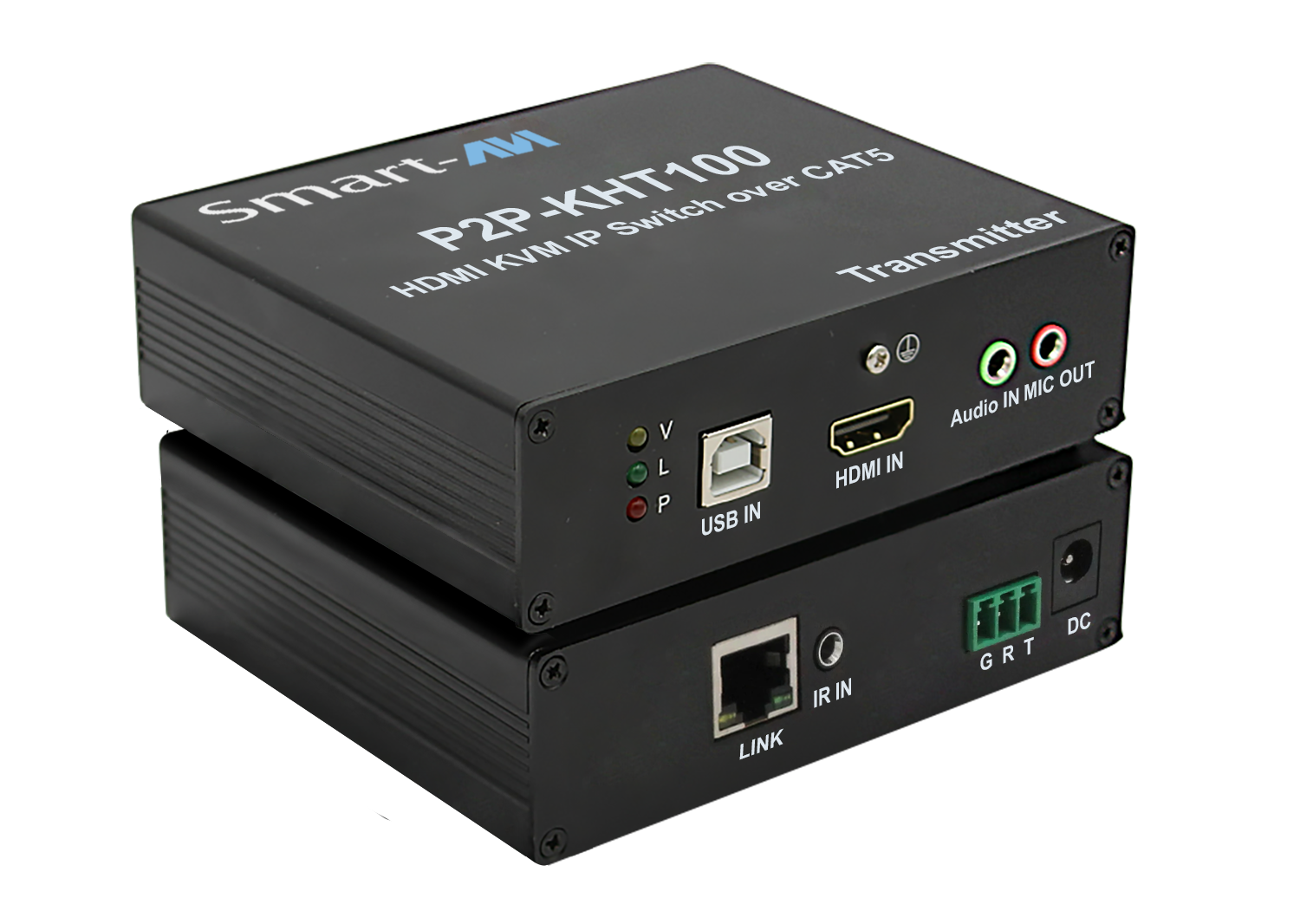

P2P-KHT100
Point to Point | Single-Head | HDMI CAT5 | Transmitter | USB 2.0 | Audio | RS-232

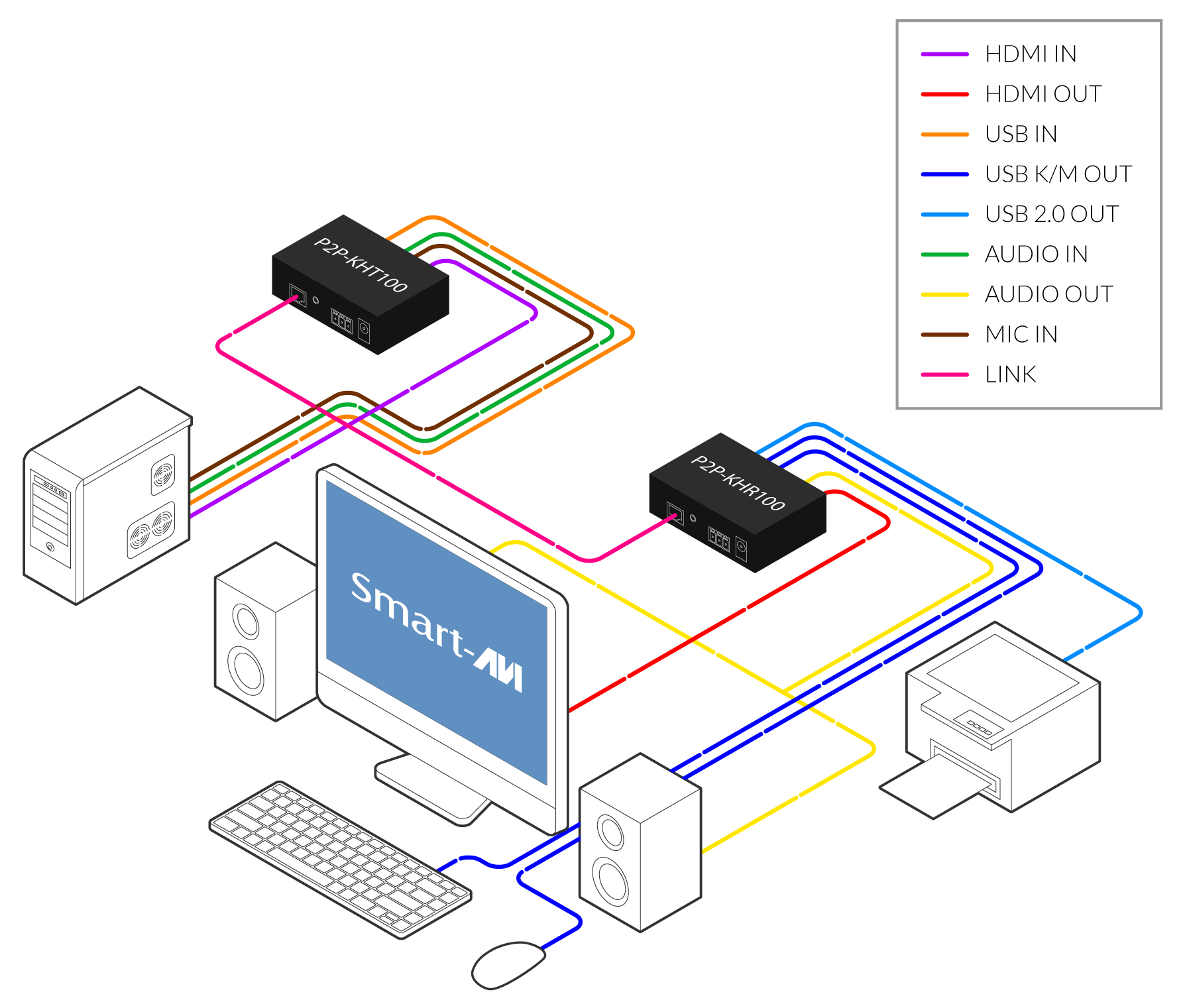

Extend, control, and manage your HDMI-based workstation over IP with the P2P-KHT100. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KHT100 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx
- Supports DVI video up to 4K @ 30HZ or 1080P @ 60HZ
- Transparent USB 2.0 extension for peripherals
- Analog Audio and RS-232 Passthrough
- Selectable Direct, Matrix, and SaviGate modes via web interface
- SaviGate Gateway support for centralized management (SOLD SEPARATELY)
- Up to 100M over CATX / 10KM over Fiber
- Ultra-low Latency JPEG2000 Compression
- Plug-and-Play Installation
- EDID Learning and Management
Use cases for the P2P series include:
- Control Rooms
Scalable, real-time KVM control for 24/7 operations—from point-to-point to 256×32 matrixed systems.
- Broadcast & Production
High-performance IP-based KVM for live production, studios, and post scaling seamlessly to 256 servers.
- Medical & Healthcare
Low-latency, reliable KVM control for clinical and imaging workflows, from single rooms to large matrices.
- Defense & Mission-Critical
Mission-ready KVM architecture delivering scalable, high-performance control for secure and critical environments
Video OUT
- Format: HDMI 1.4 & HDCP 1.4 Compliant, Video Bandwith up to 10.2 Gbps
- Video Resolution: Up To 4k @ 30 Hz, 1080p @ 60 Hz
- Connector: 1× HDMI (19-Pin Female)
System
- Interface: EDID Storage & Emulation
- Transmission Distance: Up To 100 m; LC Connector Fiber Multimode: Up to 500 m; Fiber Single Mode: Up to 10 km
- Compression: Ultra-Low Latency JPEG2000
- RS-232: Pass-Through up to 115200
- Management: Selectable Direct, Matrix, SaviGate Gateway support for centralized management (SOLD SEPARATELY)
Audio
- Format: PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch
- In/Output Interface: 3.5 mm Stereo Aux Socket (Female)
USB
- Out: USB Type B, USB 2.0, USB 1.1, USB 1.0 compatible
- KM: Keyboard & Mouse Emulation
Other
- Power: 12 V DC, 3 A (Power Supply Included)
- Reliability: (MTBF) 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator)
- Environmental Operating Temperature: 0 C to 45 C (32 F to 113 F)
- Environmental Operating Humidity: 10 % to 90 %, non-condensing
- ESD Protection: Protection per IEC 61000-4-2 Standard at ±30 kV Air and ±30 kV Contact
- Support Warranty 1-Year
- Certification: CE, FCC, RCM, UL
- Dimensions: 9.5″W x 5.25 D x 1.70 H
- Weight: 1.41lbs and 0.63kg
P2P-KHT100-S
HDMI Transmitter with Single Head support, Point-to-Point mode over CATx & Fiber connection
[Includes: P2P-KHT100, PS5VD2A]
