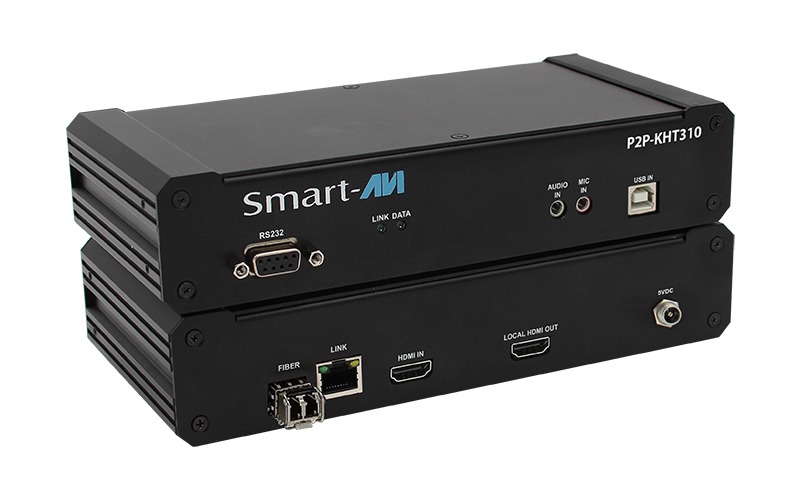

P2P-KHT310
Point to Point | Single-Head | HDMI CAT5 | Fiber Transmitter | USB 2.0 | Audio | RS-232 local loop
Extend, control, and manage your HDMI-based workstation over IP with the P2P-KHT300. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KHT300 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx or Fiber.
- Supports DVI video up to 4K @ 30HZ or 1080P @ 60HZ
- Transparent USB 2.0 extension for peripherals
- Analog Audio and RS-232 Passthrough
- Selectable Direct, Matrix, and SaviGate modes via web interface
- SaviGate Gateway support for centralized management (SOLD SEPARATELY)
- Up to 100M over CATX / 10KM over Fiber
- Ultra-low Latency JPEG2000 Compression
- Plug-and-Play Installation
- EDID Learning and Management
Use cases for the P2P series include:
- Control Rooms
Scalable, real-time KVM control for 24/7 operations—from point-to-point to 256×32 matrixed systems.
- Broadcast & Production
High-performance IP-based KVM for live production, studios, and post scaling seamlessly to 256 servers.
- Medical & Healthcare
Low-latency, reliable KVM control for clinical and imaging workflows, from single rooms to large matrices.
- Defense & Mission-Critical
Mission-ready KVM architecture delivering scalable, high-performance control for secure and critical environments
Video OUT
- Format: HDMI 1.4 & HDCP 1.4 Compliant, Video Bandwidth Up To 10.2 Gbps
- Video Resolution: Up To 4K @ 30 Hz
- Connector: 1× HDMI (19-Pin Female)
Other
- Power: 12 V DC, 3 A (Power Supply Included)
- Reliability (MTBF): 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator)
- Environmental Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Environmental Operating Humidity: 10% to 90%, non-condensing
- ESD Protection: Protection per IEC 61000-4-2 Standard at ±30 kV Air and ±30 kV Contact
- Support Warranty: 1-Year
- Certification: CE, FCC, RCM, UL
- Dimensions: 9.5″W × 5.25″D × 1.70″H
- Weight: 1.41 lbs (0.63 kg)
P2P-KDR300-S
Point-to-point Dual-Head DP CAT5 & Fiber Receiver with USB 2.0, Audio and RS-232
[Includes: P2P-KDR300, PS12VD3A]
