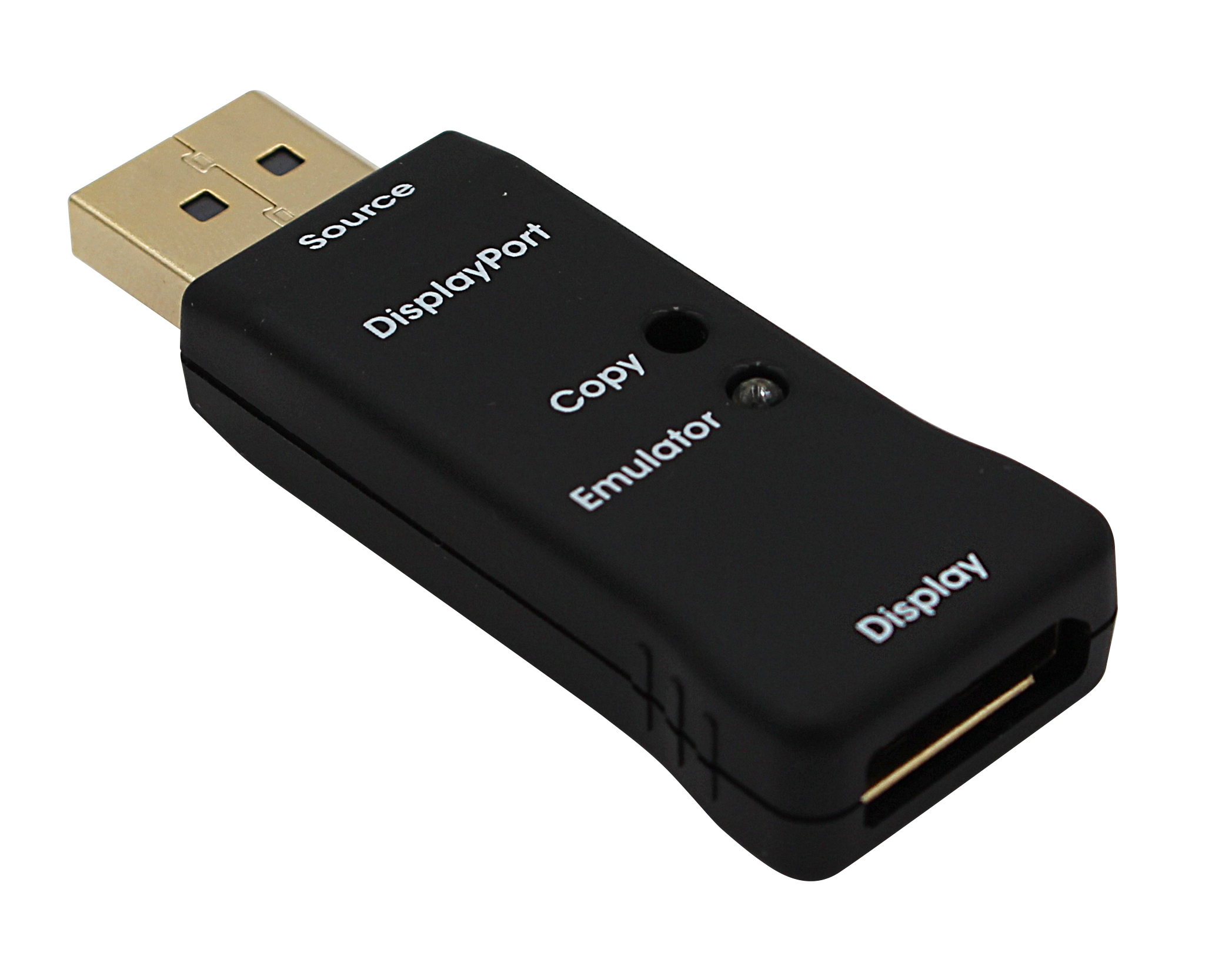

SM-EDP
A DisplayPort EDID emulator that captures and stores a monitor’s EDID so the source device always detects the correct display capabilities. It supports DisplayPort 1.1/1.2 and resolutions up to 3840×2160 @ 30 Hz, and draws power directly from the DisplayPort source — no external power required.
- Designed to emulate and store the EDID of a video display
- DisplayPort 1.1 / 1.2 Complient
- Supports HDTV resolution up to 4Kx2K@60Hz
- Supports Learning and Emulation mode
- Slide switch designed to select Default (EDID) or Emulation (COPY)
- LEDs indicator built-in to easily identify the EDID mode
- Include default resolution at 1080p
- Powered from DisplayPort source device without selfpower required
| VIDEO | |
|---|---|
| Format | DisplayPort 1.1 and 1.2 |
| Maximum Pixel Clock | 275 MHz |
| Input Interface | DisplayPort (male) |
| Output Interface | DisplayPort (female) |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 15 ft. |
| Output Cable Length | Up to 15 ft. |
| OTHER | |
| Dimensions | 2.8” x 1” x .33” |
| Weight | .7 oz |
| Approvals | UL, CE, ROHS Compliant |
| Environmental Operating Temperature | +32 to +104°F (0 to +40°C) |
| Environmental Operating Humidity | 20% to 80% (non condensing) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
| PART NO. | Description |
|---|---|
| SM-EDP-S | DP EDID Emulator. Includes: [SM-EDP] |
