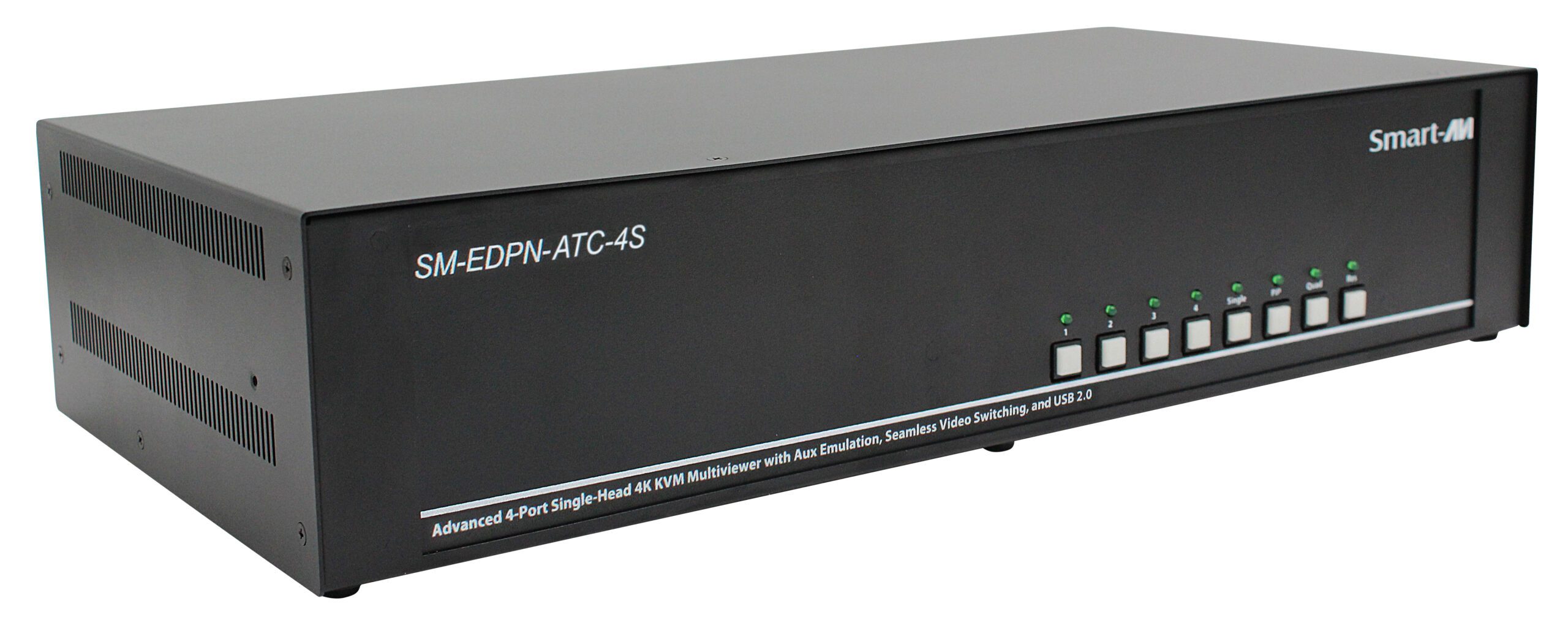

SM-EDPN-ATC-4S
4-Port | Single-Head | KVM Switch | 3840×2160 | @60 Hz
Seamless Single-Head DisplayPort KVM Switch for Air Traffic Control
Designed for 24/7 operational reliability, this high-performance KVM solution enables air traffic controllers to securely manage multiple critical systems including radar, flight data, surveillance, and weather platforms from a single, unified workstation with specialized ATC resolutions such 2048×2048 @ 60hz.

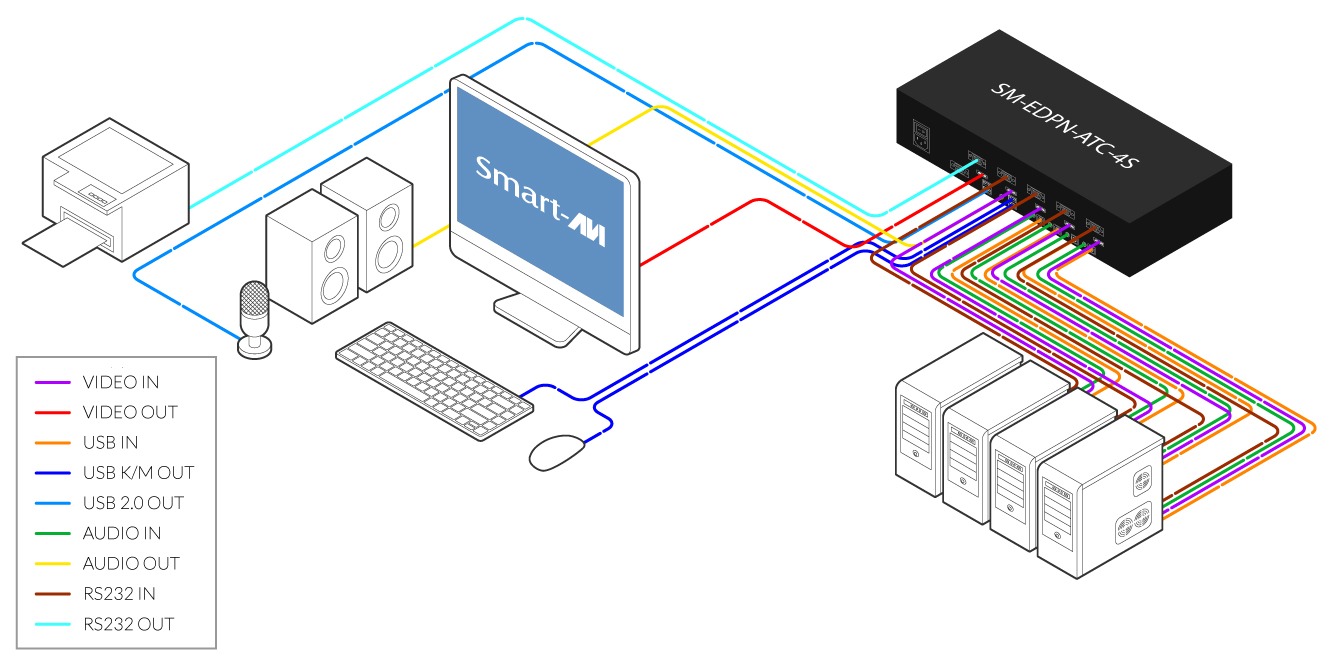

By centralizing IT hardware outside the control room, the system reduces heat, noise, and clutter, while delivering real-time, zero-disruption access to all connected system that require RS-232.
- Supports specialized ATC resolutions such as 2048×2048.
- EDID Video Emulation ensures monitor layout stays consistent when switching.
- Secure architecture for safety-critical environments.
- USB keyboard and mouse emulation.
- Additional USB 2.0 device support (printers, cameras, etc.).
- Stereo audio support.

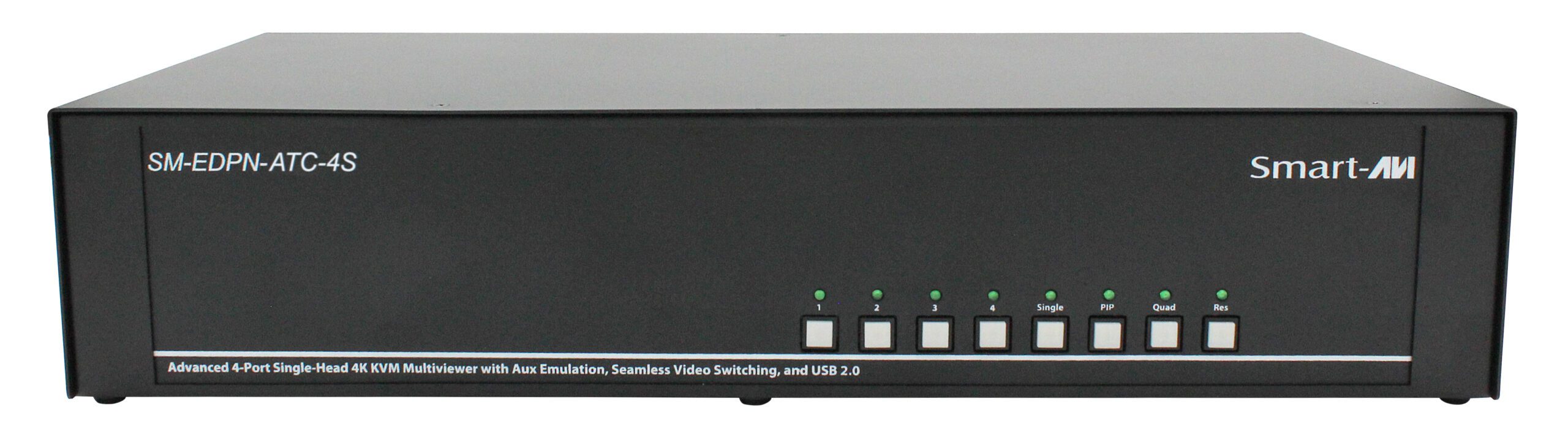

- Front panel buttons for manual port selection.
- Hot-key support for quick switching.
- RS-232 serial control.
- Asynchronous switching of USB/audio and video.
- Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc…
Designed for ATC Operation:
Uninterrupted visualization.
Precise image timing and color accuracy.
Instant system switching without loss of situational awareness.
| Video | ||
|---|---|---|
| Format | DisplayPort1.2 | |
| Maximum Pixel Clock | 594 MHz | |
| Input Interface | SM-EDPN-ATC-4S | (8) DisplayPort 20-pin (female) |
| Output Interface | SM-EDPN-ATC-4S | (2) DisplayPort 20-pin (female) |
| Resolution & Refresh Rate | 3840 x 2160 @ 60 Hz | |
| Color Capability | 24-bit True Color (8-bits per channel) | |
| DDC | 5 volts p-p (TTL) | |
| Chroma Sampling | 4:4:4 (full color), 4:2:2, or 4:2:0 | |
| Input Equalization | Automatic | |
| Input Cable Length | Up to 20 ft | |
| Output Cable Length | Up to 20 ft | |
| Data Rate | 1.65 Gbps per color | |
| Bandwidth (HBR2) | Up to 21.6 Gbps total (5.4 Gbps per lane) | |
| EDID Support | Full emulation & preloaded profiles | |
| Control | ||
| Front Panel | Push Buttons with LED Indicators | |
| Hot Keys | Via Keyboard | |
| RS-232 | ||
| Connectors | 4 DB9 female. One male | |
| Speed | Up to 115,000 bps | |
| RS-232 Support | Full Duplex | |
| USB | ||
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub | |
| Input Interface | (4) USB Type B (female) | |
| Output Interface | (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent | |
| Emulation | Keyboard and Mouse | |
| Audio | ||
| Input Interface | (4) 3.5 mm Stereo Audio | |
| Output Interface | (1) 3.5 mm Stereo Audio | |
| Impedance | 600 Ohm | |
| Frequency Response | 20 Hz to 20 kHz | |
| Nominal Level | 0-1.0 V | |
| Common Mode | Rejection at 60 dB | |
| Other | ||

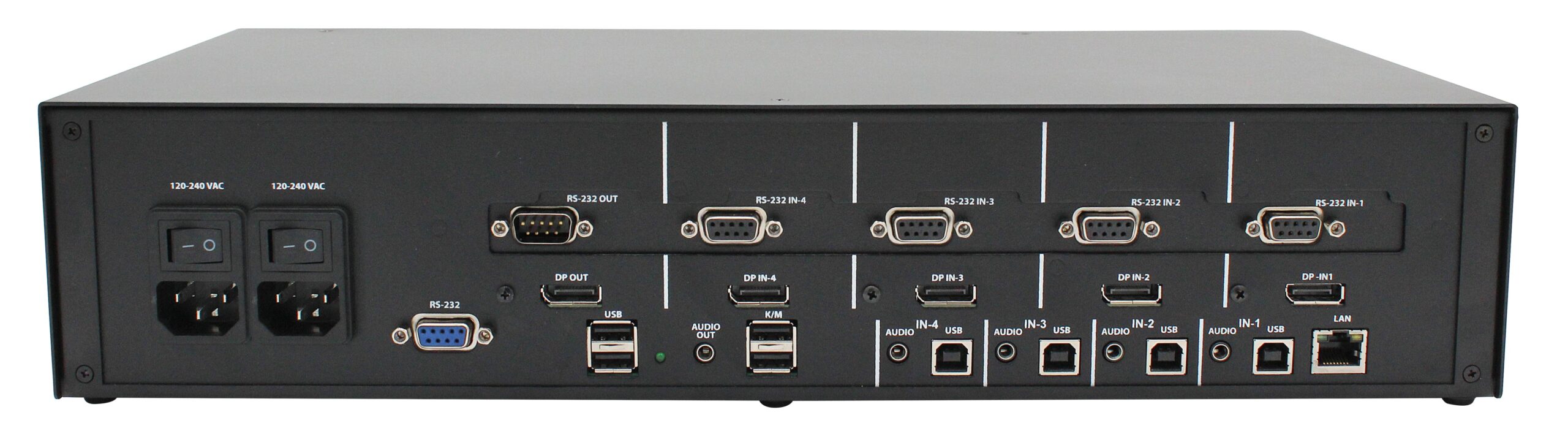

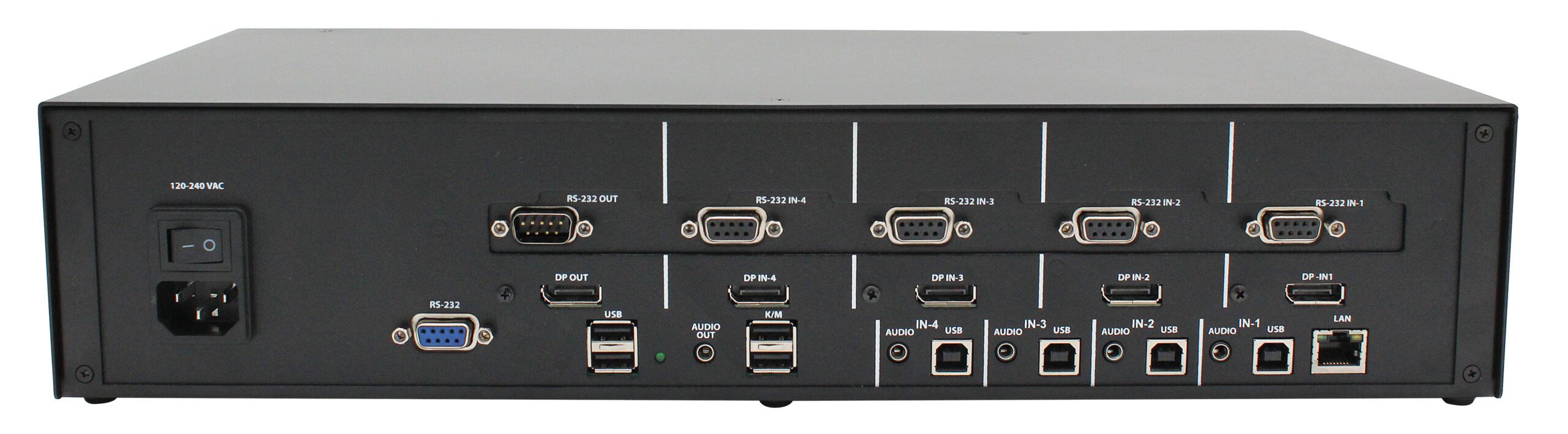

| Power Adapter | External 120-240 VAC, Internal PSU | |
| Dimensions | 17.0” W × 2.7” H × 8.69” D | |
| Weight | 4.4 lbs | |
| Approvals | UL, CE, ROHS Compliant | |
| Operating Temperature | +32 to +104°F (0 to +40°C) | |
| Storage Temperature | -4 to 140°F (-20 to +60°C) | |
| Humidity | Up to 80% (No Condensation) | |
SM-EDPN-ATC-4S

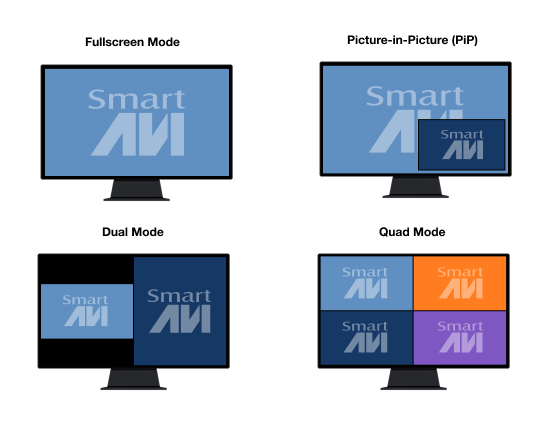

4-Port Single-Head 4k KVM Multiviewer
[Includes: SM-EDPN-ATC-4S, CCPWR06]
