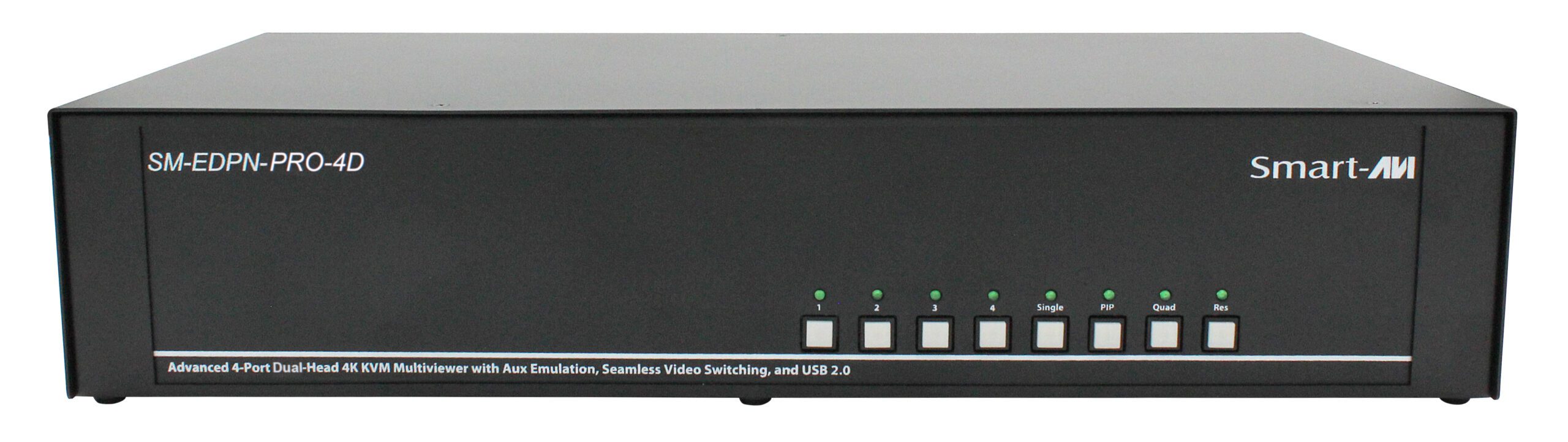

SM-EDPN-PRO-4D
4-Port | Dual-Head | KVM Switch | 3840×2160 | @60 Hz
Seamless DisplayPort KVM Switch for Radiology & Medical Imaging
Designed for diagnostic workstations and reading rooms, this solution enables radiologists to securely control multiple imaging systems such as PACS, RIS, VNA, CT, MRI, ultrasound, and advanced visualization servers from a single, unified workstation, without compromising image quality or workflow continuity with specialized medical imaging resolutions such as 2048×2048 @ 60Hz.
By relocating IT hardware outside the reading room, the system reduces heat, noise, and workstation clutter while maintaining real-time access to multiple systems. Seamless switching shortens time between applications, supporting faster reads, sustained focus, improved diagnostic accuracy, and higher daily patient volume.
- Seamless switching with no screen blanking or re-synchronization.
- Supports specialized medical imaging resolutions such as 2048×2048.
- 4K @ 60Hz DisplayPort with full pixel integrity.

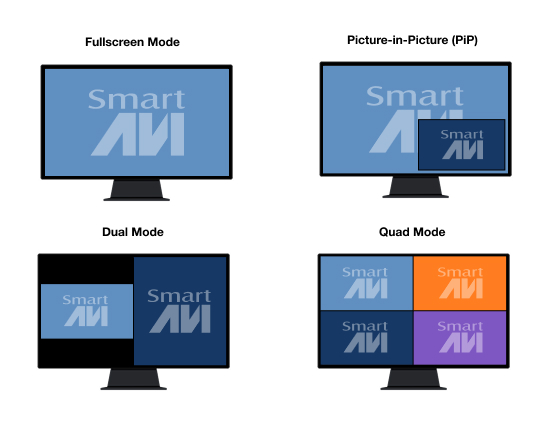

- Integrated Multiviewer for simultaneous review of multiple imaging sources.
- Ultra low latency for preservation of natural cursor and image response.
- Secure, isolated architecture for regulated healthcare environments.
- Continuous image display during system switching.
- No loss of grayscale fidelity or spatial accuracy.
- Immediate access to prior studies and parallel systems.
- Asynchronous switching of USB/audio and video.
- Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc
Optimized for Radiology Workflows:
- Hospital Radiology Departments
- Outpatient Diagnostic Imaging Centers
- Breast Imaging & Women’s Imaging Suites
- Teleradiology & Remote Reading Operations
- Academic Medical Centers & Teaching Hospitals
- Advanced Visualization & 3D Imaging Labs
- Cardiology Imaging & Cath Lab Support
- Interventional Radiology & Hybrid Procedure Rooms
- Emergency & Trauma Imaging Environments
- Oncology Imaging & Longitudinal Review Centers
- Enterprise Imaging Networks & Multi-Site Healthcare Systems
- Government, VA & Military Medical Facilities
| Video | ||
|---|---|---|
| Format | DisplayPort1.2 | |
| Maximum Pixel Clock | 594 MHz | |
| Input Interface | SM-EDPN-PRO-4D | (8) DisplayPort 20-pin (female) |
| Output Interface | SM-EDPN-PRO-4D | (2) DisplayPort 20-pin (female) |
| Resolution | 3840 x 2160 @ 60 Hz | |
| Color Mode | 24-bit | |
| DDC | 5 volts p-p (TTL) | |
| Input Equalization | Automatic | |
| Input Cable Length | Up to 20 ft | |
| Output Cable Length | Up to 20 ft | |
| Data Rate | 1.65 Gbps per color | |
| EDID Support | Full emulation & preloaded profiles | |
| Control | ||
| Front Panel | Push Buttons with LED Indicators | |
| LAN | RJ45 | |
| Hot Keys | Via Keyboard | |
| USB | ||
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub | |
| Input Interface | (4) USB Type B (female) | |
| Output Interface | (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent | |
| Audio | ||
| Input Interface | (4) 3.5 mm Stereo Audio | |
| Output Interface | (1) 3.5 mm Stereo Audio | |
| Impedance | 600 Ohm | |
| Frequency Response | 20 Hz to 20 kHz | |
| Nominal Level | 0-1.0 V | |
| Common Mode | Rejection at 60 dB | |
| Other | ||
| Power Adapter | External 120-240 VAC, Internal PSU | |
| Dimensions | 17.0” W × 2.7” H × 8.69” D | |
| Weight | 4.4 lbs | |
| Approvals | UL, CE, ROHS Compliant | |
| Operating Temperature | +32 to +104°F (0 to +40°C) | |
| Storage Temperature | -4 to 140°F (-20 to +60°C) | |
| Humidity | Up to 80% (No Condensation) | |
| Emulation | Keyboard and Mouse | |
SM-EDPN-PRO-4D
4-Port Dual-Head 4k KVM Multiviewer
[Includes: SM-EDPN-PRO-4D, PS12VD3A]
