SM-EDPN-PRO-4Q
8-Port | DisplayPort | KVM Switch | EDID | UHD | 3840×2160 | @60 Hz
Seamless DisplayPort KVM Switch for Radiology & Medical Imaging
Designed for diagnostic workstations and reading rooms, this solution enables radiologists to securely control multiple imaging systems such as PACS, RIS, VNA, CT, MRI, ultrasound, and advanced visualization servers from a single, unified workstation, without compromising image quality or workflow continuity with specialized medical imaging resolutions such as 2048×2048 @ 60Hz.
By centralizing IT hardware outside the reading room, the system reduces heat, noise, and physical clutter, while delivering instant, seamless access to multiple systems in real time supporting faster reads, improved focus, and higher diagnostic confidence.
- Dual-head DisplayPort video support (2 video outputs per channel).
- Supports resolutions up to 3840 × 2160 @ 60 Hz per head.
- EDID Video Emulation ensures monitor layout stays consistent when switching.
- USB keyboard and mouse emulation.
- Additional USB 2.0 device support (printers, cameras, etc.).
- Stereo audio support.

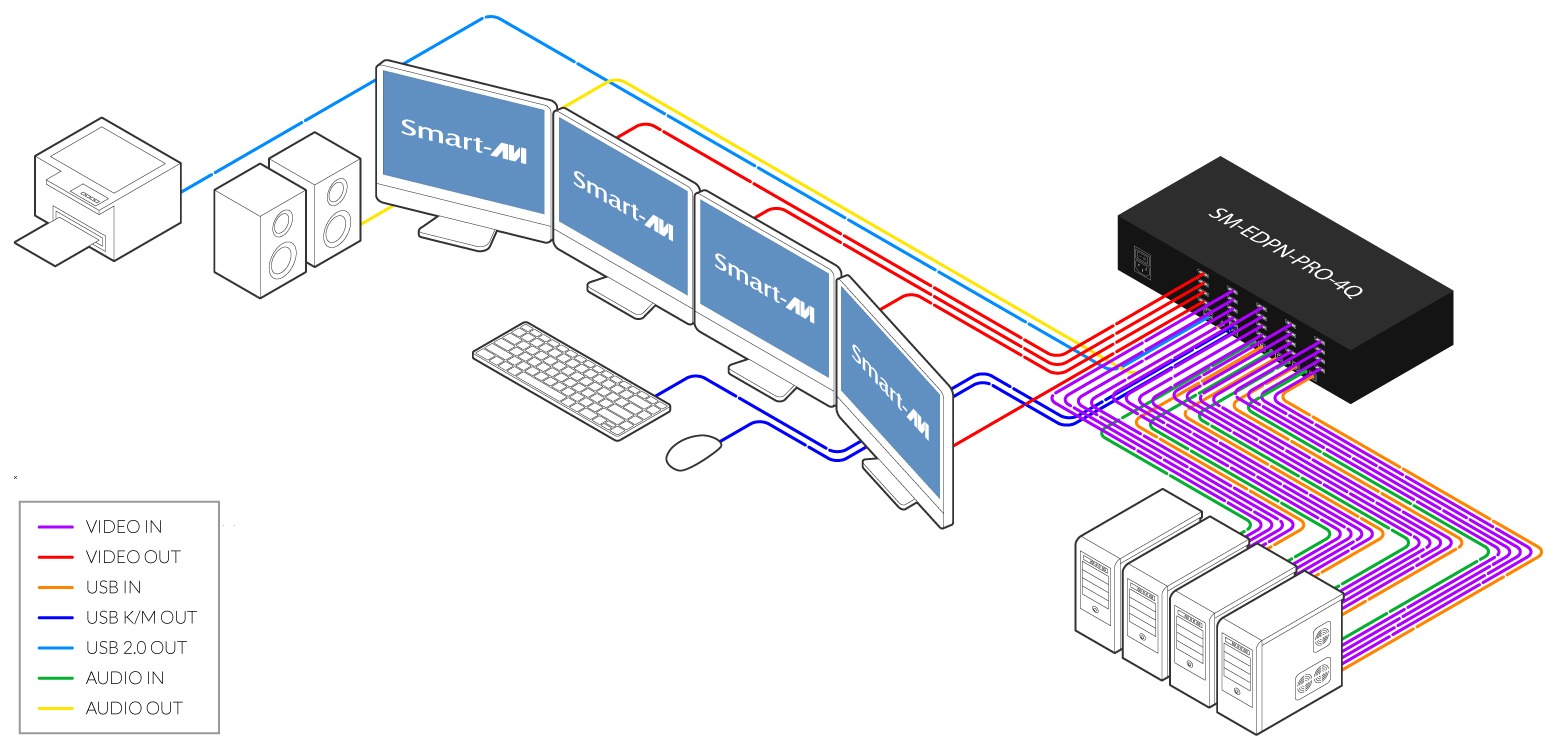

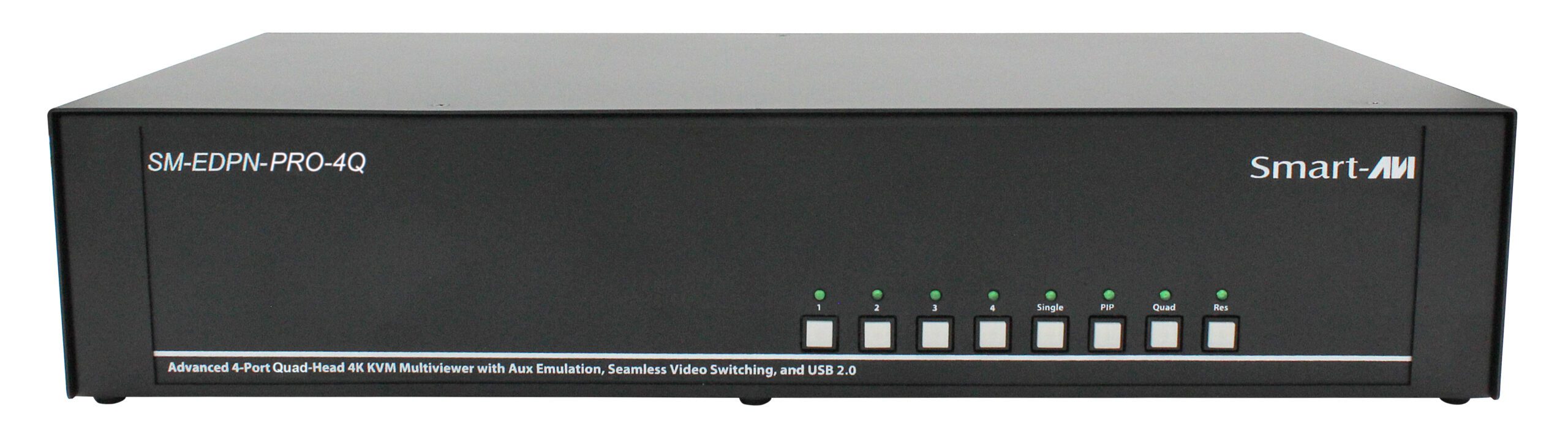

- Front panel buttons for manual port selection.
- Hot-key support for quick switching.
- RS-232 serial control.
- Flash upgradeable firmware.
- Asynchronous switching of USB/audio and video.
- Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc
| Video | ||
|---|---|---|
| Format | DisplayPort1.2 | |
| Maximum Pixel Clock | 594 MHz | |

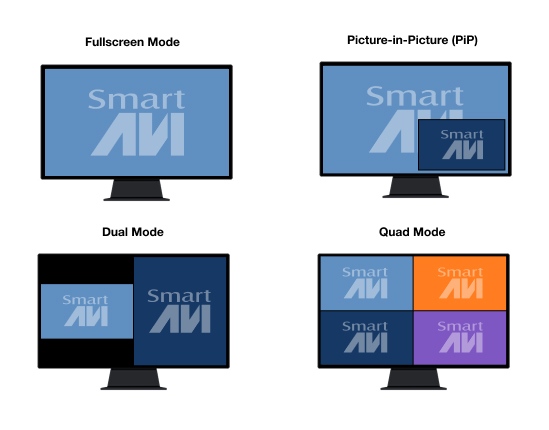

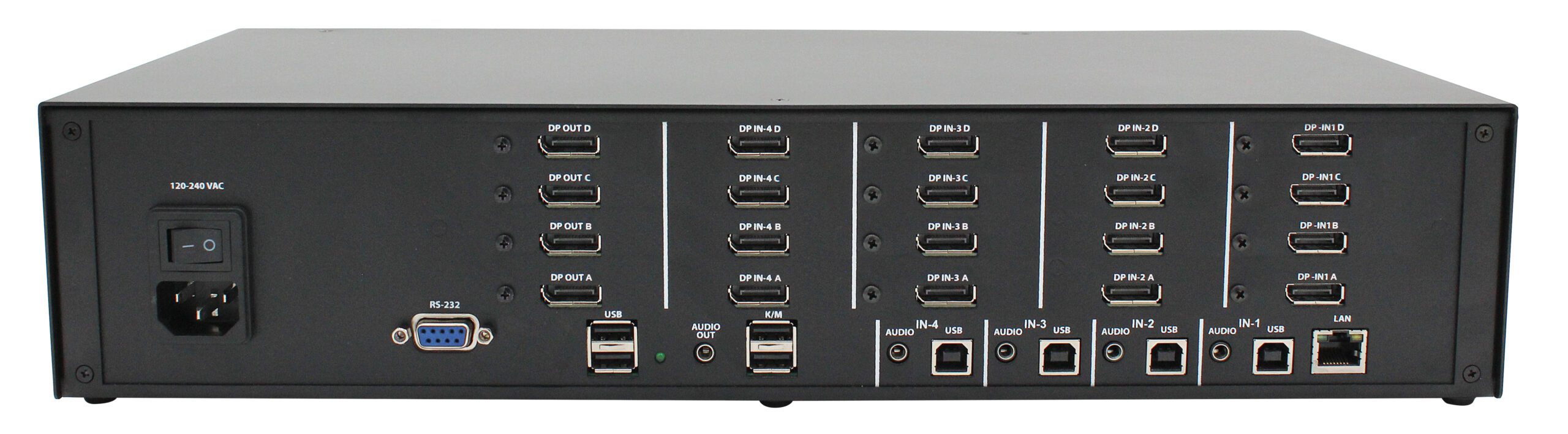

| Input Interface | SM-EDPN-PRO-4Q | (16) DisplayPort 20-pin (female) |
| Output Interface | SM-EDPN-PRO-4Q | (4) DisplayPort 20-pin (female) |
| Resolution | 3840 x 2160 @ 60 Hz | |
| Color Mode | 24-bit | |
| DDC | 5 volts p-p (TTL) | |
| Input Equalization | Automatic | |
| Input Cable Length | Up to 20 ft | |
| Output Cable Length | Up to 20 ft | |
| Data Rate | 1.65 Gbps per color | |
| EDID Support | Full emulation & preloaded profiles | |
| Audio | ||
| Input Interface | (4) 3.5 mm Stereo Audio | |
| Output Interface | (1) 3.5 mm Stereo Audio | |
| Impedance | 600 Ohm | |
| Frequency Response | 20 Hz to 20 kHz | |
| Nominal Level | 0-1.0 V | |
| Common Mode | Rejection at 60 dB | |
| Control | ||
| Front Panel | Push Buttons with LED Indicators | |
| LAN | RJ45 | |
| Hot Keys | Via Keyboard | |
| USB | ||
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub | |
| Input Interface | (4) USB Type B (female) | |
| Output Interface | (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent | |
| Other | ||
| Power Adapter | External 120-240 VAC, Internal PSU | |
| Dimensions | 17.0” W × 2.7” H × 8.69” D | |
| Weight | 4.4 lbs | |
| Approvals | UL, CE, ROHS Compliant | |
| Operating Temperature | +32 to +104°F (0 to +40°C) | |
| Storage Temperature | -4 to 140°F (-20 to +60°C) | |
| Humidity | Up to 80% (No Condensation) | |
| Emulation | Keyboard and Mouse | |

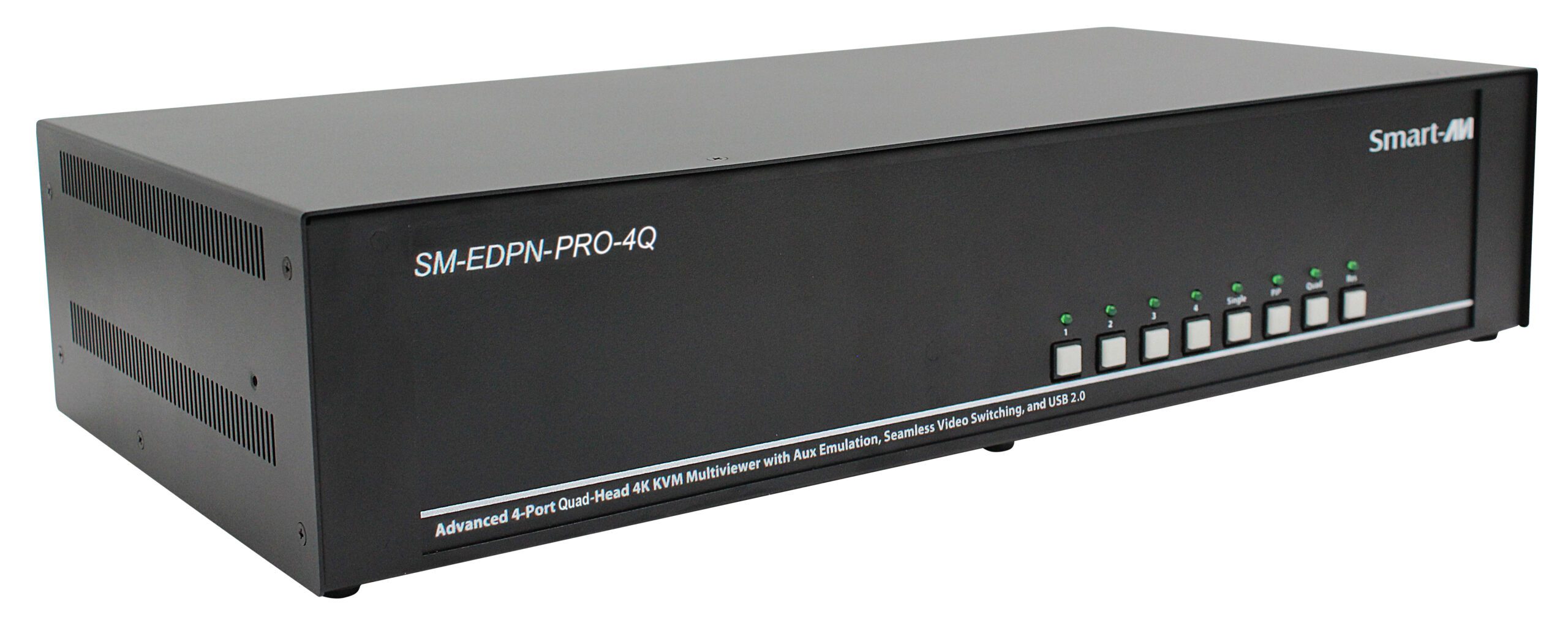

SM-EDPN-PRO-4Q
4-Port Dual-Head 4k KVM Multiviewer
[Includes: SM-EDPN-PRO-4Q, PS12VD3A]
