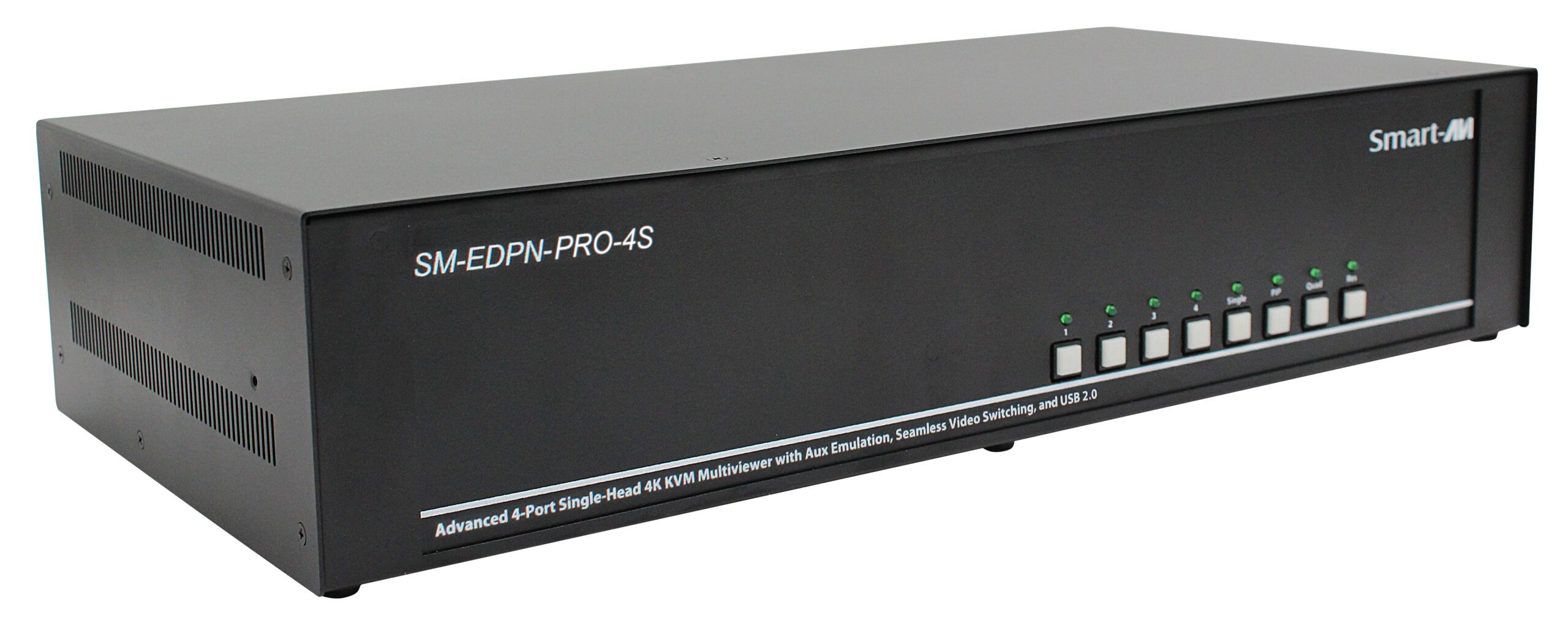

SM-EDPN-PRO-4S
4-Port | Single-Head | KVM Switch | 3840×2160 | @60 Hz
Seamless DisplayPort KVM Switch for Radiology & Medical Imaging
Designed for diagnostic workstations and reading rooms, this solution enables radiologists to securely control multiple imaging systems such as PACS, RIS, VNA, CT, MRI, ultrasound, and advanced visualization servers from a single, unified workstation, without compromising image quality or workflow continuity with specialized medical imaging resolutions such as 2048×2048 @ 60Hz.
By centralizing IT hardware outside the reading room, the system reduces heat, noise, and physical clutter, while delivering instant, seamless access to multiple systems in real time supporting faster reads, improved focus, and higher diagnostic confidence.
- Seamless switching with no screen blanking or re-synchronization.
- Supports specialized medical imaging resolutions such as 2048×2048.
- 4K @ 60Hz DisplayPort with full pixel integrity.

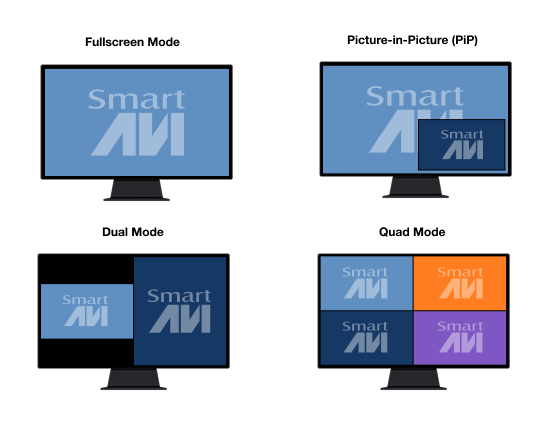

- Integrated Multiviewer for simultaneous review of multiple imaging sources.
- Ultra low latency for preservation of natural cursor and image response.
- Secure, isolated architecture for regulated healthcare environments.
- Continuous image display during system switching.
- No loss of grayscale fidelity or spatial accuracy.
- Immediate access to prior studies and parallel systems.
- Asynchronous switching of USB/audio and video.
- Compatible with Windows, Mac, Linux, Sun, Unix, DOS, etc
Optimized for Radiology Workflows:
- Continuous image display during system switching.
- No loss of grayscale fidelity or spatial accuracy.
- Immediate access to prior studies and parallel systems.
| Video | ||
|---|---|---|
| Format | DisplayPort1.2 | |
| Maximum Pixel Clock | 594 MHz | |

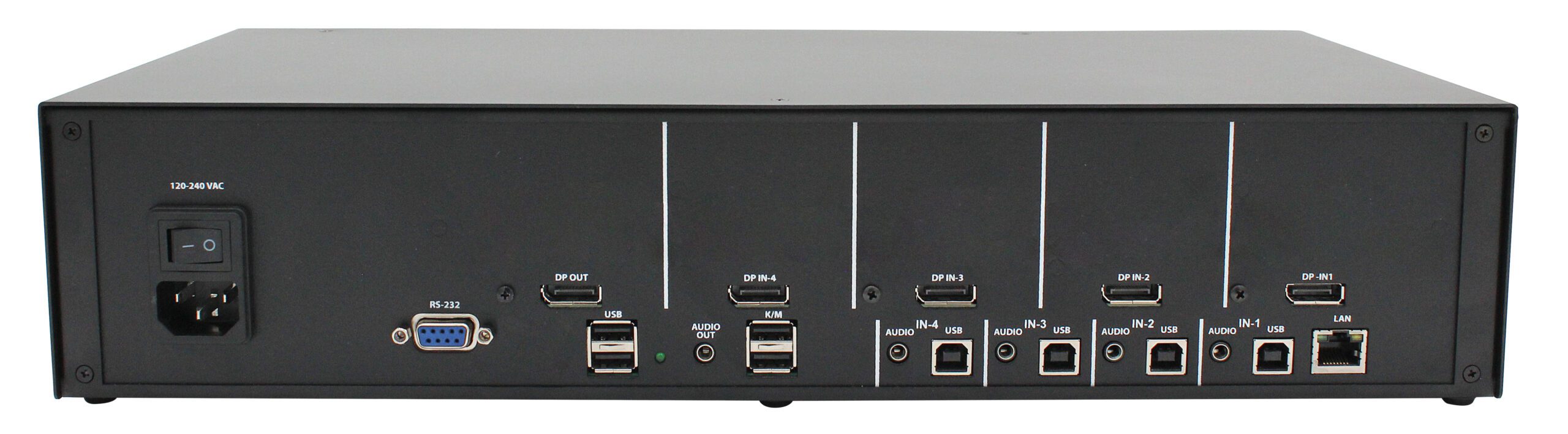

| Input Interface | SM-EDPN-PRO-4S | (4) DisplayPort 20-pin (female) |
| Output Interface | SM-EDPN-PRO-4S | (1) DisplayPort 20-pin (female) |
| Resolution | 3840 x 2160 @ 60 Hz | |
| Color Mode | 24-bit | |
| DDC | 5 volts p-p (TTL) | |
| Input Equalization | Automatic | |
| Input Cable Length | Up to 20 ft | |
| Output Cable Length | Up to 20 ft | |
| Data Rate | 1.65 Gbps per color | |
| EDID Support | Full emulation & preloaded profiles | |
| Audio | ||
| Input Interface | (4) 3.5 mm Stereo Audio | |
| Output Interface | (1) 3.5 mm Stereo Audio | |
| Impedance | 600 Ohm | |
| Frequency Response | 20 Hz to 20 kHz | |
| Nominal Level | 0-1.0 V | |
| Common Mode | Rejection at 60 dB | |
| Control | ||
| Front Panel | Push Buttons with LED Indicators | |
| LAN | RJ45 | |
| Hot Keys | Via Keyboard | |
| USB | ||
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub | |
| Input Interface | (4) USB Type B (female) | |
| Output Interface | (2) USB Type A (female) for K/M emulation; (2) for USB 2.0 Transparent | |
| Other | ||
| Power Adapter | External 120-240 VAC, Internal PSU | |
| Dimensions | 17.0” W × 2.7” H × 8.69” D | |
| Weight | 4.4 lbs | |
| Approvals | UL, CE, ROHS Compliant | |
| Operating Temperature | +32 to +104°F (0 to +40°C) | |
| Storage Temperature | -4 to 140°F (-20 to +60°C) | |
| Humidity | Up to 80% (No Condensation) | |
| Emulation | Keyboard and Mouse | |
SM-EDPN-PRO-4S
4-Port Single-Head 4k KVM Multiviewer
[Includes: SM-EDPN-PRO-4S, PS12VD3A]
