SM-UVH-2D

Become a dealer

2-Port | Dual-Head | DP & HDMI KVM Switch | USB 2.0 & AUX Emulation

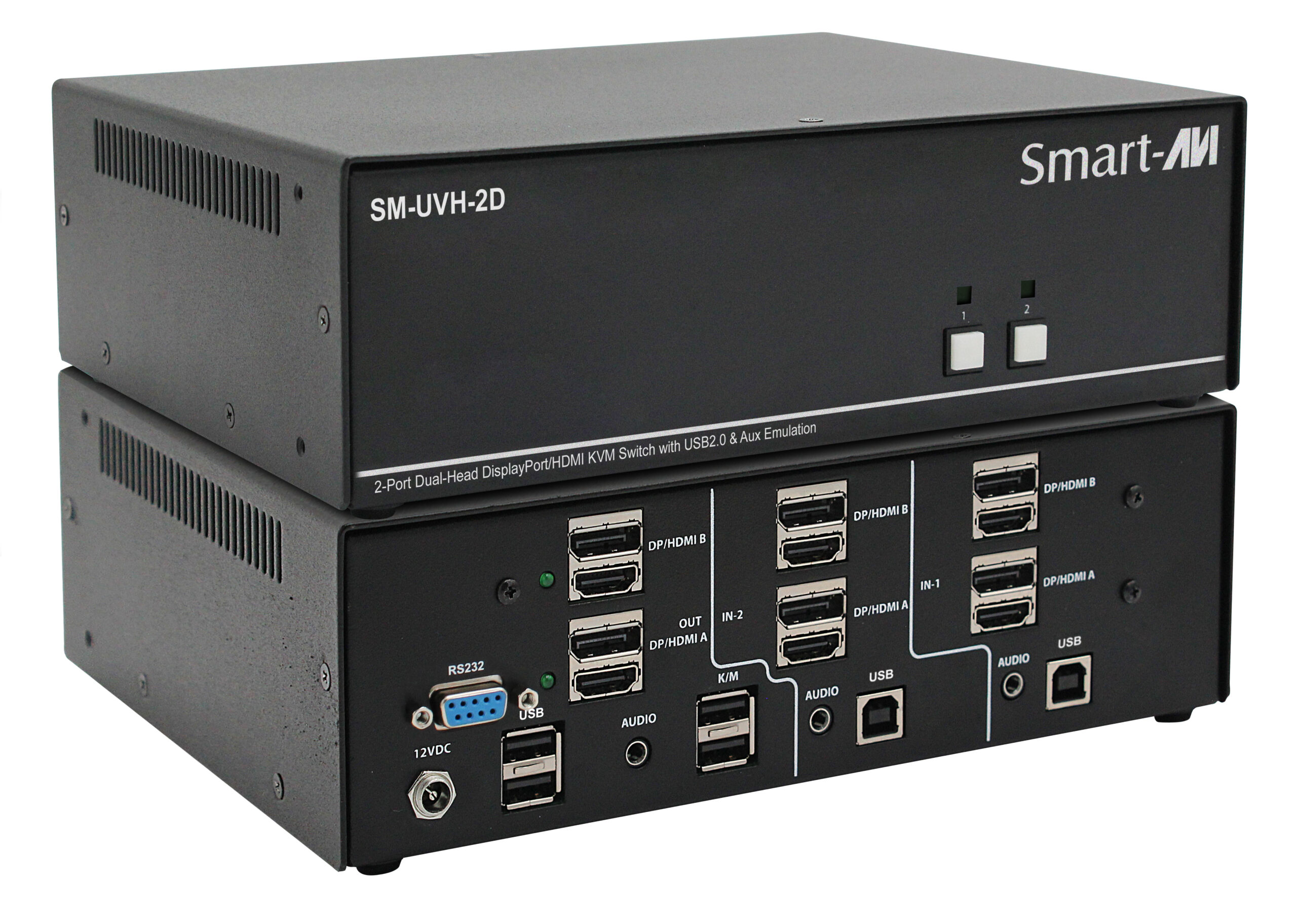

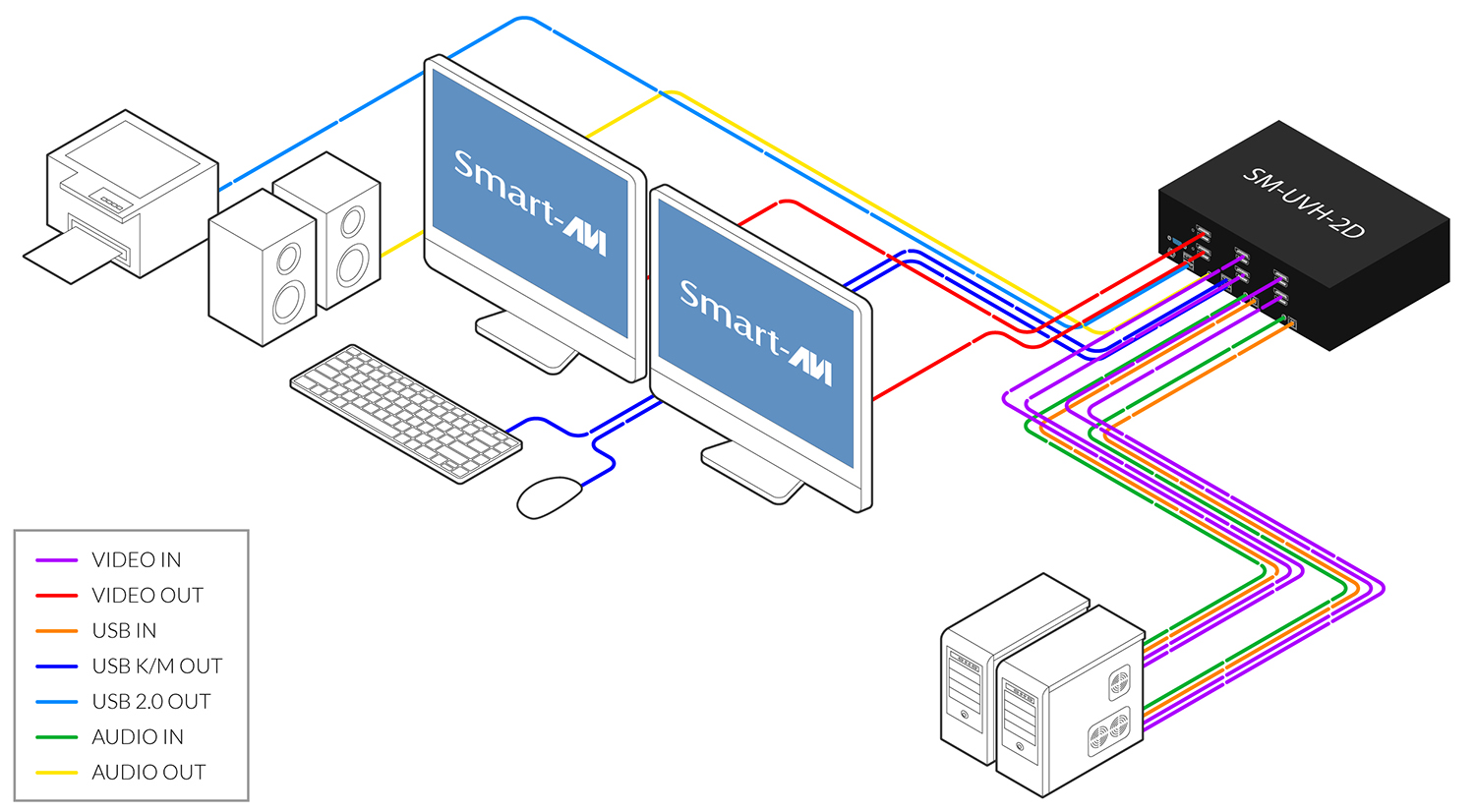

The SM-UVH-2D is a dedicated multi-platform KVM Switch capable of managing up to 2 different computers through two monitors, USB keyboard and mouse, a set of speakers and USB devices like printers, memory devices, scanners, etc.

  • Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.
  • 4K Ultra-HD resolution – supports up to 3840 x 2160 @60Hz
  • Zero pixel loss with TMDS signal correction
  • Supports USB keyboard and mouse
  • Supports additional USB 2.0 devices like printers, scanners, web cameras and more
  • Flash upgradeable firmware
  • Stereo Audio support

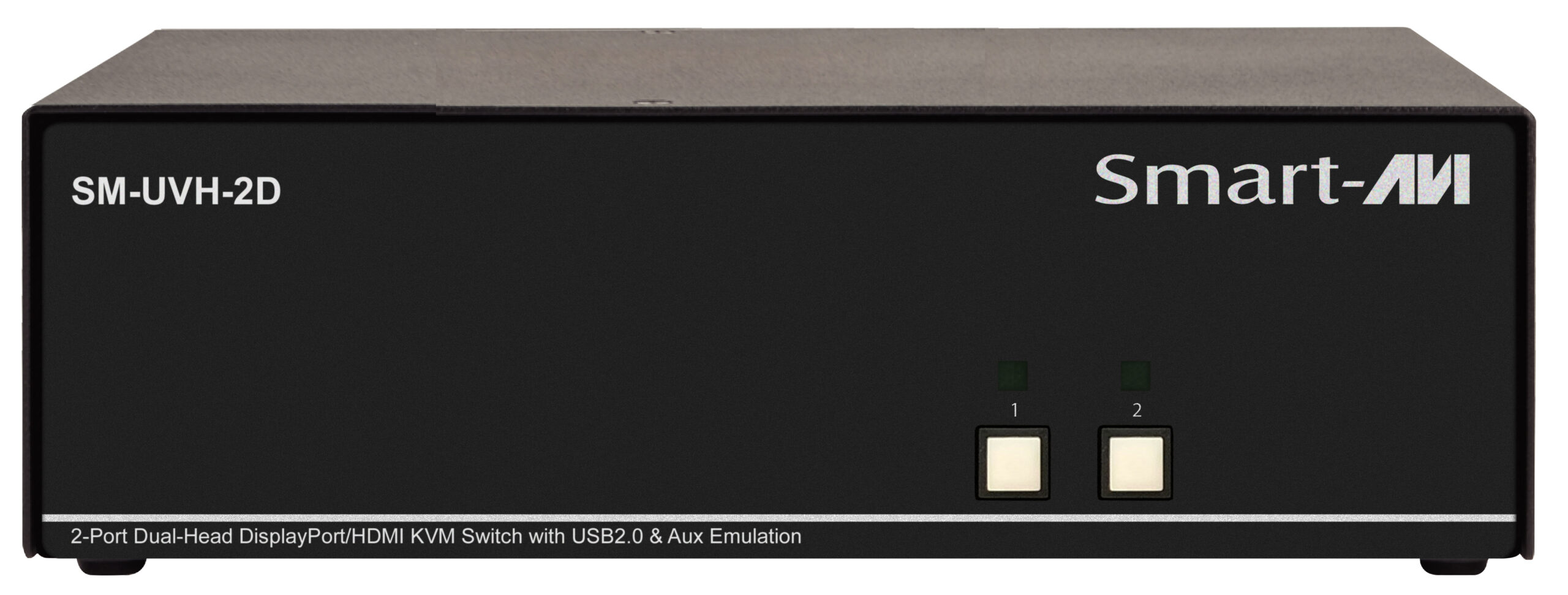

  • Front panel keys for manual port selection
  • Hot-key commands for quick port selection
  • RS-232 for remote control
  • Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer
  • Complete keyboard emulation for error free booting
  • Server Collocation
  • Digital Signage
  • Education
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Hotels/Resorts
VIDEO
Format DisplayPort / HDMI

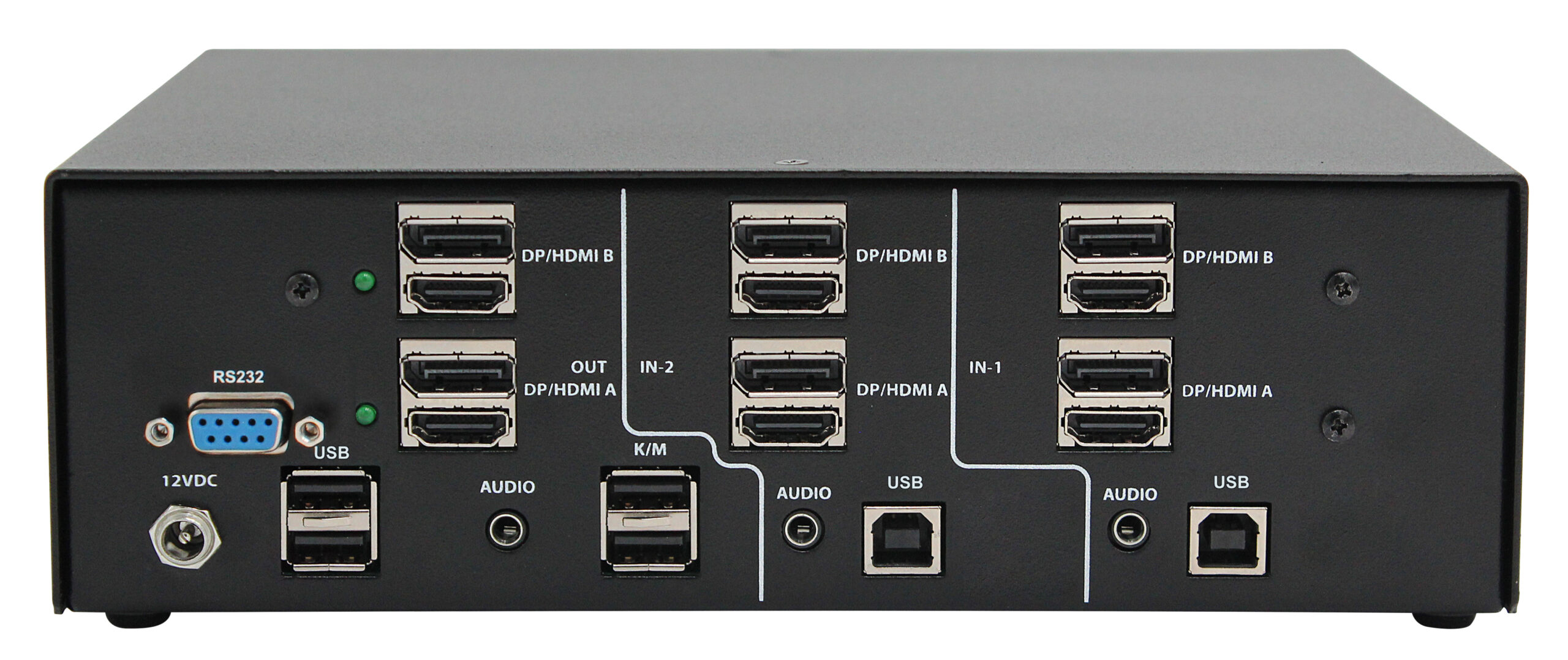

Input Interface (4) DisplayPort 20-pin / (4) HDMI 19-pin
Output Interface (2) DisplayPort 20-pin / (2) HDMI 19-pin
Resolution 3840 x 2160 @ 60 Hz
Color Mode 24-bit
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Input Interface (2) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface (2) USB Type B
Output Interface (2) USB 1.1 Type A for KVM Devices;
(2) USB 2.0 Type A Transparent
CONTROL
Front Panel Push Buttons with LED Indicators
RS-232 Via Control @ 115200 bps
Hot Keys Via Keyboard
OTHER
Power External
100-240 VAC / 12VDC 3A @ 24W
Dimensions 8.8” W x 2.63” H x 6.69” D
Weight 3.85 lbs
Approvals UL, CE, ROHS Compliant
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
Emulation Keyboard and Mouse
PART NO. DESCRIPTION
SM-UVH-2D-S 2-Port Dual-Head 4K/60Hz DisplayPort/HDMI KVM Switch with USB 2.0 & Aux Emulation.
Includes: [SM-UVH-2D, and PS12VD3A]
