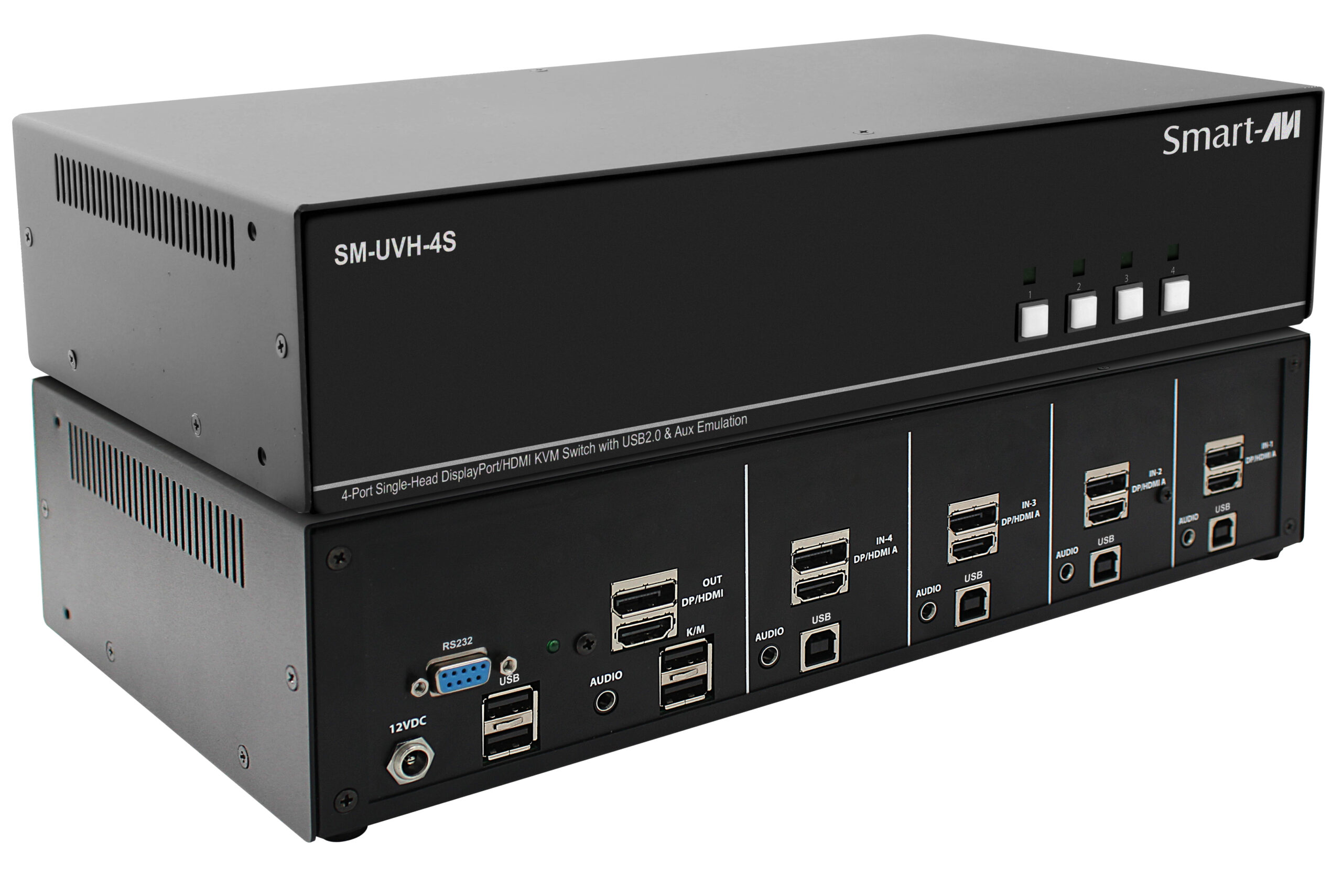

SM-UVH-4S
4-Port | Single-Head | DP & HDMI KVM Switch | USB 2.0 & AUX Emulation

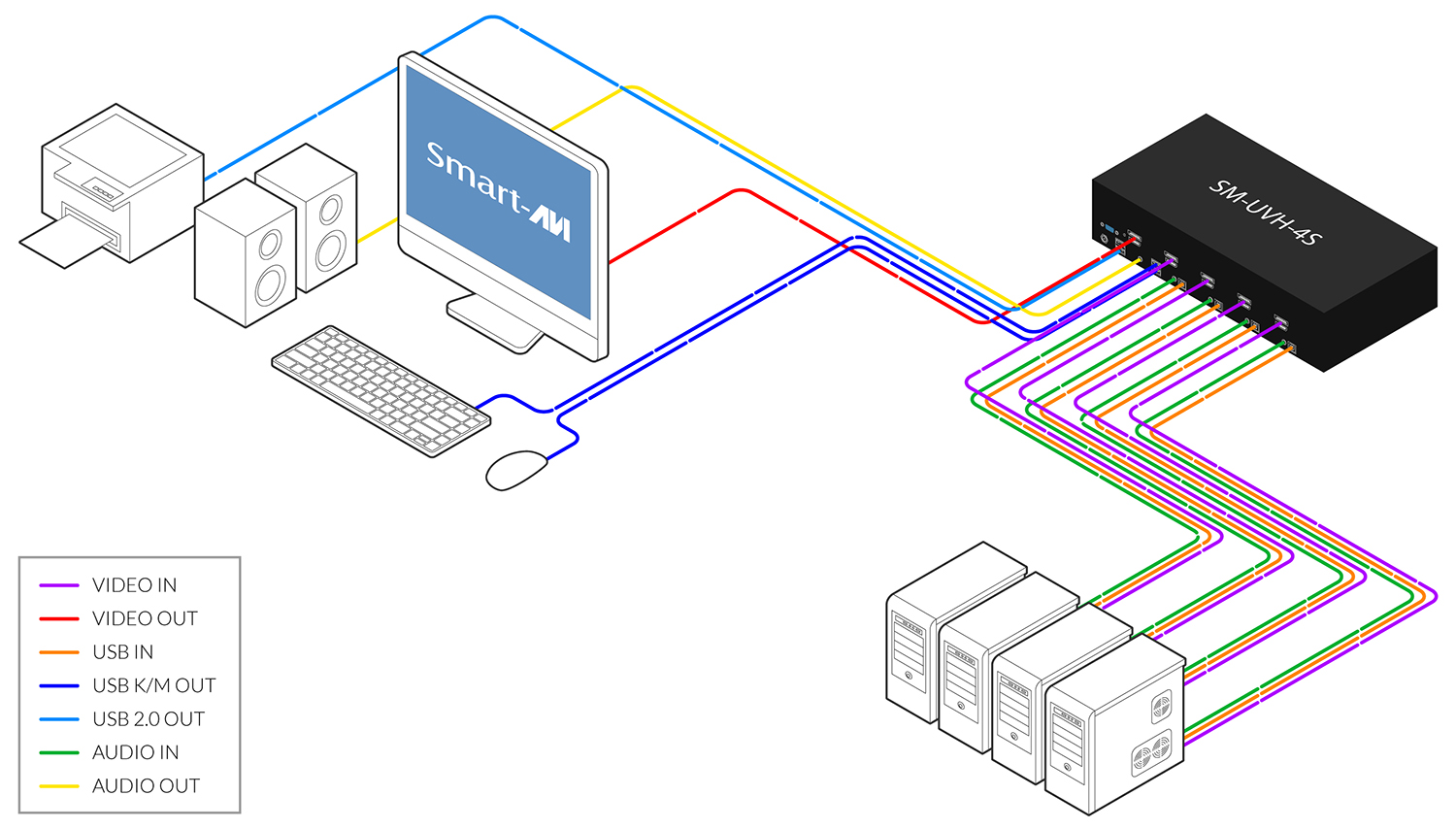

Unlike traditional KVM switches that lock you into a single format, the SM-UVH-4S is a universal solution that supports both DisplayPort and HDMI sources and monitors. You can mix and match DP and HDMI PCs and displays across the same unit without compromise, solving a growing challenge in multi-format environments.
- Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.
- 4K Ultra-HD resolution – supports up to 3840 x 2160 @60Hz
- Zero pixel loss with TMDS signal correction
- Supports USB keyboard and mouse
- Supports additional USB 2.0 devices like printers, scanners, web cameras and more
- Flash upgradeable firmware
- Stereo Audio support

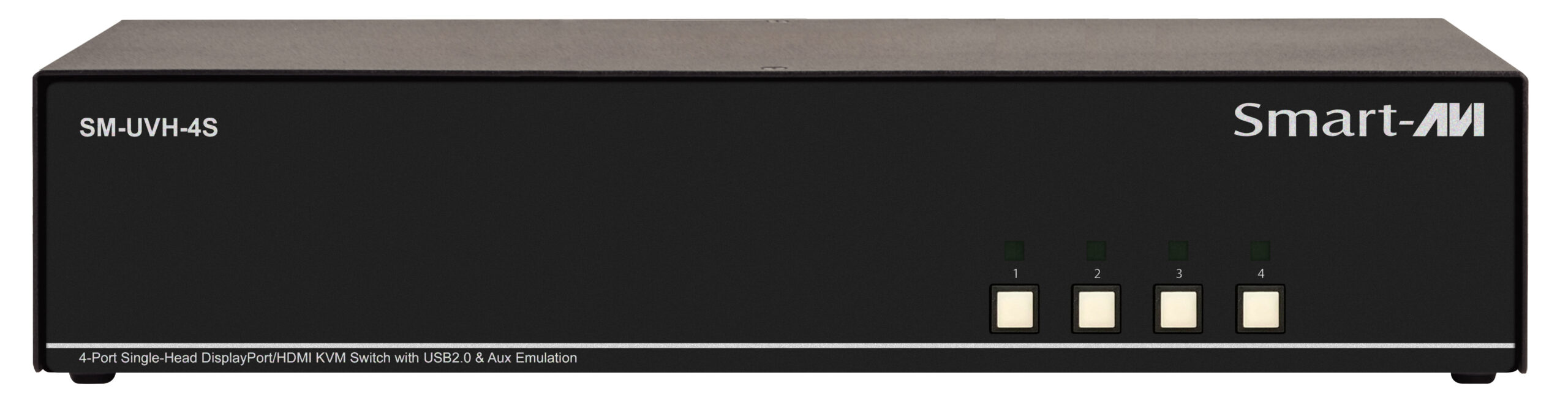

- Front panel keys for manual port selection
- Hot-key commands for quick port selection
- RS-232 for remote control
- Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer
- Complete keyboard emulation for error free booting
- Server Collocation
- Digital Signage
- Education
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Hotels/Resorts
| VIDEO | |
|---|---|
| Format | DisplayPort / HDMI |

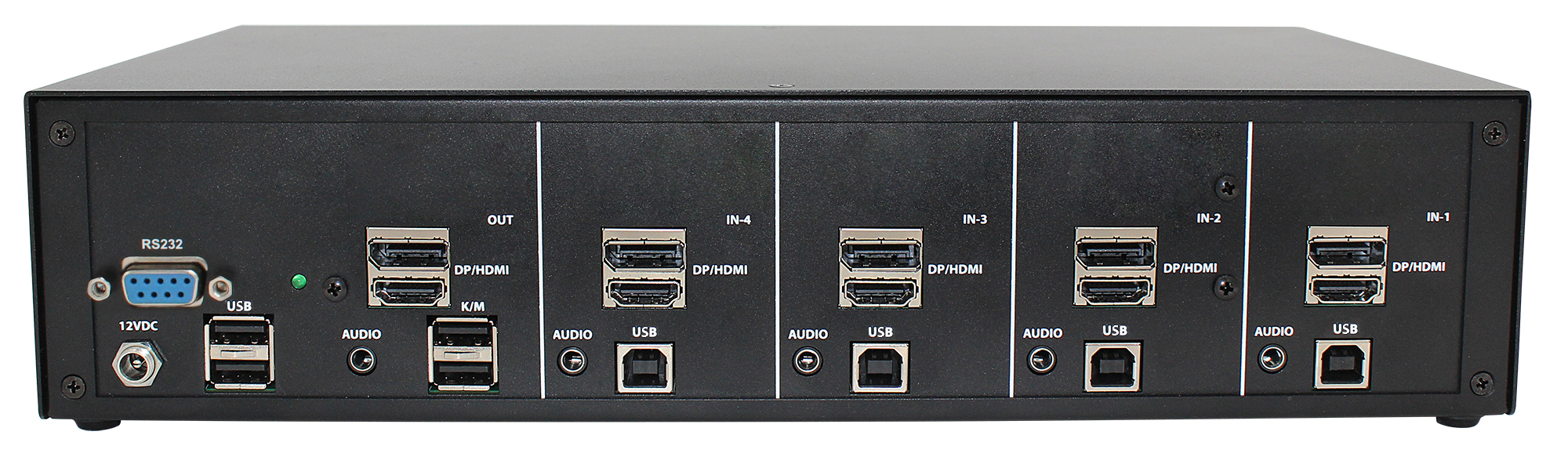

| Input Interface | (4) DisplayPort 20-pin / (4) HDMI 19-pin |
| Output Interface | (1) DisplayPort 20-pin / (1) HDMI 19-pin |
| Resolution | 3840 x 2160 @ 60 Hz |
| Color Mode | 24-bit |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| AUDIO | |
| Input Interface | (4) 3.5 mm Stereo Audio |
| Output Interface | (1) 3.5 mm Stereo Audio |
| Impedance | 600 Ohm |
| Frequency Response | 20 Hz to 20 kHz |
| Nominal Level | 0-1.0 V |
| Common Mode Rejection | at 60 dB |
| USB | |
| Signal Type | USB 2.0, 1.1, and 1.0 w/ internal hub |
| Input Interface | (4) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KVM Devices; (2) USB 2.0 Type A Transparent |
| CONTROL | |
| Front Panel | Push Buttons with LED Indicators |
| RS-232 | Via Control @ 115200 bps |
| Hot Keys | Via Keyboard |
| OTHER | |
| Power | External 100-240 VAC / 12VDC 3A @ 24W |
| Dimensions | 12.57” W x 2.7” H x 6.69” D |
| Weight | 4.2 lbs |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% (No Condensation) |
| Emulation | Keyboard and Mouse |
| PART NO. DESCRIPTION | |
| SM-UVH-4S-S | 4-Port Single-Head 4K/60Hz DisplayPort/HDMI KVM Switch with USB 2.0 & Aux Emulation. Includes: [SM-UVH-4S, and PS12VD3A] |
