SPS-U8P
Seamless Presenter Switching for Smarter Meetings
The SPS-U8P is a 8-input presentation switcher built for presentation and conference room systems that require simple source selection and multi-source display. It supports HDMI, DisplayPort, and USB-C inputs, allowing users to connect laptops, desktop computers, and other AV devices and display them on a single screen.

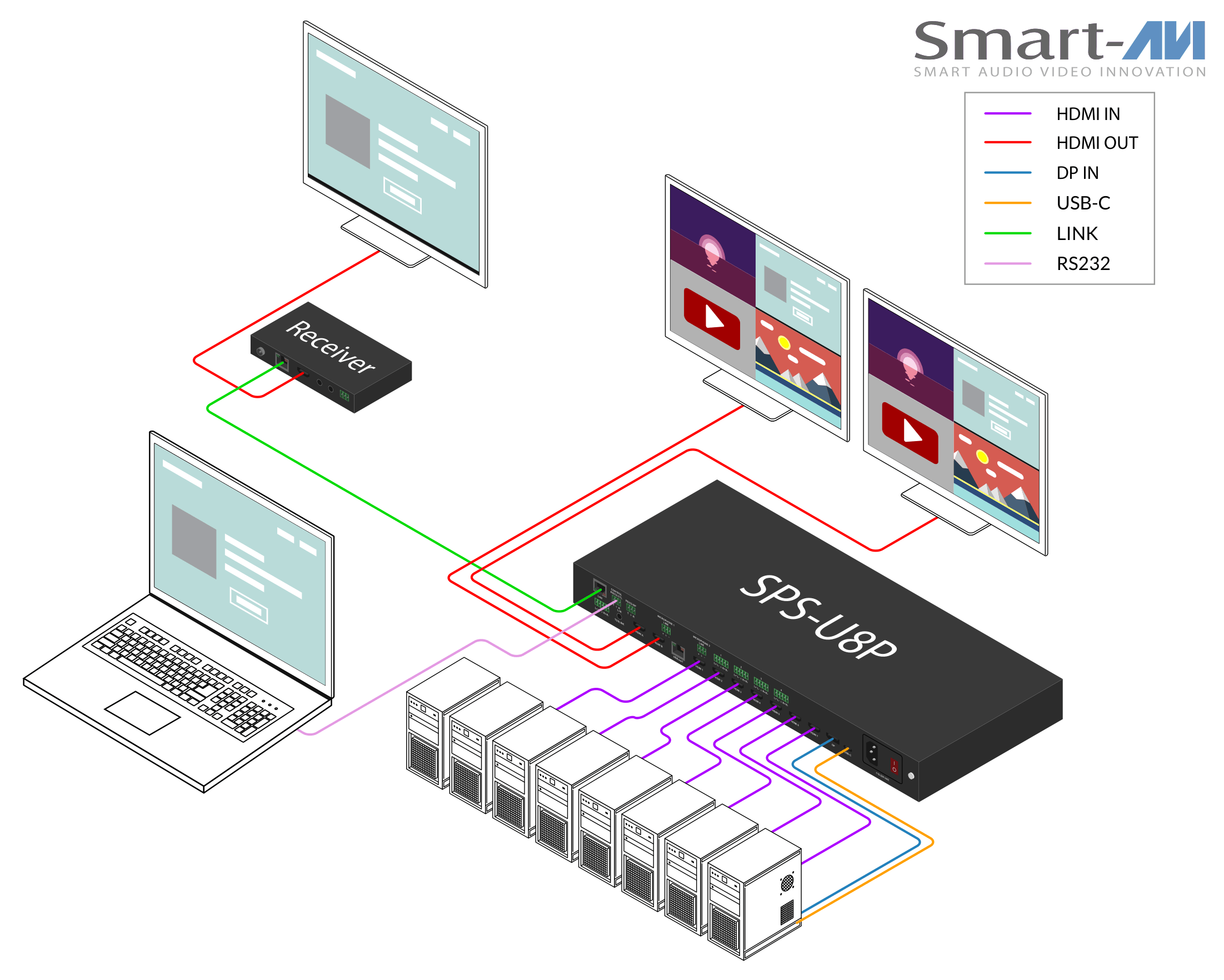

The SPS-U8P supports resolutions up to 4K60 and offers several Multiviewer display modes including Single, PIP, PBP, 3-Window, and 4-Window layouts through RS-232 commands. A mirrored extended output allows video to be transmitted to a remote display over category cable while maintaining high-resolution signal quality.
- Inputs: 7x HDMI 2.0, 1x DP, 1x USB-C (video only).
- Outputs: 2x HDMI, 1x CAT5 Transmitter, 1x 3.5mm L/R output Support HDMI 2.0, HDCP 2.2, and video resolutions up to 4096×2160@60
- Support 5 categories of Multiview modes: SINGLE, PIP, PBP, 3xWIN, and 4xWIN
- Seamless switching on single window display mode; fast switching on non single window display modes
- Extensive EDID and HDCP handling.
- Support volume control and independent audio selection. Support LPCM, AC3, DD+, DTS, and DTS-HD, up to 7.1 audio channels

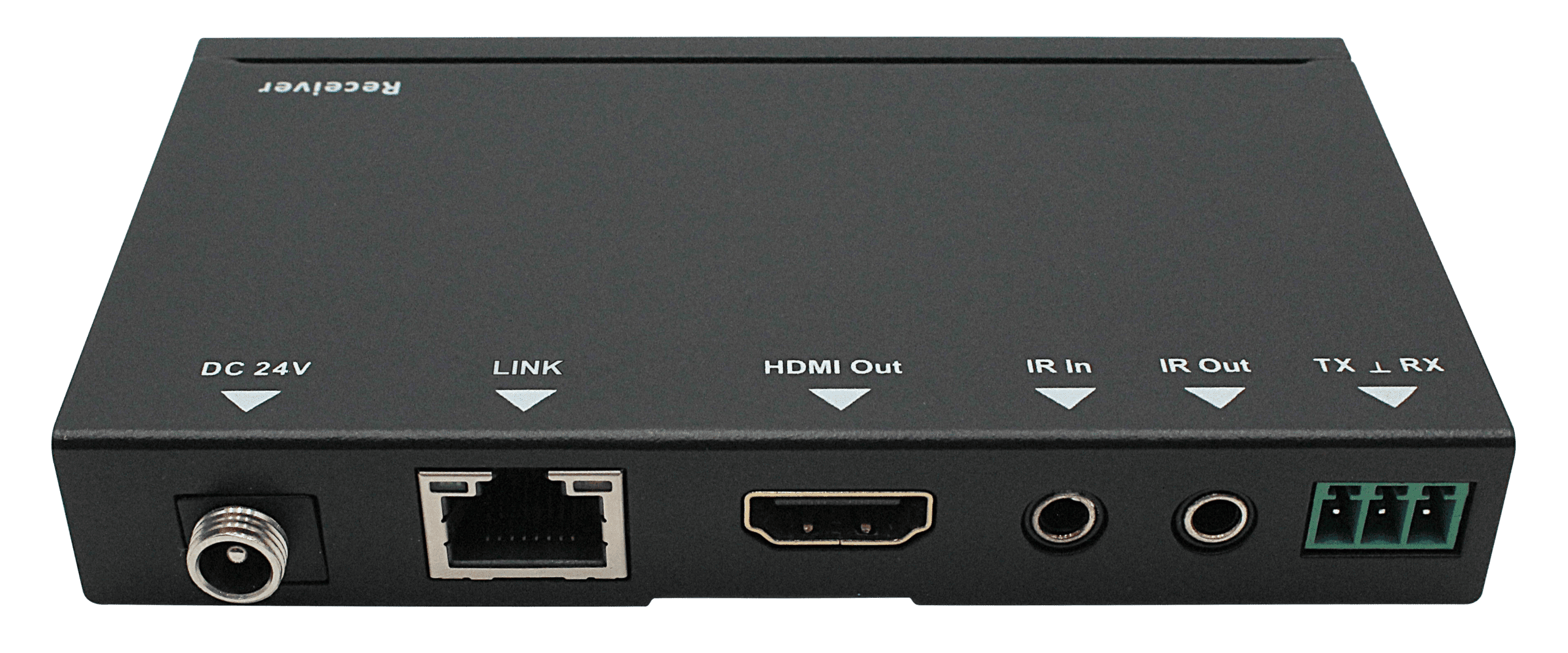

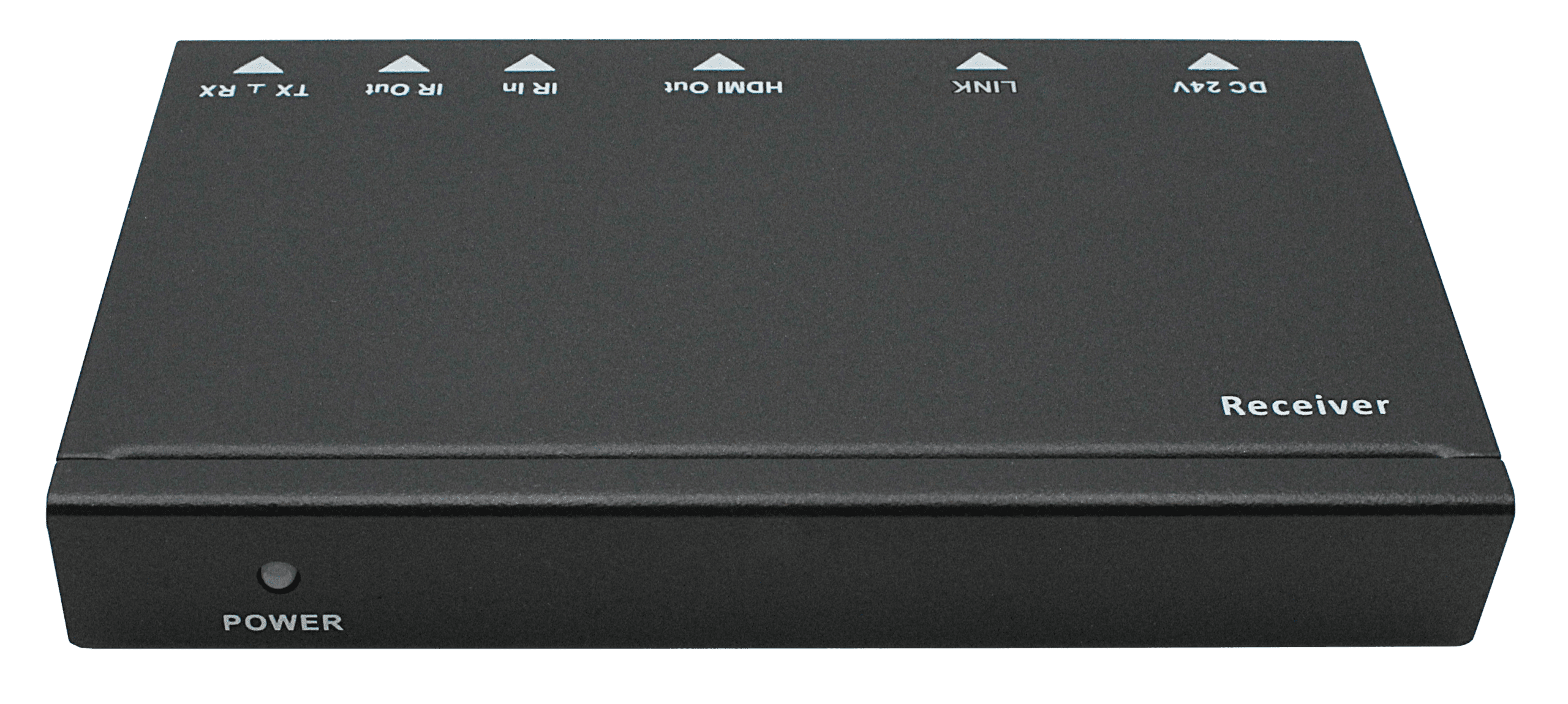

- Provides 24V/10watt PSE (POC) for remote CAT5 Transmitter receiver power supply
- CAT5 Transmitter length up to 70m @1080p, or 40m @4K
- Conference Rooms
- Presentation and Broadcast Rooms
- Collaborative Workspaces
- Video Conference
- Broadcast Studios
- Video Editing
| VIDEO | |
|---|---|
| Input ports | 7x HDMI 2.0, 1x DisplayPort, 1x USB-C (Video Only) |

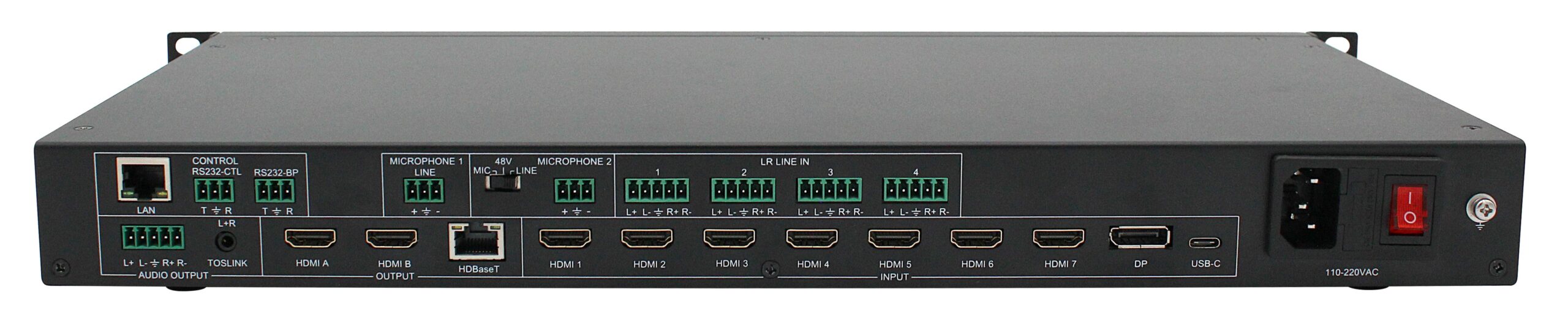

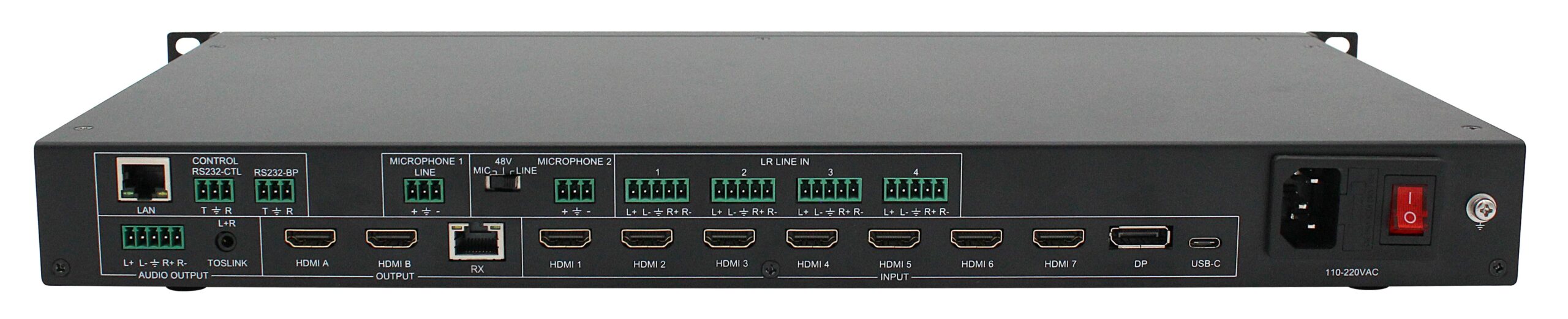

| Output ports | 2x HDMI, 1x CAT5, 1x 5-way captive female screw connector, 1x Mini Toslink connector |
| Format | HDMI |
| Maximum Pixel Clock | 594 MHz |
| Resolution & Refresh Rate | Up to 4096 x 2160 @ 60Hz |
| Color Mode | 24-bit |
| DDC | 24 volts |
| Color Capability | 24-bit True Color (8-bits per channel) |
| Chroma Sampling | 4:4:4 (full color), 4:2:2, or 4:2:0 |
| Input Equalization | Automatic |
| Data Rate | 1.65 Gbps per color |
| EDID Support | Full emulation & preloaded profiles |
| Band Width | 594MHz (18Gbps), HDMI 2.0, HDCP2.2 |
| AUDIO | |
| Audio Format | LPCM, AC3, DD+, DTS, DTS-HD Up to 7.1 channel |
| Impedance | 600 Ohm |
| Frequency Response | 20 Hz to 20 kHz |
| Nominal Level | 0-1.0 V |
| Common Mode | Rejection at 60 dB |
| CONTROL | |

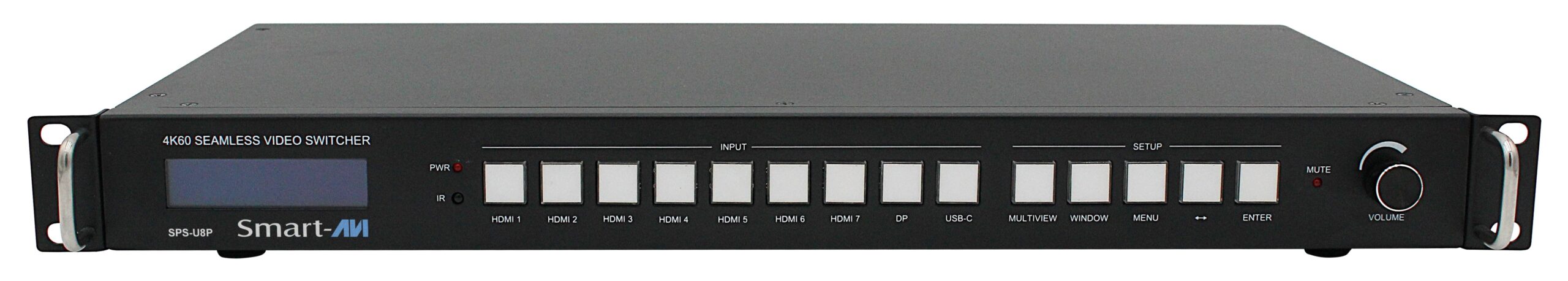

| Front Panel | Buttons (SELECT audio/video source) |
| RS-232 | Via serial @115200bps |
| OSD | On Screen Display |
| OTHER | |
| Power Supply | 110-220VAC |
| Operating Temperature | 0 to +40°C (+32 to +104°F) |
| Operating Humidity | 10 to 70 % RH (non-condensing) |
| ESD | Air: ± 8KV, Contact: ± 4KV |
| Dimensions | L430 x W220 x H44 mm |
| Mass (Main Unit) | 5kg |
| PACKAGE CONTENT | |
| Part No. | SPS-U8P |
| Description | 8-Port seamless UHD Presentation Switcher with Multiviewer Control Includes [SPS-U8P & PS24VDC1A] |
| Part No. | ORDERING INFORMATION |
|---|---|
| SPS-U8P | 8-Port seamless UHD Presentation Switcher with Multiviewer control. Includes: [SPS-U8P &(PS24VDC3A)] |
