P2PKVM Series
High-Performance KVM-over-IP Extender & Matrix Solution
Experience seamless, real-time remote access with the P2PKVM Series, a high-performance KVM-over-IP extender and matrix solution. Designed for mission-critical environments, it delivers ultra-low latency, high-resolution video, and secure connectivity
over IP networks, ensuring efficient system control and flexibility.
Overview
Experience seamless, real-time remote access with the P2PKVM Series, a high-performance KVM-over-IP extender and matrix solution.Designed for mission-critical environments, it delivers ultra-low latency, high-resolution video, and secure connectivity
over IP networks, ensuring efficient system control and flexibility.
Supporting resolutions up to 3840×2160 at 30Hz, the P2PKVM series is compatible with DVI-D, HDMI, and DisplayPort in both single and dual-head configurations. It also offers full USB KVM emulation and transparent USB 2.0 support with audio, providing
fast, responsive control over gigabit networks via copper or fiber connections.

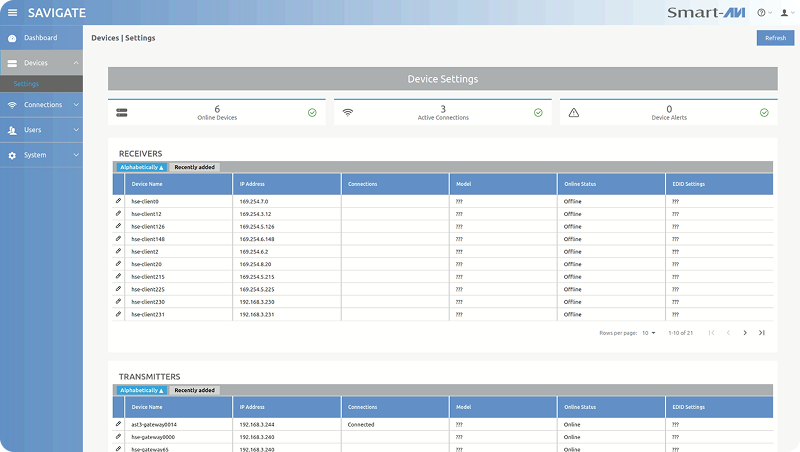

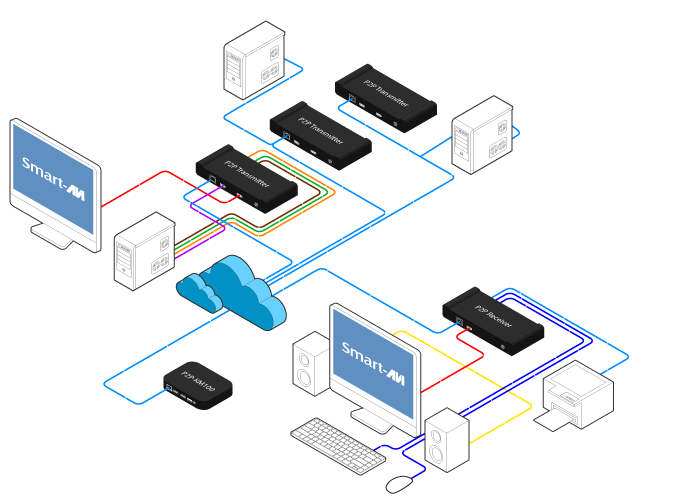

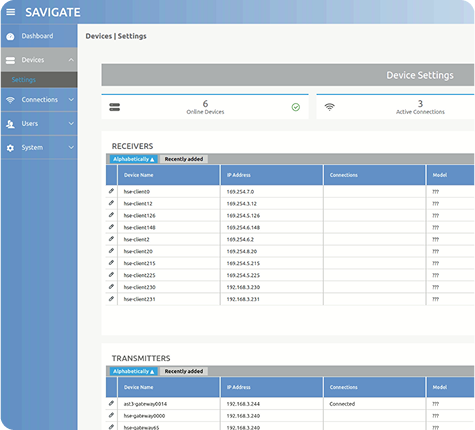

Centralized Management – Powered by Savigate
The P2PKVM Series Manager, powered by Savigate, offers IT administrators a centralized platform to efficiently manage KVM-over-IP extenders. Designed for ease of use, security, and scalability, it simplifies administration through a web-based GUI that
provides full control and real-time visibility over connected KVM devices.
- Centralized KVM Management – monitor, configure, and control from one dashboard
- Seamless User Access Control – assign, modify, or revoke permissions
- Real-Time Switching with Control View
- Web-Based GUI – manage from any browser with no installation

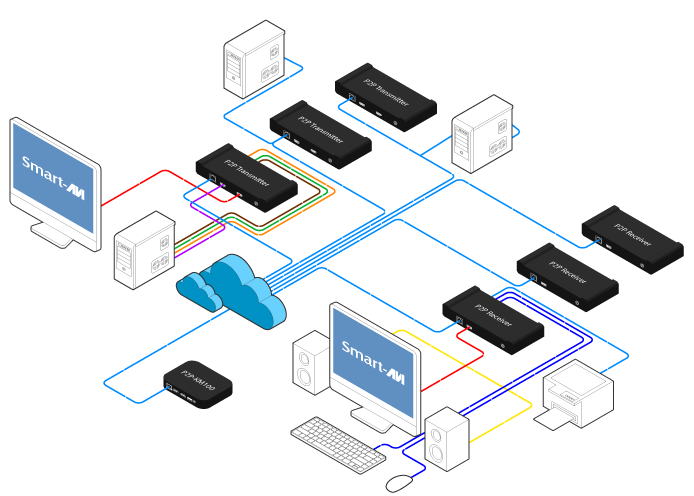

Entry-Level Switching & Control

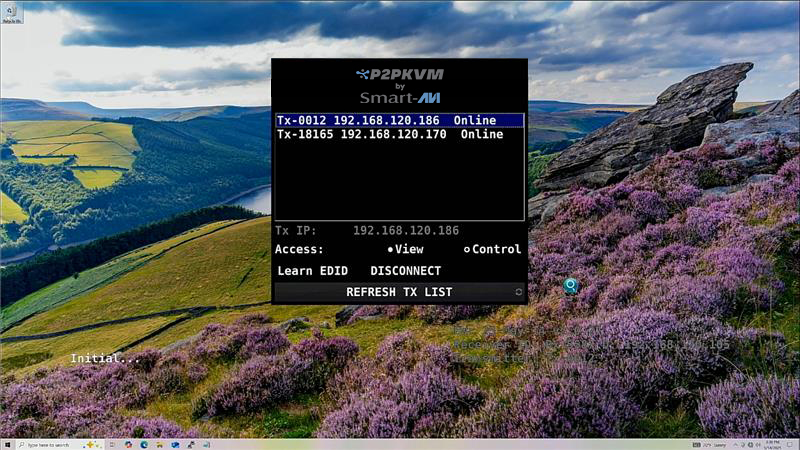

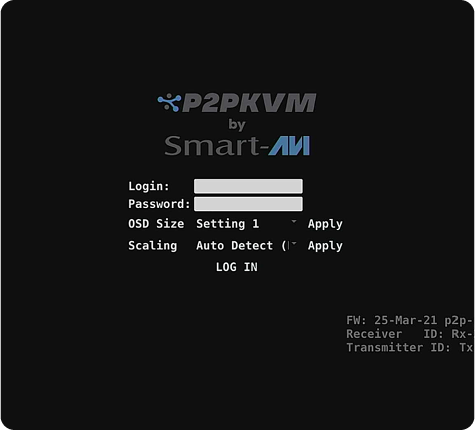

The P2PKVM series offers an entry-level manager solution with hotkey
switching and an intuitive OSD. Perfect for IT support and training
environments, this solution allows users to view or control any
server on the network easily.
- Instant Switching with Hotkeys
- Real-Time Access for Support and Training
- User-Friendly Interface – no complex setup
- Scalable and Cost-Effective
P2P-Trio — 3-Port Direct-Connect Receiver
One Receiver. No Network Switch Required.

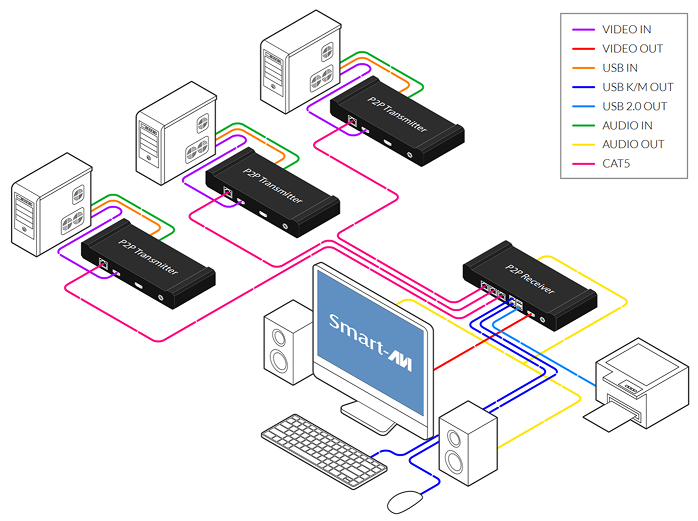

The P2P-Trio receiver introduces a breakthrough in KVM-over-IP design as a single receiver that connects directly to up to three transmitters without requiring a network switch, controller, or additional hardware.
Using standard CATx cabling, P2P-Trio delivers seamless switching, ultra-low latency, and full keyboard-mouse-USB extension — perfect for local workstation setups, control rooms, and multi-system operators.
How It Works
A P2P-Trio receiver features dual or triple RJ45 ports that link directly to any P2PKVM transmitter. Each connected system operates as a standard P2PKVM channel, and users can instantly toggle between all connected sources through:
- Hotkey commands
- Front-panel controls
- On-screen display (OSD)
Key Advantages
No Network Switch Needed
Connect transmitters directly to the receiver for a clean, isolated setup
Three-Port KVM Control
Manage up to three systems from one workstation
Universal Compatibility
Works with all CATx P2PKVM transmitters — DVI, HDMI, or DisplayPort
Hotkey or OSD Switching
Switch instantly between connected systems
Ideal for Secure or Local Environments
No external switch or controller required
Plug-and-Play Setup
Uses standard CAT5e/6 cabling
Key Features
Use Cases
Server Farms
Air Traffic Control
Enterprise IT
Government & Military
Control Rooms
Broadcast & Production
KVM Switching and Extension Product Portfolio
Our P2P series offers a comprehensive range of solutions for DVI, HDMI, and DisplayPort video formats, supporting both single-head and dual-head configurations. Available in Cat5 and fiber optic options, these systems provide flexible and high-performance KVM switching and extension tailored for a wide variety of applications.
P/N |
Description |
Single-Head |
Dual-Head |
3-Port KVM |
Fiber |
Copper |
|---|---|---|---|---|---|---|
DVI |
||||||
| P2P-KVT300 | Point to Point | Single-Head | DVI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |
 |
|
|
||
| P2P-KVR300 | Point to Point | Single-Head | DVI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KVT302 | Point to Point | Dual-Head | DVI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |
|
|
|||
| P2P-KVR302 | Point to Point | Dual-Head | DVI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|||
| P2P-KVR130 | 3-Port | Single-Head | DVI CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
HDMI |
||||||

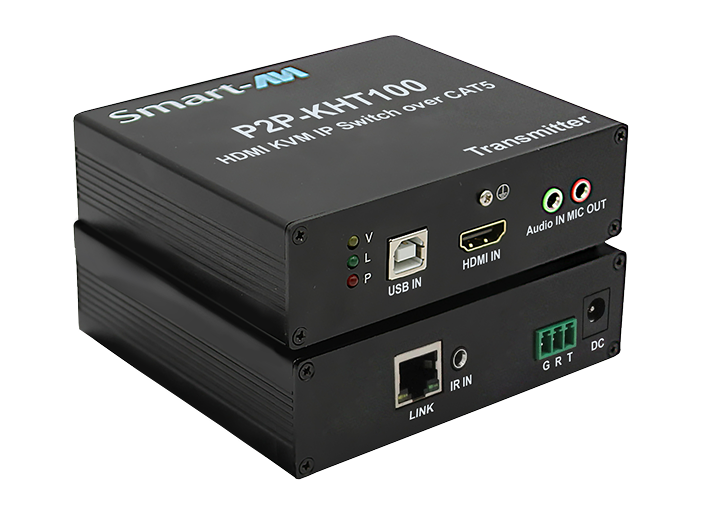

| P2P-KHT100 | Point to Point | Single-Head | HDMI CAT5 | Transmitter USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KHR100 | Point to Point | Single-Head | HDMI CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KHT300 | Point to Point | Single-Head | HDMI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KHR300 | Point to Point | Single-Head | HDMI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KHT302 | Point to Point | Dual-Head | HDMI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |
|
|
|||
| P2P-KHR302 | Point to Point | Dual-Head | HDMI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|||
| P2P-KHR130 | 3-Port | Single-Head | HDMI CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
DP |
||||||
| P2P-KDT300 | Point to Point | Single-Head | DisplayPort CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KDR300 | Point to Point | Single-Head | DisplayPort CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
| P2P-KDT302 | Point to Point | Dual-Head | DisplayPort CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |
|
|
|||
| P2P-KDR302 | Point to Point | Dual-Head | DisplayPort CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|||
| P2P-KDR130 | 3-Port | Single-Head | DisplayPort CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 |
|
|
|
||
Gateway Manager |
||||||

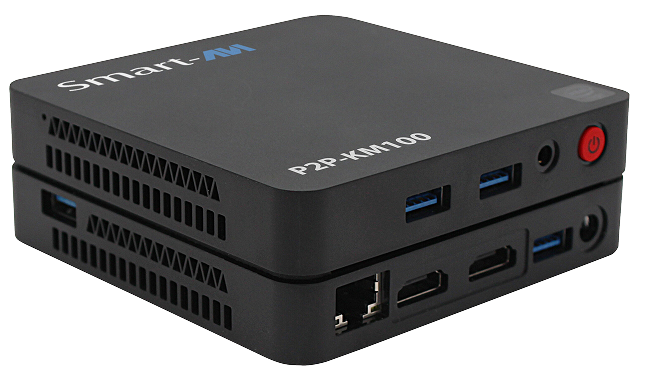

| P2P-KM100 | SaviGate P2PManager Controller – Complete & Secure Control for P2P Series KVM-over-IP |
|||||
Available Models
HDMI:
- P2P-KHT100, KHR100 – Single-Head HDMI CAT5
- P2P-KHT300, KHR300 – Single-Head HDMI CAT5 & Fiber
- P2P-KHT302, KHR302 – Dual-Head HDMI CAT5 & Fiber
DisplayPort:
- P2P-KDT300, KDR300 – Single-Head DisplayPort CAT5 & Fiber
- P2P-KDT302, KDR302 – Dual-Head DisplayPort CAT5 & Fiber
DVI:
- P2P-KVT300, KVR300 – Single-Head DVI CAT5 & Fiber
- P2P-KVT302, KVR302 – Dual-Head DVI CAT5 & Fiber
Controller:
- P2P-KM100 – SaviGate P2PManager Controller
