P2P-KHT302
Point to Point | Dual-Head | HDMI CAT5 | Fiber Transmitter | RS-232 Local Loop | USB 2.0 | Audio |

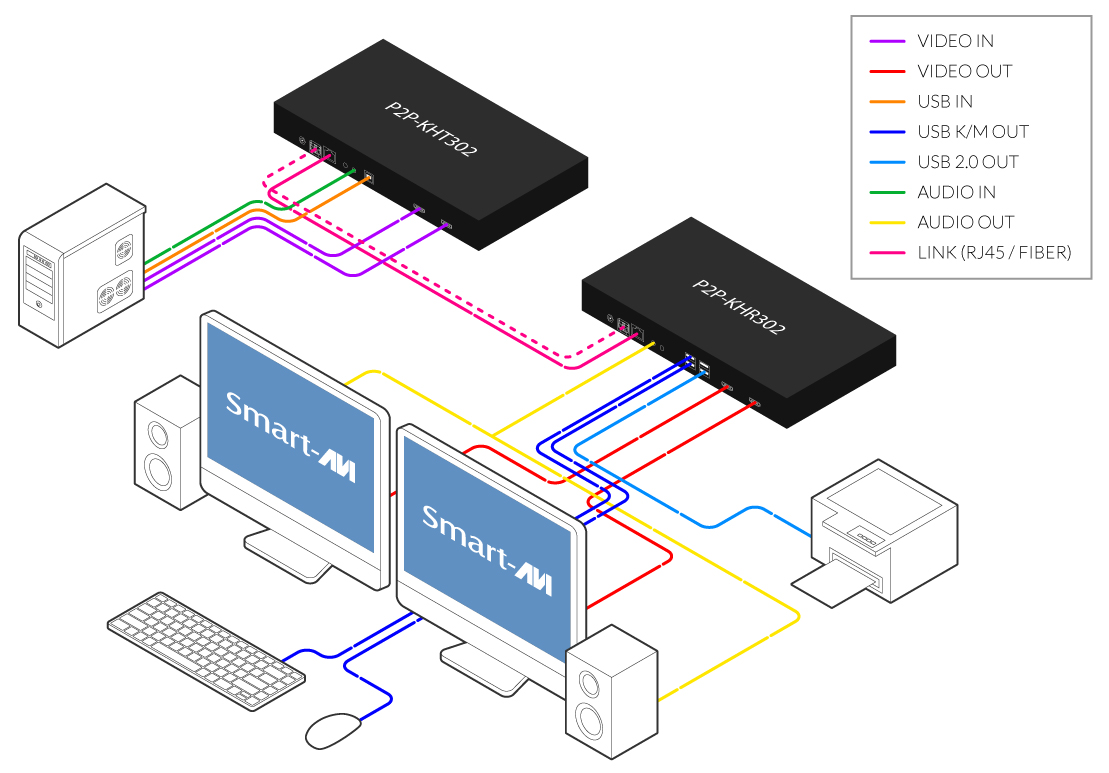

P2PKVM Series High-Performance KVM-over-IP Extender & Matrix Solution. Designed for mission critical environments, it delivers ultra-low latency, dual HDMI video, and secure connectivity over CAT5 and Fiber networks, ensuring efficient system control and flexibility.
SUPPORTS DVI VIDEO UP TO 4K @ 30HZ OR 1080P @ 60HZ
TRANSPARENT USB 2.0 EXTENSION FOR PERIPHERALS
ANALOG AUDIO AND RS-232 PASSTHROUGH
SELECTABLE DIRECT, MATRIX, AND SAVIGATE MODES VIA WEB INTERFACE
SAVIGATE GATEWAY SUPPORT FOR CENTRALIZED MANAGEMENT (SOLD SEPARATELY)
UP TO 100M OVER CATX / 10KM OVER FIBER
ULTRA-LOW LATENCY JPEG2000 COMPRESSION
PLUG-AND-PLAY INSTALLATION
EDID LEARNING AND MANAGEMENT
AV AND IT EXTENSION FOR SECURE ENVIRONMENTS
BROADCAST AND PRODUCTION CONTROL ROOMS
MILITARY AND GOVERNMENT OPERATIONS
MEDICAL AND INDUSTRIAL COMMAND CENTERS
DIGITAL SIGNAGE AND WORKSPACE CENTRALIZATION
Video OUT
Format: HDMI 1.4 & HDCP 1.4 Compliant, Video Bandwidth Up To 10.2 Gbps
Video Resolution: Up To 4K @ 30 Hz (each output)
Connector: 2× HDMI (19-Pin Female)
Other
Power: 12 V DC, 3 A (Power Supply Included)
Reliability (MTBF): 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator)
Environmental Operating Temperature: 0°C to 45°C (32°F to 113°F)
Environmental Operating Humidity: 10% to 90%, non-condensing
ESD Protection: Protection per IEC 61000-4-2 Standard at ±30 kV Air and ±30 kV Contact
Support Warranty: 1-Year
Certification: CE, FCC, RCM, UL
Dimensions: 11.5″W × 5.25″D × 1.70″H
Weight: 1.81 lbs (0.82 kg)
P2P-KHT302-S
HDMI Transmitter with Single Head support, Point-to-Point mode over CATx & Fiber connection
[Includes: P2P-KHT302, PS5VD2A]
