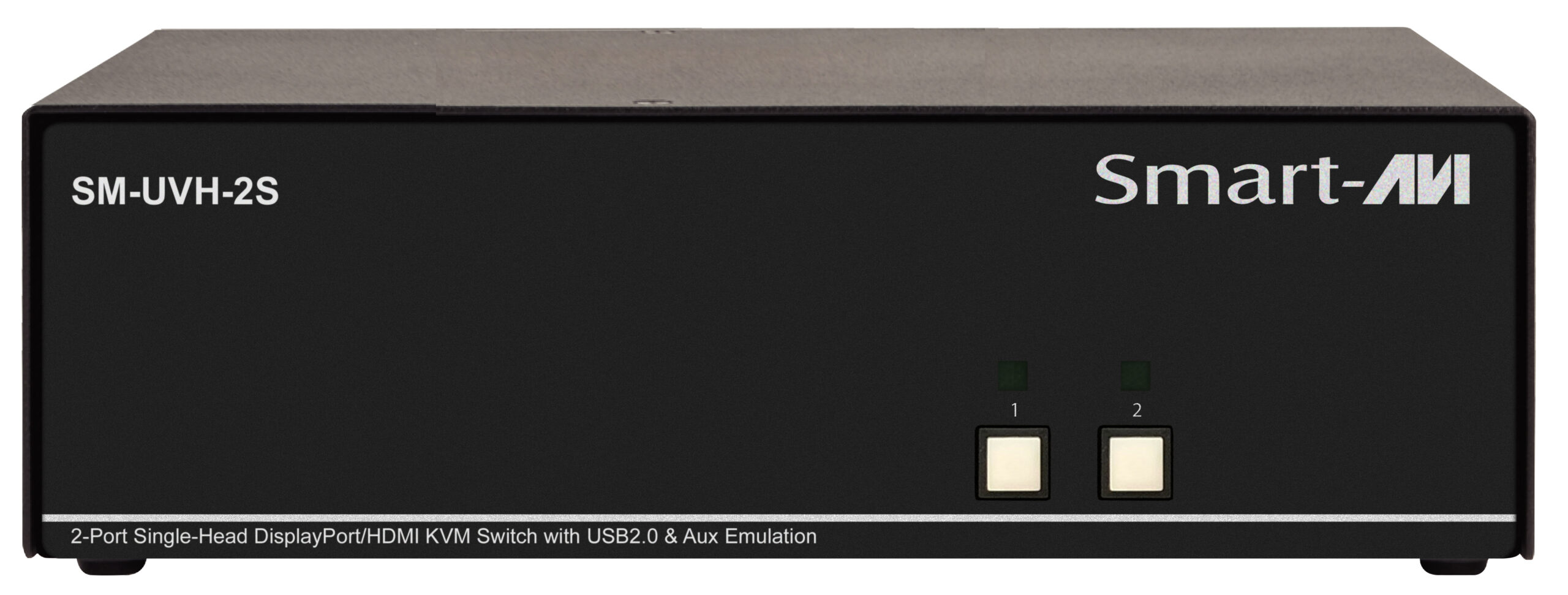

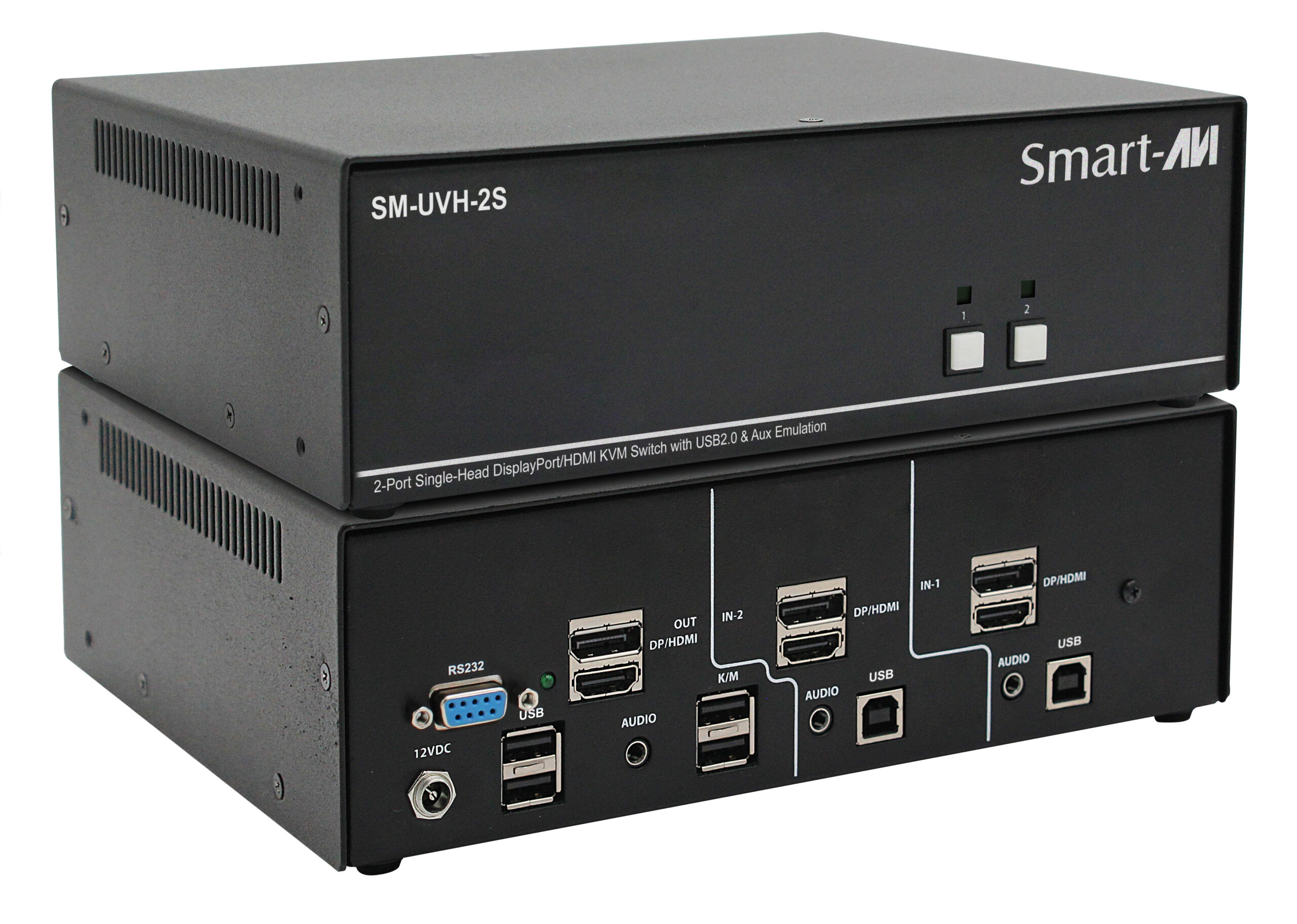

SM-UVH-2S

2-Port | Single-Head | DisplayPort & HDMI KVM Switch

Unlike traditional KVM switches that lock you into a single format, the SM-UVH-2S is a universal solution that supports both DisplayPort and HDMI sources and monitors. You can mix and match DP and HDMI PCs and displays across the same unit without compromise, solving a growing challenge in multi-format environments.

Universal DisplayPort & HDMI inputs/outputs
Dual-Head support in a slim 2U rackmount design
Seamless USB 2.0 and KM switching
Crisp 4K@60 UHD resolution
AUX emulation for stable dual-display setups

Server Collocation
Digital Signage
Education
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Hotels/Resorts

VIDEO
Format	DisplayPort / HDMI
Input Interface	(2) DisplayPort 20-pin / (2) HDMI 19-pin
Output Interface	(1) DisplayPort 20-pin / (1) HDMI 19-pin
Resolution	3840 x 2160 @ 60 Hz
Color Mode	24-bit
DDC	5 volts p-p (TTL)
Input Equalization	Automatic
Input Cable Length	Up to 20 ft.
Output Cable Length	Up to 20 ft.
AUDIO
Input Interface	(2) 3.5 mm Stereo Audio
Output Interface	(1) 3.5 mm Stereo Audio
Impedance	600 Ohm
Frequency Response	20 Hz to 20 kHz
Nominal Level	0-1.0 V
Common Mode Rejection	at 60 dB
USB
Signal Type	USB 2.0, 1.1, and 1.0 w/ internal hub
Input Interface	(2) USB Type B
Output Interface	(2) USB 1.1 Type A for KVM Devices; (2) USB 2.0 Type A Transparent
CONTROL
Front Panel	Push Buttons with LED Indicators
RS-232	Via Control @ 115200 bps
Hot Keys	Via Keyboard
OTHER
Power	External 100-240 VAC / 12VDC 3A @ 24W
Dimensions	8.8” W x 2.63” H x 6.69” D
Weight	3.85 lbs
Approvals	UL, CE, ROHS Compliant
Operating Temperature	+32 to +104°F (0 to +40°C)
Storage Temperature	-4 to 140°F (-20 to +60°C)
Humidity	Up to 80% (No Condensation)
Emulation	Keyboard and Mouse
PART NO. DESCRIPTION
SM-UVH-2S-S	2-Port Single-Head 4K/60Hz DisplayPort/HDMI KVM Switch with USB 2.0 & Aux Emulation. Includes: [SM-UVH-2S, and PS12VD3A]
