Hardware-level access
Control computers directly through their video and USB ports—no agent, operating system, or source-side application required.
N2N-KVM Series
Control every system.From anywhere.
Low-bandwidth 4K KVM-over-IP, powered by H.264 / H.265.
Access, monitor, and control remote computers from one workstation or any modern browser. N2N-KVM brings responsive KVM control, multiview monitoring, and scalable AV distribution to standard IP networks.
No source-side softwareCAT5 or fiberBrowser-based control
N2N-KVM Hardware Platform4K UHD
4K30HDMI / DisplayPort
H.265Low bandwidth
9 ViewsLive multiview
10 kmFiber reach
1 GbEStandard network
One intelligent platform
Simpler hardware. Smarter system design.
Every N2N-KVM node can be configured as a transmitter, receiver, or standalone KVM station. One flexible platform reduces part numbers and lets the system scale as your operation grows.

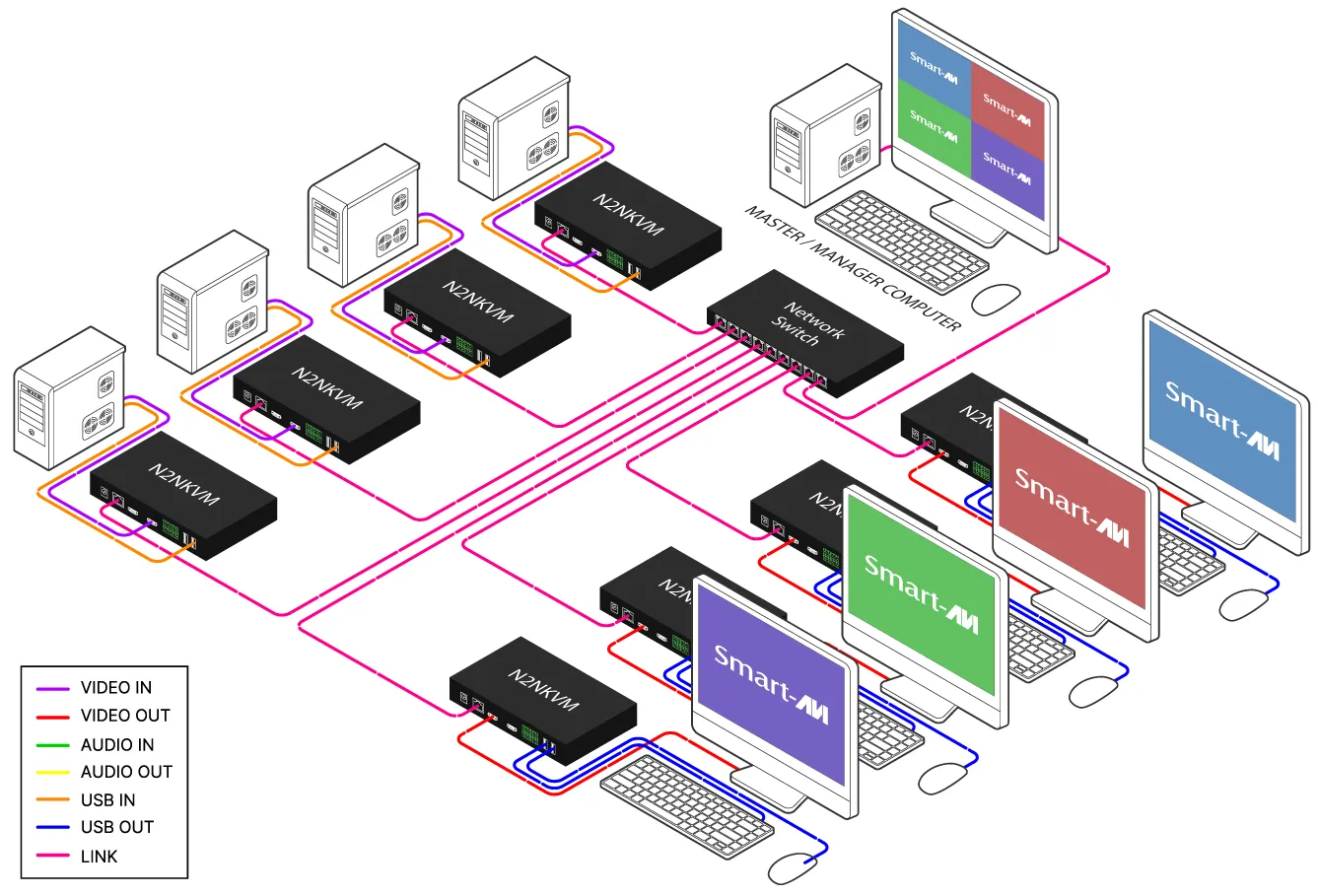

Built for standard IP networks
Use gigabit Ethernet with unicast or multicast streaming for efficient point-to-point and one-to-many distribution.
Matrix, multiview, and video walls
Route any source to any display, monitor multiple systems together, and save complete layouts as reusable scenes.
Introducing N2N-KVM WebConsole™
View. Access. Control. From any browser.
A centralized browser-based interface for discovering, monitoring, viewing, and controlling N2N-KVM-connected systems—without installing management software on the operator computer.
- ✓Device discovery
- ✓Live system status
- ✓Source switching
- ✓User permissions
- ✓Scene recall
- ✓Activity logs
Software-configurable
One unit. Every role.
Deploy the same N2N-KVM hardware wherever it is needed, then configure its role in software.
03
Standalone KVM station
Turn one node into a self-contained KVM workstation. Open the on-screen control panel, select a permitted source, and work with single, 1×2, or 2×2 display layouts.
- Firmware-driven control
- Built-in hotkeys and OSD
- Per-user source permissions
Flexible connectivity
From one room to 10 kilometers.
Deploy N2N-KVM over the network infrastructure that fits your site. Standard copper covers room and building-scale links, while SFP fiber extends the same system across campuses and remote facilities.
CAT5 / CAT6Up to 100 m (328 ft)
Single-mode fiberUp to 10 km (6.2 mi)
VideoUp to 3840 × 2160 @ 30Hz
ControlUSB keyboard and mouse
AudioIntegrated stereo extension
SwitchingTCP unicast / UDP multicast
Connected operations
One system for every mission-critical environment.
Coordinate teams and technology across command centers, data centers, security operations, server rooms, multimedia facilities, and large conference environments.
Interconnected Information Sharing Multi-Party Collaboration
Break through geographical limitations to enable coordinated operations across multiple locations.
Command & Control Center
Data Dispatch Center
Security Monitoring
Server Room Management Center
Multimedia
Display Center
Display Center
Large Conference Center
N2N-KVM product portfolio
Select video format and connectivity.
Each model supports both transmitter and receiver operation. Choose HDMI or DisplayPort, then add SFP fiber when the deployment requires extended distance.
| Model | Video | Roles | CAT5 | SFP Fiber | 4K30 | WebConsole |
|---|---|---|---|---|---|---|
| N2N-KVH100 | HDMI | Transmitter / Receiver | Yes | — | Yes | Yes |
| N2N-KVD100 | DisplayPort | Transmitter / Receiver | Yes | — | Yes | Yes |
| N2N-KVH300 | HDMI | Transmitter / Receiver | Yes | Yes | Yes | Yes |
| N2N-KVD300 | DisplayPort | Transmitter / Receiver | Yes | Yes | Yes | Yes |
| N2N-Manager | Yes | Transmitter / Receiver | Yes | Yes | Yes | Yes |
Final capabilities may vary by firmware and project configuration. Contact SmartAVI for system design and model confirmation.
Design your N2N-KVM system.
Tell us how many computers, displays, users, and locations you need to connect.
