Hardware-level distribution
Captures and streams video and audio directly from the source’s output ports — no agent, OS, or source-side app needed.
N2N-AV SERIES
Every screen, distributed.From anywhere.
Low-bandwidth 4K AV-over-IP, powered by H.264 / H.265.
Browser-based access to every source on the network — view, route, and distribute video and audio from any transmitter to any display, with live multiview and AV distribution over standard IP networks.
No source-side softwareCAT5 or fiberBrowser-based control

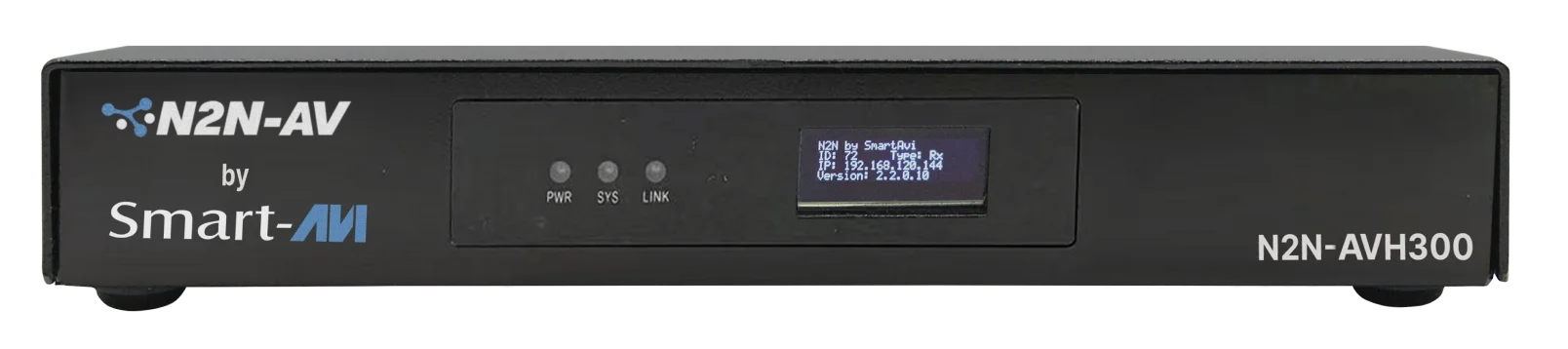

N2N-AV Hardware Platform4K UHD
4K30HDMI / DisplayPort
H.265Low bandwidth
9 ViewsLive multiview
10 kmFiber reach
1 GbEStandard network
One intelligent platform
Simpler hardware. Smarter system design.
Each node can be set as a transmitter, receiver, or standalone display station — reducing part numbers across the system.

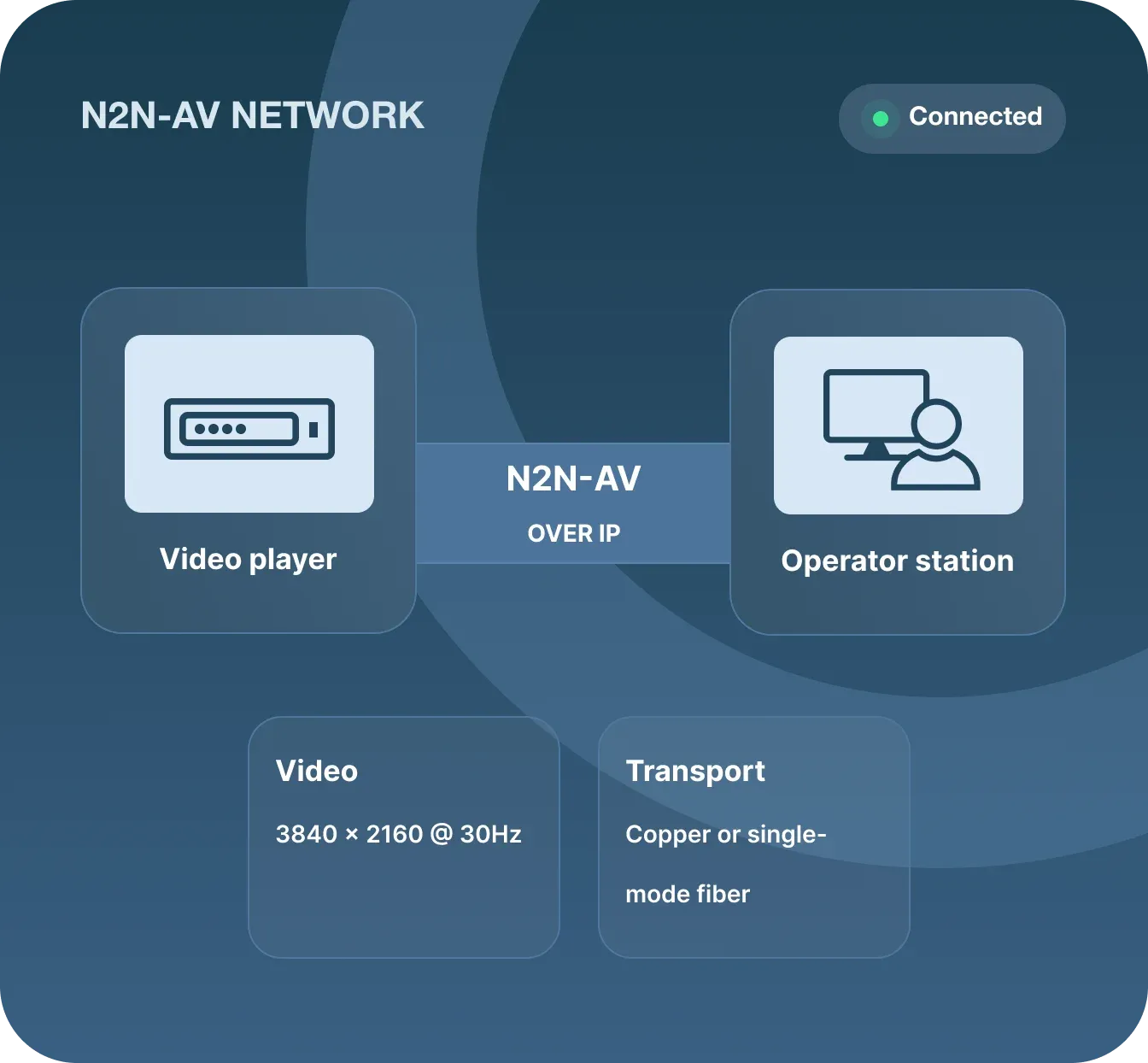

Built for standard IP networks
Runs on standard gigabit Ethernet, with unicast or multicast streaming.

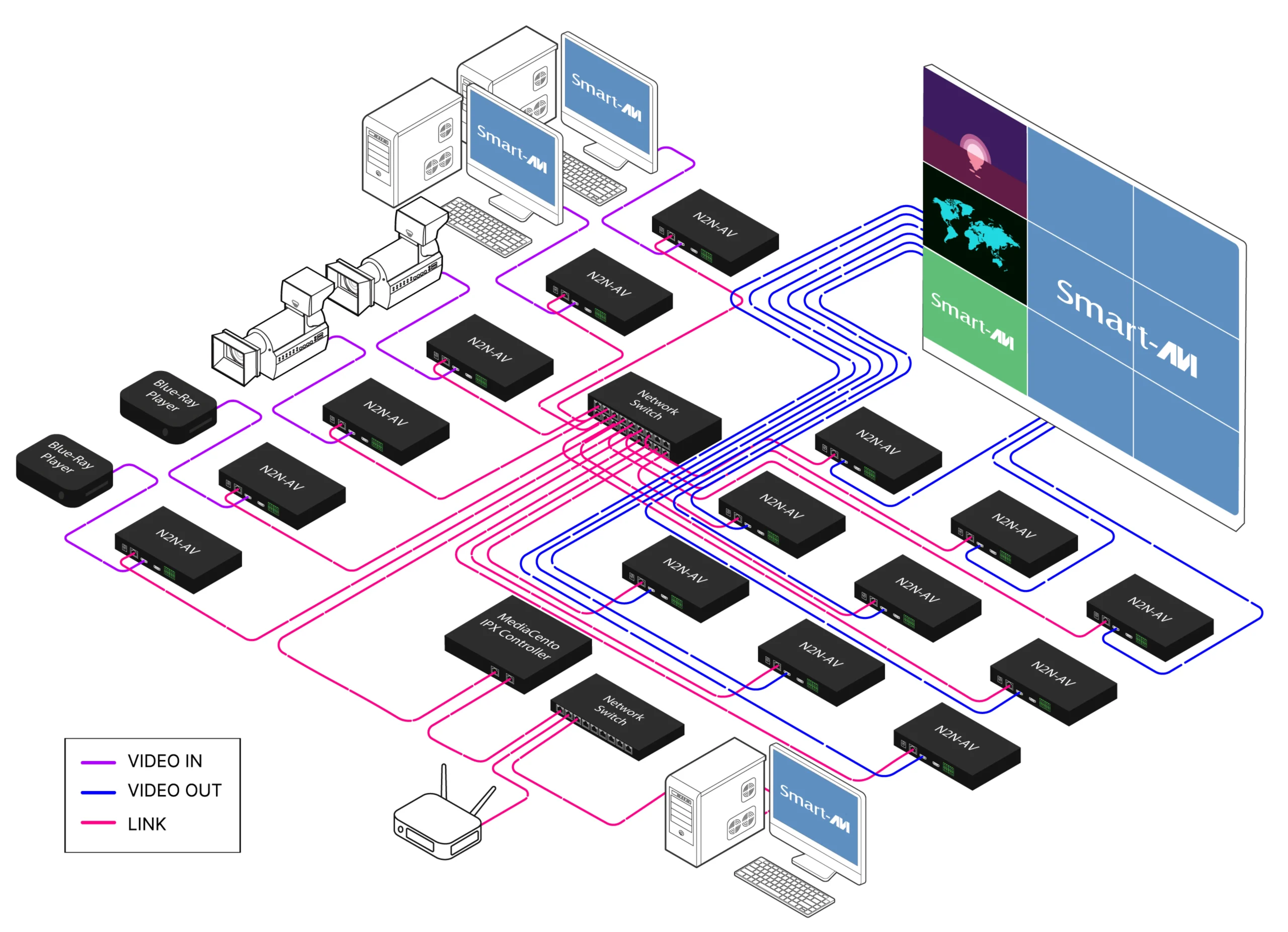

Matrix, multiview, and video walls
Flexible routing, multi-system monitoring, and saved scenes for recall on demand.

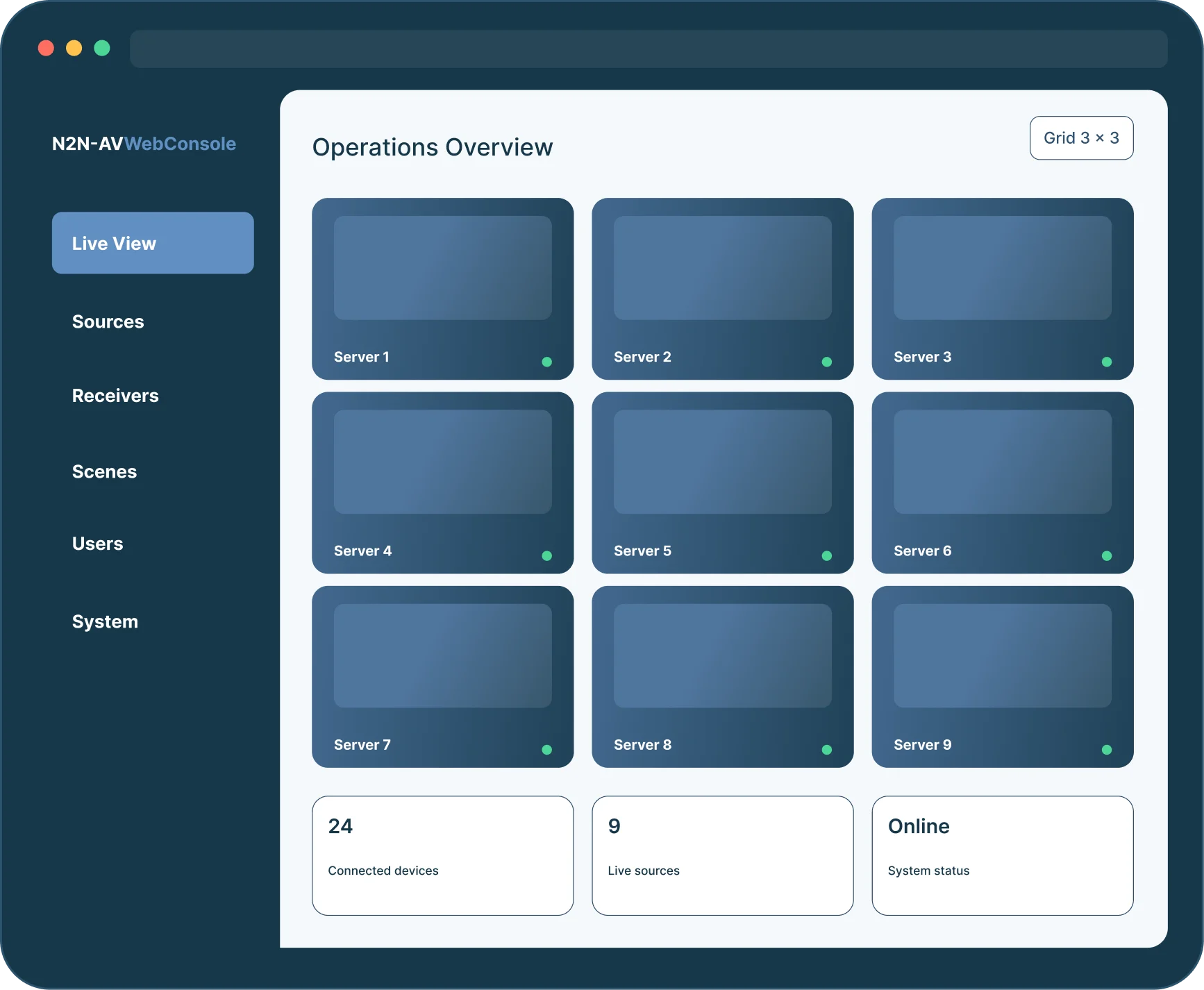

Introducing N2N-AV WebConsole™
View. Access. Distribute. From any browser.
A centralized browser interface for discovering, monitoring, viewing, and routing every connected source to any display — no management software required on the operator PC.
- ✓Device discovery
- ✓Live system status
- ✓Source switching
- ✓User permissions
- ✓Scene recall
- ✓Activity logs
Software-configurable
One unit. Every role.
Same hardware, with role set in software.
03

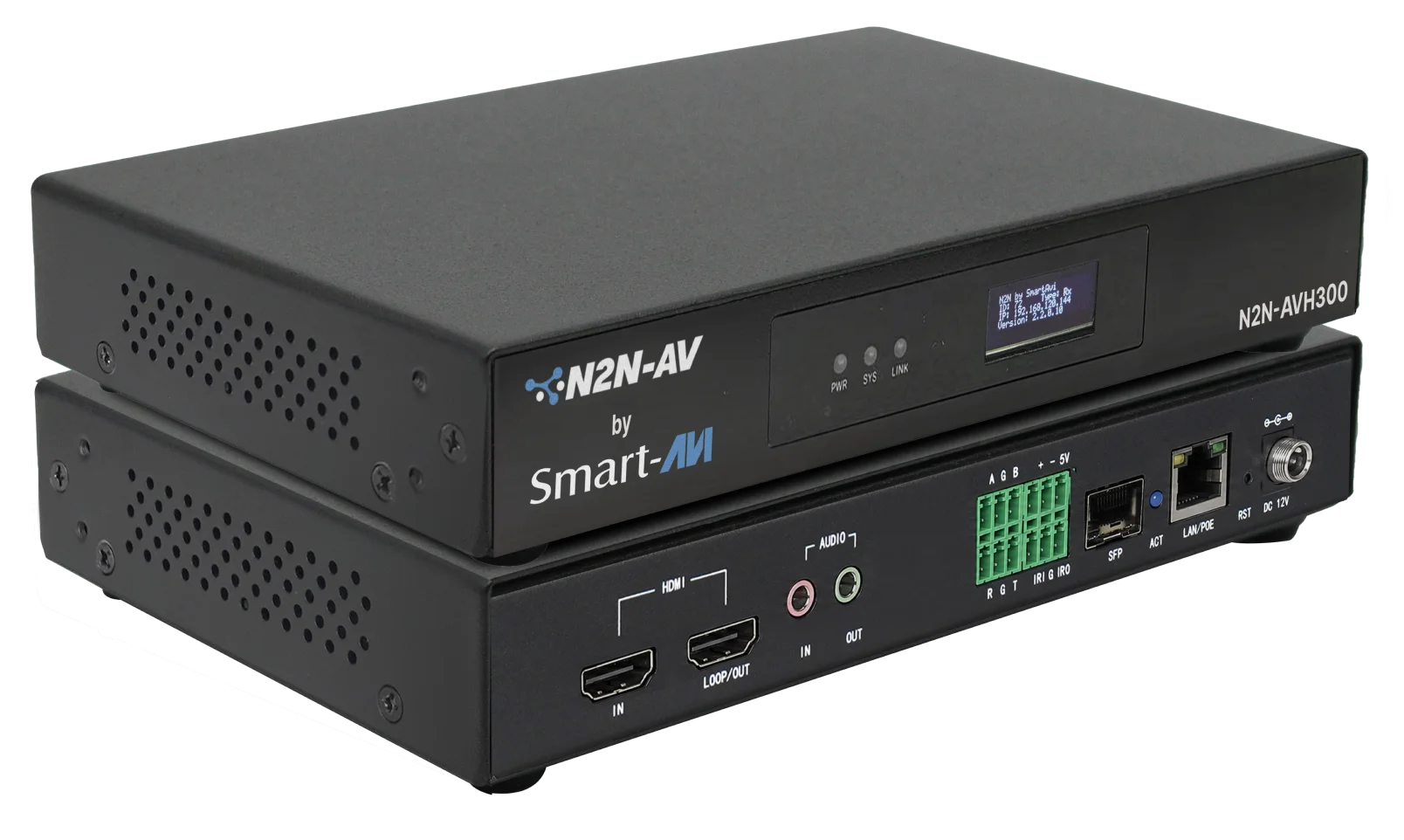

Standalone Display Station
Turns one node into a self-contained viewing station with an on-screen control panel and 1, 1×2, or 2×2 display layouts.
- Firmware-driven switching
- Built-in hotkeys and OSD
- Per-user source permissions
Flexible connectivity
From one room to 10 kilometers.
Deploy N2N-AV over the network infrastructure that fits your site. Standard copper covers room and building-scale links, while SFP fiber extends the same system across campuses and remote facilities.
CAT5 / CAT6Up to 100 m (328 ft)
Single-mode fiberUp to 10 km (6.2 mi)
AudioIntegrated stereo extension
SwitchingTCP unicast / UDP multicast

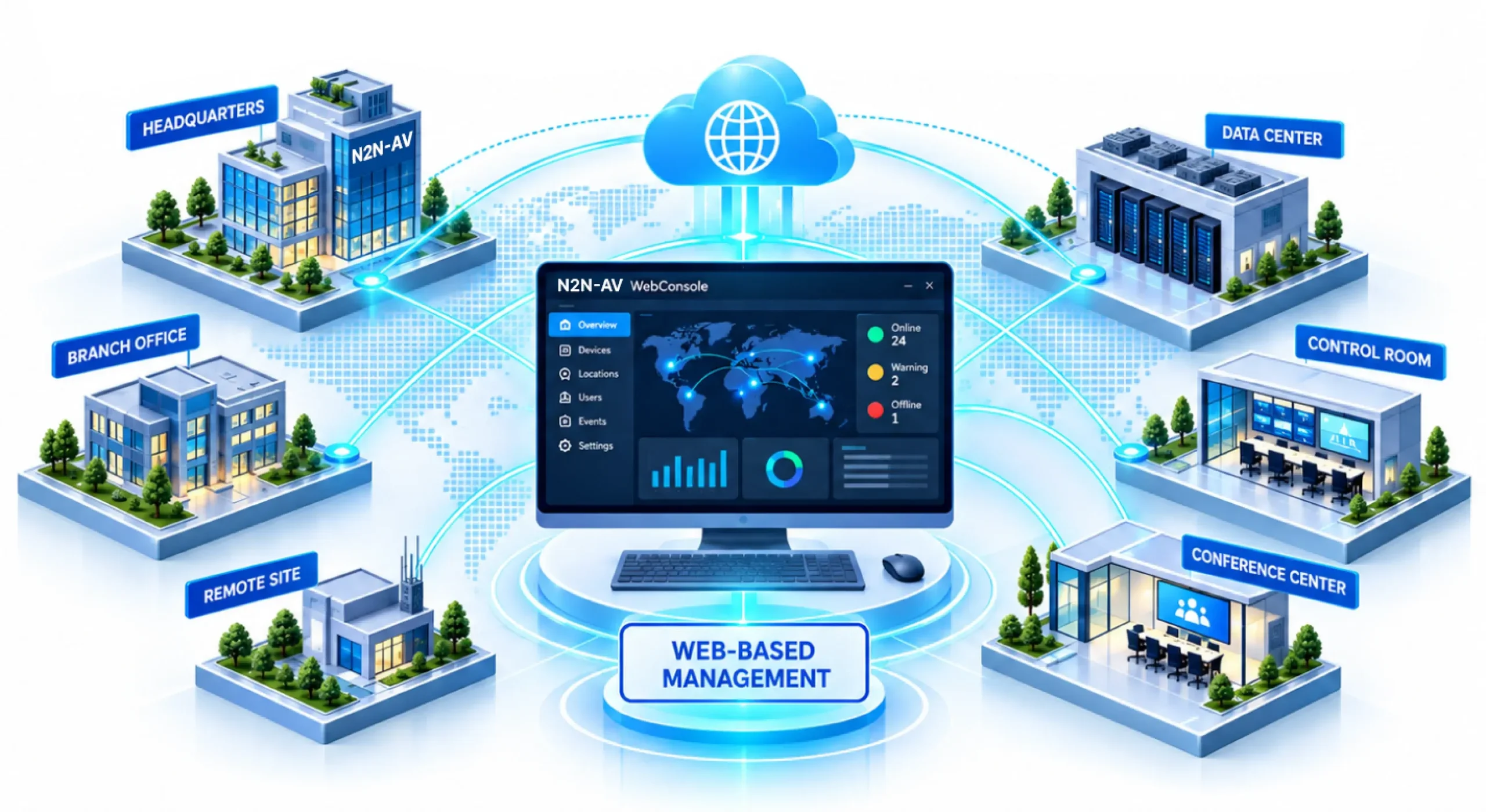

Connected operations
One system for every mission-critical environment.
Coordinate teams and technology across command centers, data centers, security operations, server rooms, multimedia facilities, and large conference environments.
Interconnected Information Sharing Multi-Party Collaboration
Break through geographical limitations to enable coordinated operations across multiple locations.
Command & Control Center
Data Dispatch Center
Security Monitoring
Digital Signage Network
Multimedia
Display Center
Display Center
Large Conference Center
N2N-AV product portfolio
Select video format and connectivity.
Each model supports both transmitter and receiver operation. Choose HDMI or DisplayPort, then add SFP fiber when the deployment requires extended distance.
| Model | Video | Roles | CAT5 | SFP Fiber | 4K30 |
|---|---|---|---|---|---|
| N2N-AVH100 | HDMI | Transmitter / Receiver | Yes | — | Yes |
| N2N-AVD100 | DisplayPort | Transmitter / Receiver | Yes | — | Yes |
| N2N-AVH300 | HDMI | Transmitter / Receiver | Yes | Yes | Yes |
| N2N-AVD300 | DisplayPort | Transmitter / Receiver | Yes | Yes | Yes |
| N2N-Avamanager | – | Management | — | — | — |
Disclaimer: Final capabilities may vary by firmware and project configuration. Contact SmartAVI to confirm.
