EZwall-UHD9Pro
4 HDMI Inputs | 9 HDMI Outputs
3×3 VIDEO WALL + 4-WINDOW MULTIVIEW
Nine screens as one picture. The browser app lets you drag walls together, tap presets and recall scenes in an instant.
Seamless 4K switching
Change sources instantly with no black screen and no glitch. Every switch is clean and fast.
3×3 video walls
Spread one image across all nine screens as a single continuous display.
Layouts in a tap
Full wall, a single row, a column, or nine independent screens. Reconfigure the room in seconds.
4-window multiview
Watch up to four live sources on one screen, each sized and placed where you want it.
True 4K60 4:4:4
HDMI 2.0 and HDCP 2.2 deliver full color and detail up to 3840×2160 at 60 Hz.
Automatic EDID and scaling
EDID handling and per-output scaling make sure every display gets the signal it expects.
Control your way
Front-panel LCD, IR remote, RS-232 and a browser app. Run the wall from the rack or from your desk.
Scene save and recall
Store a routing and layout as a scene, then recall it from the front panel or the web app.
- Command and control rooms
- Corporate lobbies and boardrooms
- Broadcast and production studios
- Sports bars and entertainment
- Retail and digital signage
- Transportation hubs
- Houses of worship
- Education and lecture halls

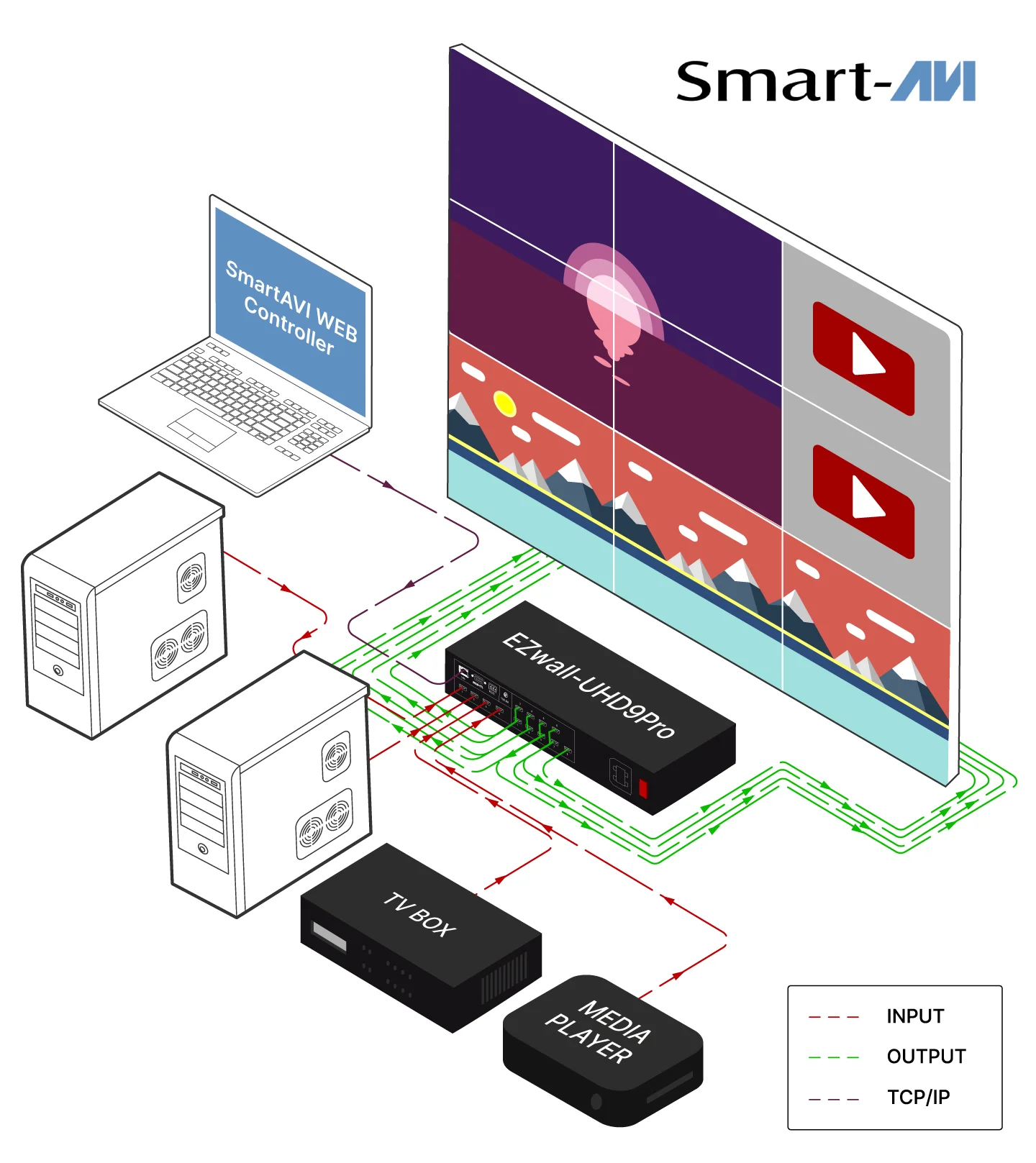

How it works
- Connect up to four HDMI 2.0 sources: media players, PCs, cameras, consoles or streaming boxes.
- Drive nine screens as a 3×3 wall, as smaller walls, or as fully independent displays.
- Open the built-in web app from any browser on your network, or use the front panel, IR remote or RS-232.
No app to install and nothing to license. Drag to stitch walls, tap a preset, arrange multiview windows, tune each output and save scenes you can recall instantly.
| Technical | |
|---|---|
| HDMI compliance | HDMI 2.0b |
| HDCP compliance | HDCP 2.2 |
| Video bandwidth | 18 Gbps |
| Video resolution | Input up to 4K@60Hz 4:4:4 Output up to 4096×2160 @60Hz |
| Color space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color depth | 8 / 10 / 12 bit |
| Audio formats | HDMI in/out: LPCM 2.0/5.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 L/R out: PCM 2.0 SPDIF optical: Dolby Digital/Plus, DTS 5.1, PCM 2.0 |
| Audio and video latency | None |
| IR level / frequency | 5 Vp-p / 38 KHz |
| ESD protection | IEC 61000-4-2: ±8 kV air-gap, ±4 kV contact |
| Connection | |

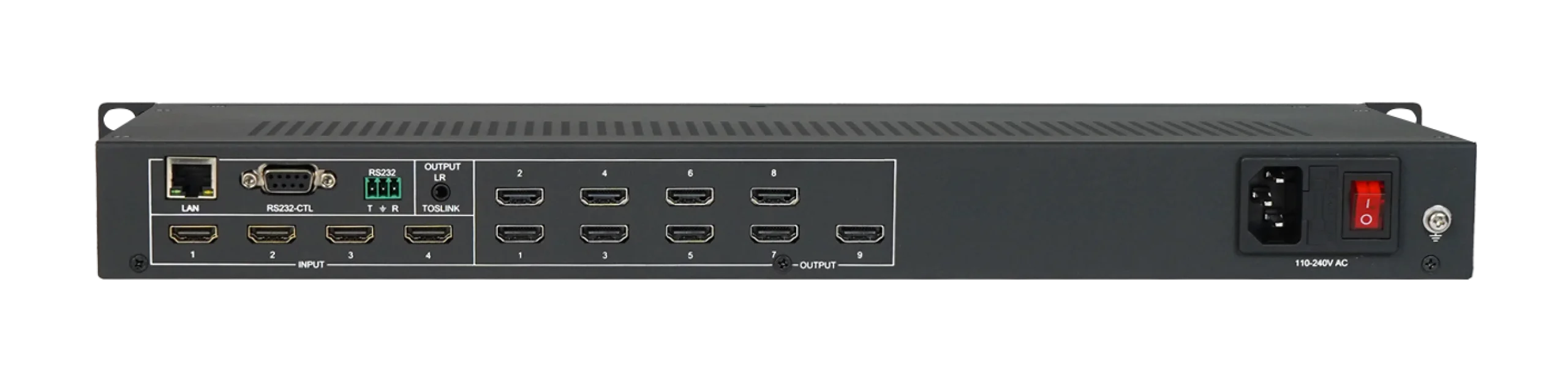

| Input ports | 4 × HDMI input, Type A, 19-pin female |
| Output ports | 9 × HDMI output, Type A, 19-pin female |
| Mechanical | |

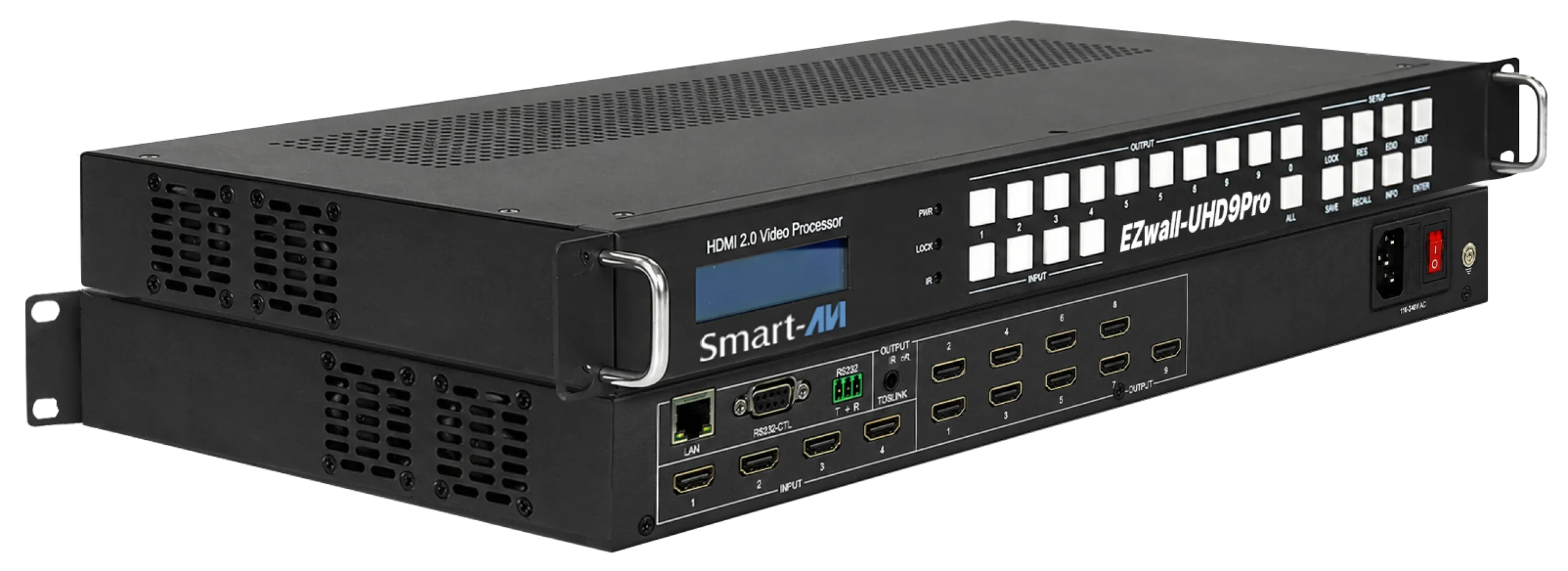

| Housing | Metal enclosure, 1U rack mount |
| Dimensions | 430 × 220 × 44 mm (16.9 × 8.66 × 1.73 in) |
| Weight | 5 kg (11 lbs) |
| Power supply | 110 to 240 VAC (IEC inlet, power cord included) |
| Power consumption | 75 W max |
| Operating temperature | 32 to 104°F / 0 to 40°C |
| Operating humidity | 10 to 70% RH, non-condensing |
| Control | |

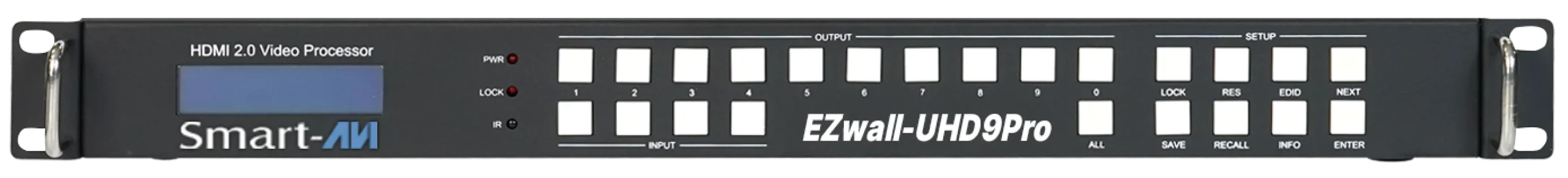

| Front panel | Buttons, select video in and out, with LCM display |
| RS-232 | Baud rate 9600, data bit 8, stop bit 1, no parity |
| Web | GUI via IP address, located from the front panel or SAVI Finder |
| PART NO. | Description |
|---|---|
| EZwall-UHD9Pro | Ultra HD 4×9 Video Wall Processor. Includes: EZW-UH9P processor, CCPWR06 power cord. |
