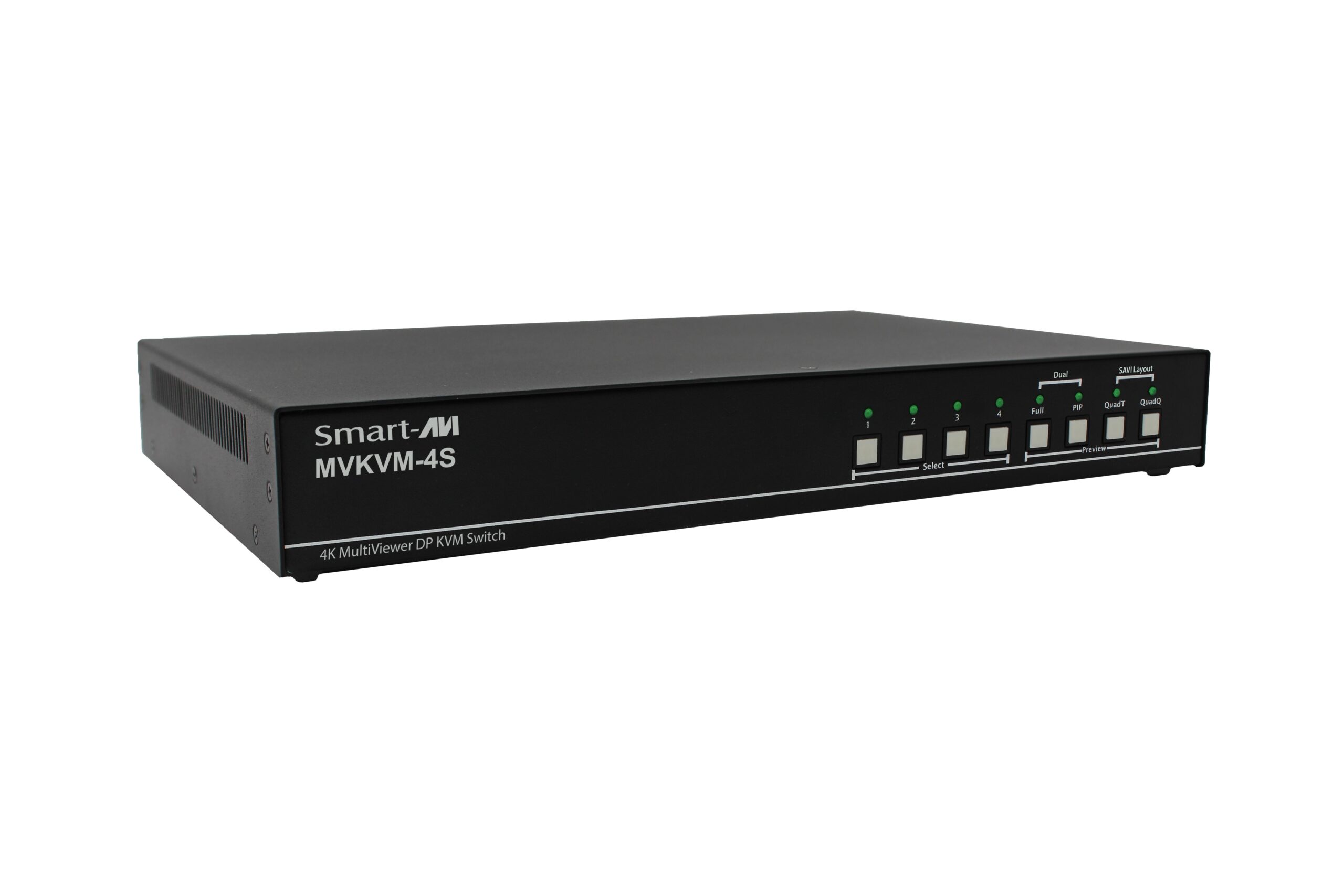

MVKVM-4S
Seamless 4K@60Hz Multiviewer with Custom Layout Configuration
The MVKVM-4S is a 4-port DisplayPort KVM switch and multiviewer built for professionals who need real-time control over multiple computers from a single console. Connect up to four computers and view all sources simultaneously on one monitor, switching instantly via front panel buttons, keyboard hotkeys, or RS-232 API commands.
Supporting 4K resolution at 60Hz, the MVKVM-4S offers five configurable display modes: Fullscreen, Quad, Dual, Picture-in-Picture, and Free Mode. These options allow custom layout configuration on the fly. An embedded web UI and on-screen display (OSD) provide full layout and EDID management without disrupting connected systems.
- Seamless 4K@60Hz multiviewer
- Custom layout configuration
- Control up to four computers with one keyboard, mouse, and monitor
- EDID retention keeps monitor settings intact
- USB keyboard and mouse emulation
- Independent USB 2.0 channels for peripherals
- Front panel, hotkey, web, and RS-232 switching
- Stereo audio support
- Flash-upgradable firmware
- AV and IT extension for secure environments
- Military and government operations
- Broadcast and production control rooms
- Digital signage and workspace centralization
- Medical and industrial command centers
| VIDEO | |
|---|---|
| Format | DisplayPort 1.2, HDMI 2.0 |
| Video Resolution | 3840 × 2160 @ 60Hz |
| Input Interface | (4) DisplayPort 20-pin female |
| Output Interface | (2) HDMI 19-pin female |
| USB | |
| Format | USB 2.0, 1.1, 1.0 |
| Input Interface | (4) USB Type B |
| Keyboard and Mouse | (2) USB 1.0 Type A |
| AUDIO | |
| Format | PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch |
| Input Interface | (4) 3.5 mm Stereo female |
| Output Interface | (1) 3.5 mm Stereo female |
| CONTROL | |
| API | RS-232 DB9 Female |

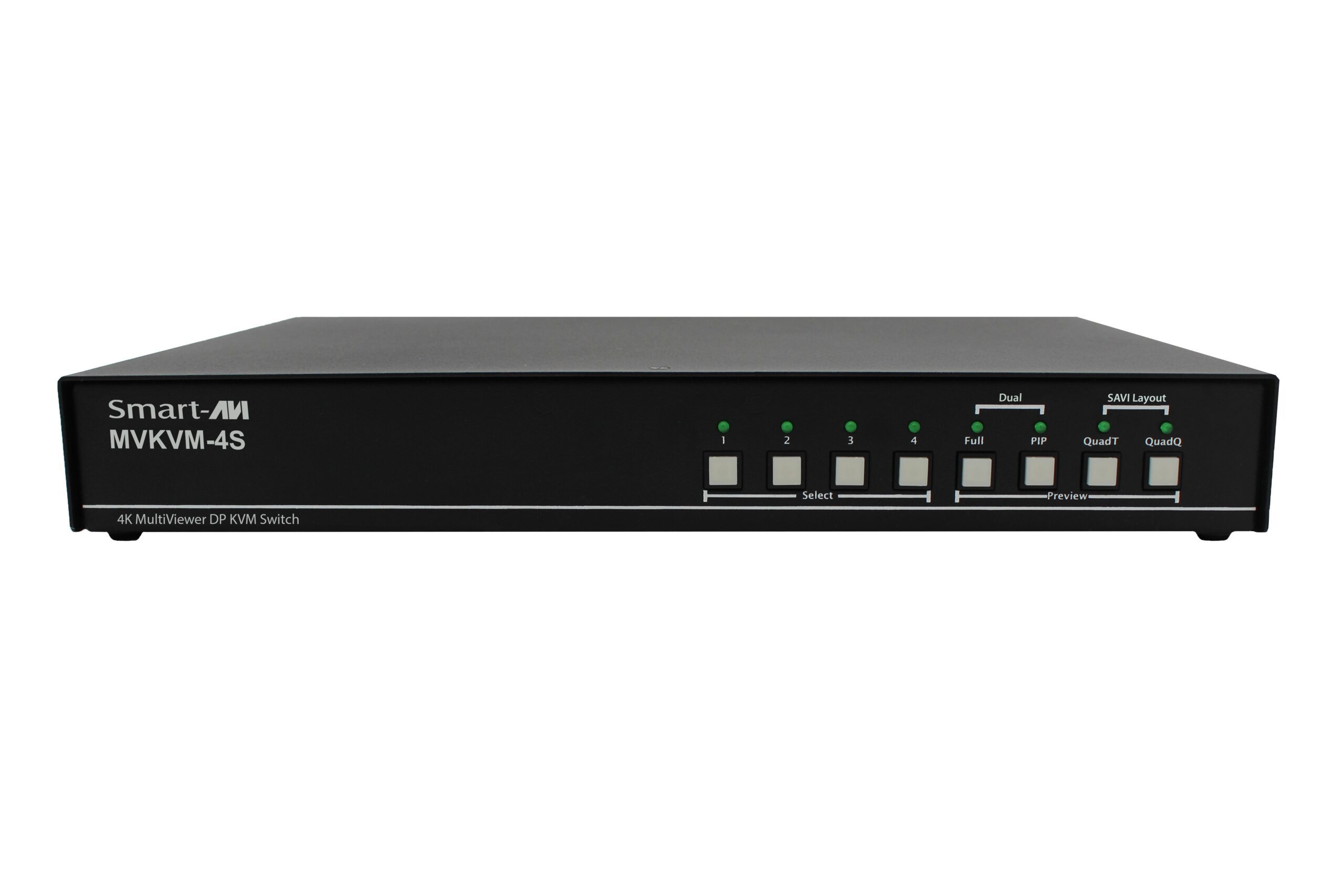

| Front Panel | Tact switches |
| OTHER | |
| Power | External 100–240 VAC / 12VDC 3A @ 36W |
| Dimensions | 12.57" W × 1.76" H × 6.69" D |
| Weight | 4.2 lbs |
| Approvals | UL, CE, RoHS Compliant |
| Operating Temp. | +32 to +104°F (0 to +40°C) |
| Storage Temp. | −4 to 140°F (−20 to +60°C) |
| Humidity | Up to 80% (No Condensation) |
| PACKAGE CONTENT | |
| Part No. | MVKVM-4S |
| Description | 4K MultiViewer DP KVM Switch |
| Power Adapter | PS12VD3A — 12VDC, 3A power adapter with center-pin positive polarity |
| Part No. | ORDERING INFORMATION |
|---|---|
| SM-MVKVM-4S-S | 4K MultiViewer DP KVM Switch. Includes: [SM-MVKVM-4S & PS12VD3A-WLLMNT] |
