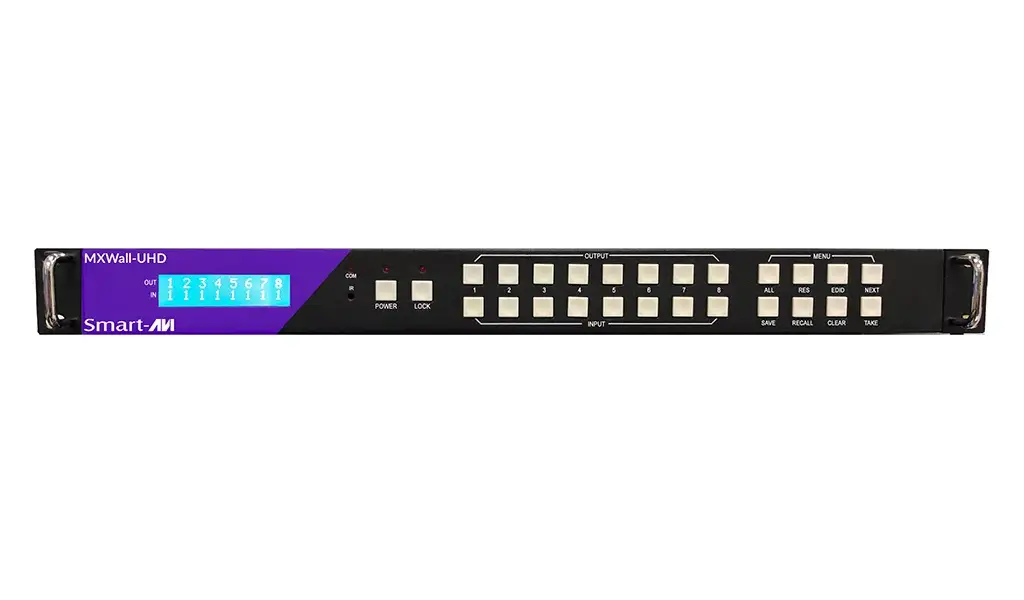

MXWall-UHD

The MXWall UHD is an 8×8 Ultra HD (4k/60Hz) video wall with seamless Matrix features, RS-232 command capabilities and a Windows GUI.

BECOME A DEALER
  • Supports UHD 4K/60Hz, 4K/30Hz and 1080p/60Hz on both inputs and outputs
  • HDMI 2.0 input
  • Seamless switching
  • Control via IP, RS-232 and the front panel
  • Windows GUI allows unlimited customization
  • Can be configured as 2×4, 4×2, 1×8 and more
  • Integrated scaler can convert any resolution to UHD
  • Complete hardware solution
  • Plug-and-play ready
  • Unlimited Layouts
  • Corporate or Educational Presentations
  • Airport Installations
  • Wall Displays
  • Digital Signage
  • Dealer Rooms
  • Control Rooms
  • Shopping Centers
  • Security
  • Point-of-Sale Retail
  • Entertainment Venues
  • Corporate Lobbies
  • Restaurants
VIDEO
Amplifier Bandwidth 18 Gbps
Input Video Signal Video (TMDS) 0.4~1.0Vpp
Input DDC Signal 5 volts
Compliances HDMI 2.0, HDCP 2.2
Input Resolutions 3840 x 2160 @ 24 Hz / 25 Hz / 30 Hz / 50 Hz / 60 Hz
Output Resolutions 3840 x 2160 @ 24 Hz / 25 Hz / 30 Hz / 50 Hz / 60 Hz; 1080p @ 60 Hz
Video Type HDMI

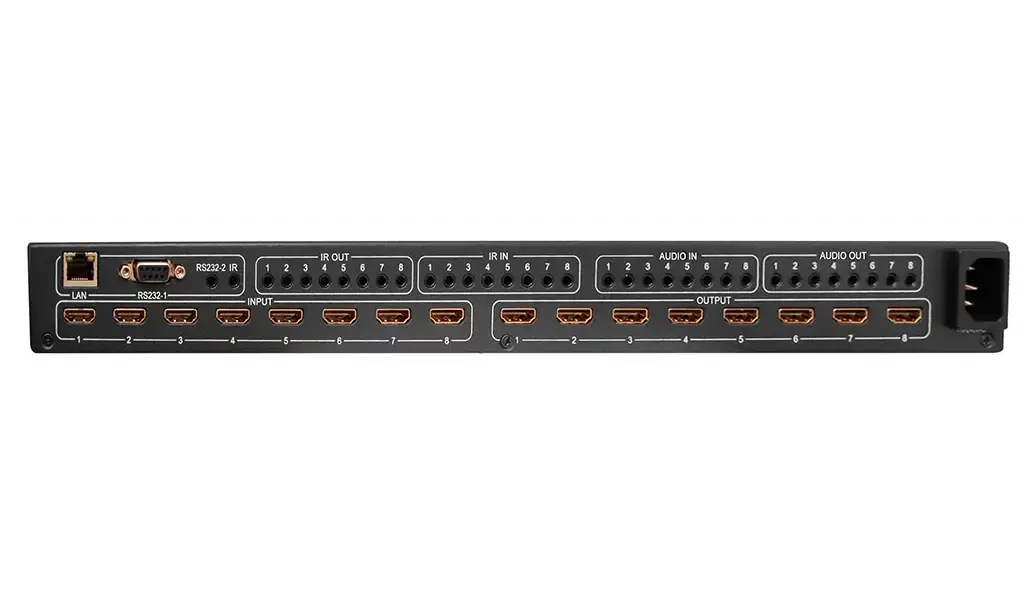

Input Interface (8) HDMI
Output Interface (8) HDMI
IR CONTROL
Input Interface (8) 3.5mm (Female)
Output Interface (8) 3.5mm (Female)
AUDIO
Format Stereo
Input Interface (8) 3.5mm (Female)
Output Interface (8) 3.5mm (Female)
OTHER
Working Temperature 0°C~+40°C
Storage Humidity 10%~50%
Weight 11 lbs
Dimensions 17” (W) x 3.5” (H) x 15” (D)
Power Supply 50/60Hz, 110-240 VAC
Consumption 100W
CONTROL
Front Panel Tacticle Switches
RS-232 DB9 connector, Baud Rate 9600
TCP/IP RJ-45, UDP telnet
Part No. Description
MXWall-UHD-S 8×8 4K/60Hz Video Wall Processor and Matrix Switch. Includes: [MXWALL-UHD and CCPWR06]
