N2N-AVH100
Low-bandwidth 4K AV-over-IP, powered by H.264 / H.265
Access, monitor, and control remote computers from one workstation or any modern browser. The N2N-AVH100 brings responsive control, multiview monitoring, and scalable AV distribution to standard IP networks.
The N2N-AVH100 sends HDMI video, stereo audio, and USB keyboard and mouse control over IP, helping teams manage multiple computers with fewer physical workstations. It works at the hardware level, straight off the video and USB ports, so there is no OS dependency, no VPN client, and no agent on the source machines.
Every unit is a transceiver.The same part number works as a transmitter or a receiver, set in software, so a link is built from two identical units and spares are a single SKU.
- Hardware-level access. Control computers directly through their video and USB ports. No agent, operating system, or source-side application required.
- One unit, every role. Each N2N node is software-configurable as a transmitter, a receiver, or a standalone station. A link is two units of the same part number.
- 4K UHD video extension. Transmit HDMI video up to 3840 x 2160 @ 30Hz with integrated stereo audio and USB keyboard and mouse control.
- H.264 / H.265 compression. Low-bandwidth 4K over-IP that runs on standard IP networks instead of dedicated AV infrastructure.
- Built for standard IP networks. Gigabit Ethernet with unicast or multicast streaming for point-to-point and one-to-many distribution.
- Matrix, multiview, and video walls. Route any source to any display, monitor multiple systems together, and save complete layouts as reusable scenes.
- N2N-AV WebConsole. A centralized browser-based interface for discovering, monitoring, viewing, and controlling N2N-connected systems, with no management software installed on the operator computer.
- Standalone station. Turn one node into a self-contained workstation. Open the on-screen control panel, select a permitted source, and work with single, 1×2, or 2×2 display layouts.
- User and permission management. Per-user source permissions, live system status, and activity logs.
- CAT5 connectivity. Runs on standard gigabit Ethernet over CAT5/CAT6 up to 100 m per device, with no dedicated AV cabling. For longer runs see the 300 Series with SFP fiber.
Centralized browser-based monitoring, viewing, and control across multiple locations. N2N AV lets an operator control, view, and manage multiple remote computers from one centralized workstation over a standard IP network, with no proprietary matrix hardware or source-side software required.
- Command & Control Center
- Data Center Operations
- Security Monitoring
- Server Room Management
- AV / Multimedia Control
- Conference & Collaboration
The same platform scales from a handful of stations to a full command-room deployment, reaching sources up to 100 m over CAT5/CAT6.
N2N-AVH100 HDMI CAT5 4k30 Encoder/Decoder/Codec
| VIDEO | |
|---|---|
| Video In/Out | Each unit can be setup as encoder or decoder |
| Encoder In | HDMI 1.4 Compliant, Video Bandwidth Up To 10.2 Gbps Local loop Out HDMI 1.4 |
| Decoder Out | HDMI Port 1.4 Compliant, Video Bandwidth Up To 10.2 Gbps |
| Video Resolution | Up to 3840x2160x30Hz |

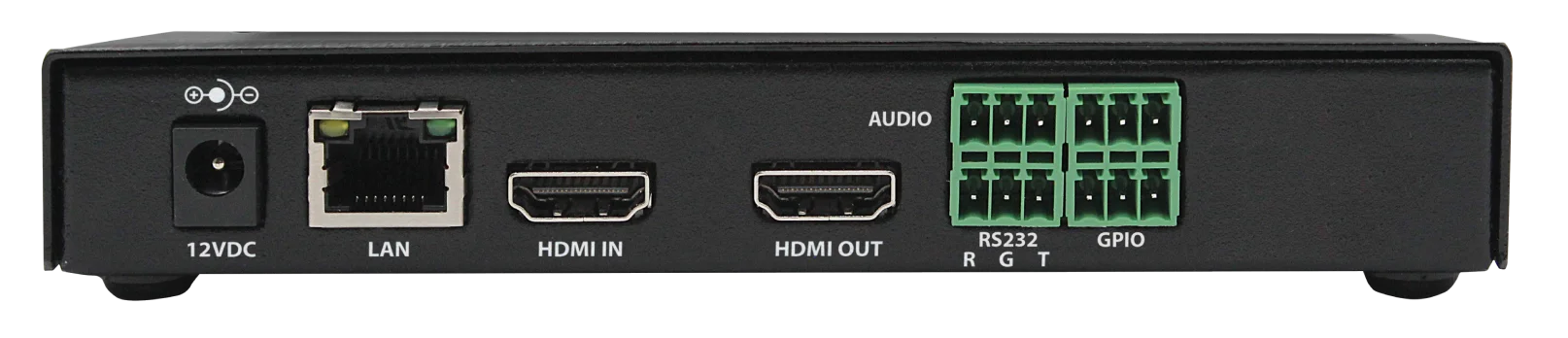

| Connector | 2×HDMI (19-Pin Female) |
| SYSTEM | |
| Interface | EDID Storage & Emulation |
| Latency | 70 ~ 110ms |
| Protocols Supported | TCP unicast, UDP multicast, RTSP, RTMP |
| Compression Supported | H.264 / H.265 |
| RS-232 | Pass-Through up to 115200 |
| Management | OSD, N2N Manager, N2N-AV WebConsole |

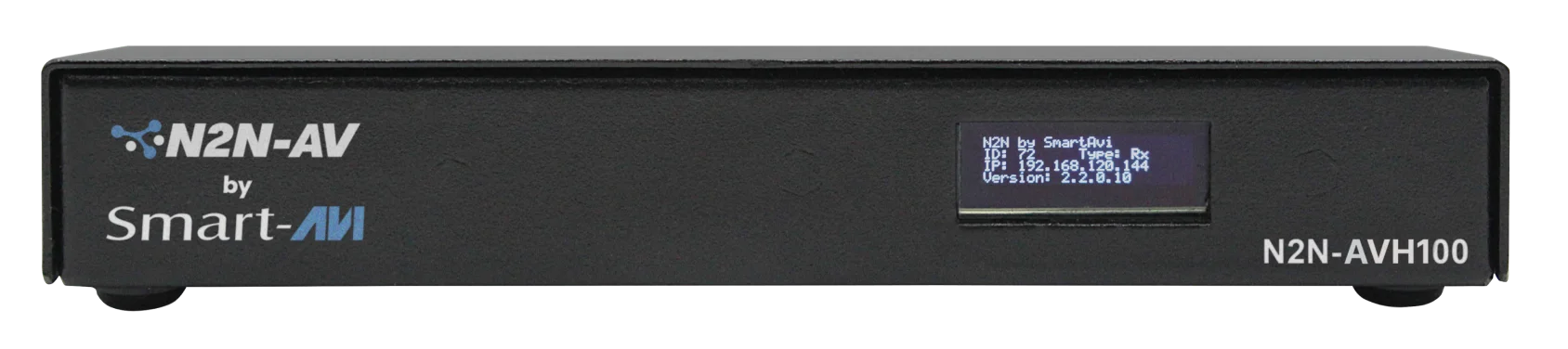

| Front Panel | LED with IP information |
| AUDIO | |
| Format | PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch |
| In/Output Interface | 3.5 mm Stereo Aux Socket (Female) |
| SOURCES | |
| Compatible With | Computer, media player, set-top box, camera, or any HDMI/DisplayPort AV source |
| Local Control | No keyboard/mouse pass-through — pure AV distribution, routed via OSD, N2N Manager, or WebConsole |
| NETWORK INTERFACE | |
| RJ-45 10/100/1000M Transmission Distance | Up To 100 m |
| OTHER | |
| Power | Input Voltage 85~264Vac Output Voltage 12V DC 3A 36W |
| Reliability | (MTBF) 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10 % to 90 %, non-condensing |
| ESD Protection | Protection Per IEC 61000-4-2 |
| Support Warranty | 1-Year |
| Certification | CE, FCC, RCM, UL |
| Dimensions | 150mm x 100mm x 25mm |
| Weight | 0.63kg |
| Part No. | Ordering Information |
|---|---|
| N2N-AVH100-S | N2N-AV HDMI 4k30 cat5 ethernet encoder/decoder Includes: [N2N-AVH100 & PS12VD3A] |
A working link requires two units of the same part number, one set as transmitter and one set as receiver. Add one unit per additional source or display. For runs beyond 100 m, see the 300 Series with SFP fiber.
