N2N-Manager
Centralized desktop management for the complete N2N-KVM system
N2N-KVM Manager is the desktop application for administering a complete N2N KVM-over-IP deployment. Discover and configure N2N-KVM endpoints, manage users and permissions, and operate remote computers through live KVM and multiview, all from one application.
Administrators work from a single live device table rather than moving between separate tools. Search the network, review endpoint status, apply device and network changes, and set operating roles for transmitters, receivers, and KVM endpoints. Device ID, name, and model updates appear immediately on the endpoint OLED, so changes are confirmed at the rack as well as on screen.

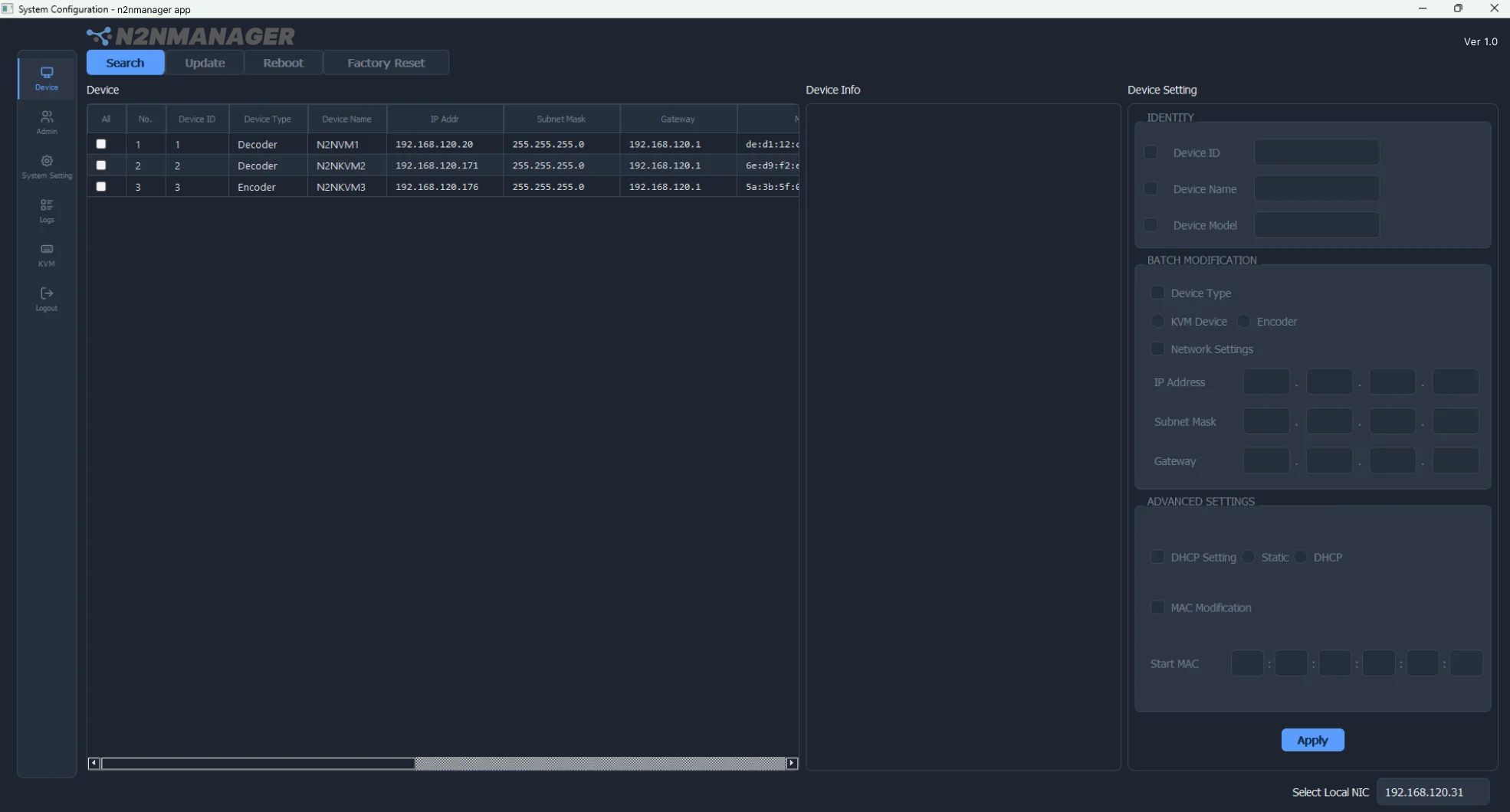

- Device discovery. Search the local network and populate one live device table with every N2N-KVM endpoint found.

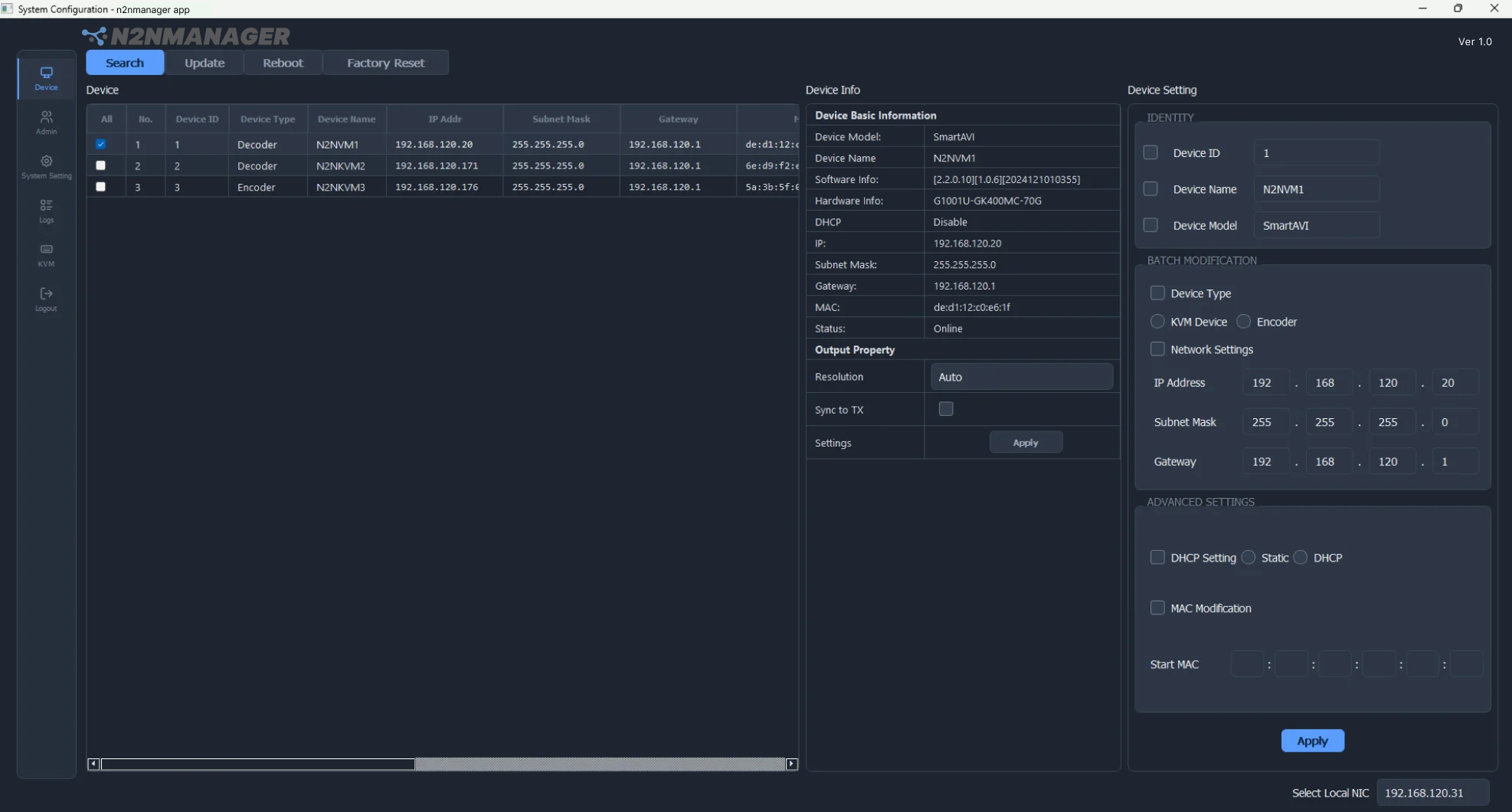

- Device configuration. Update device identity, model, IP address, subnet, gateway, and related network settings.
- Operating roles. Apply settings for N2N-KVM transmitters, receivers, and KVM endpoints from the same console.
- Immediate confirmation. Device ID, name, and model updates appear on the endpoint OLED as soon as they are applied.

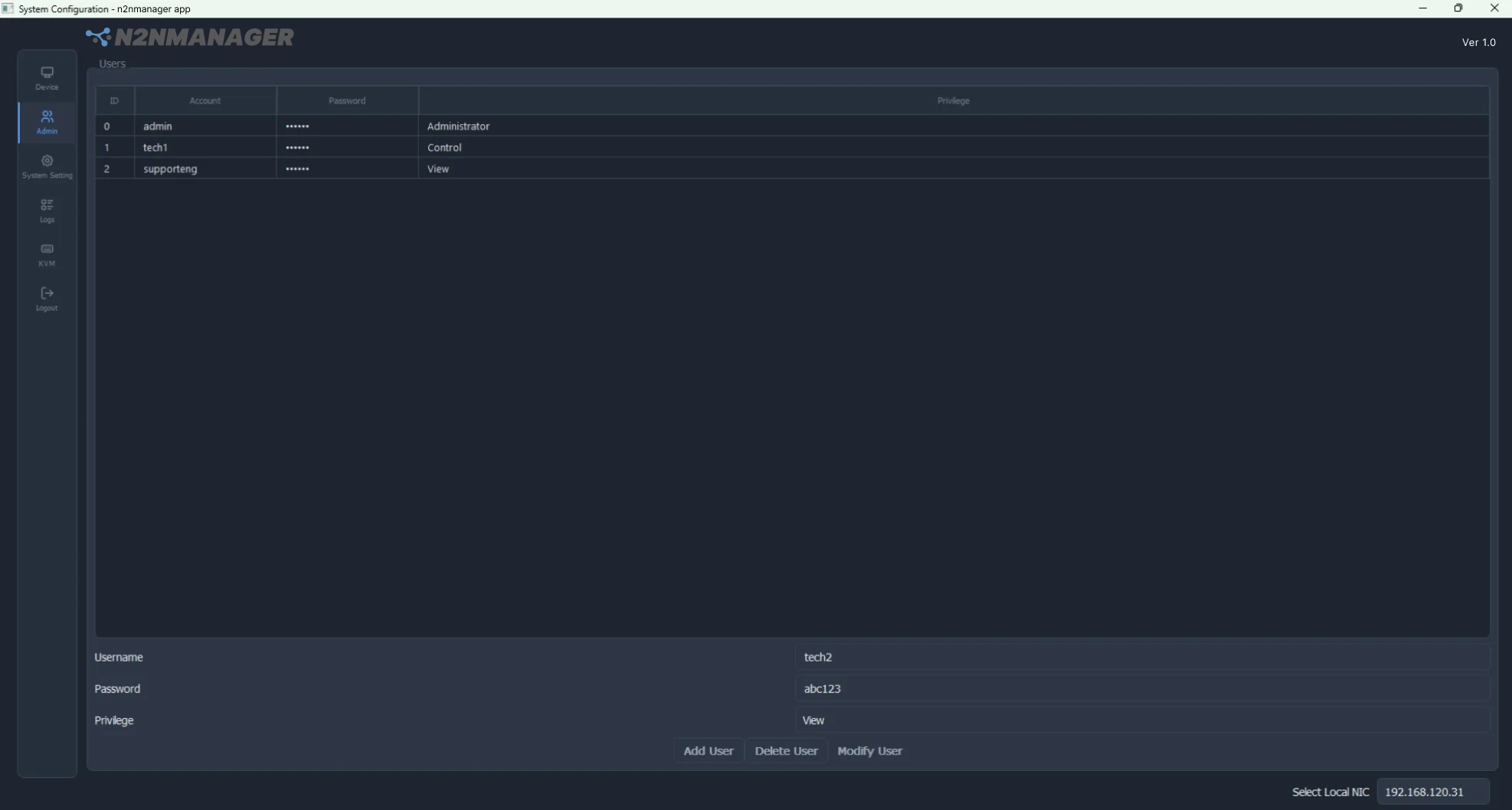

- User administration. Add, modify, and remove user accounts from one administrative view.
- Access control. Assign the appropriate access permission for each user and manage access to sources, groups, and sites.

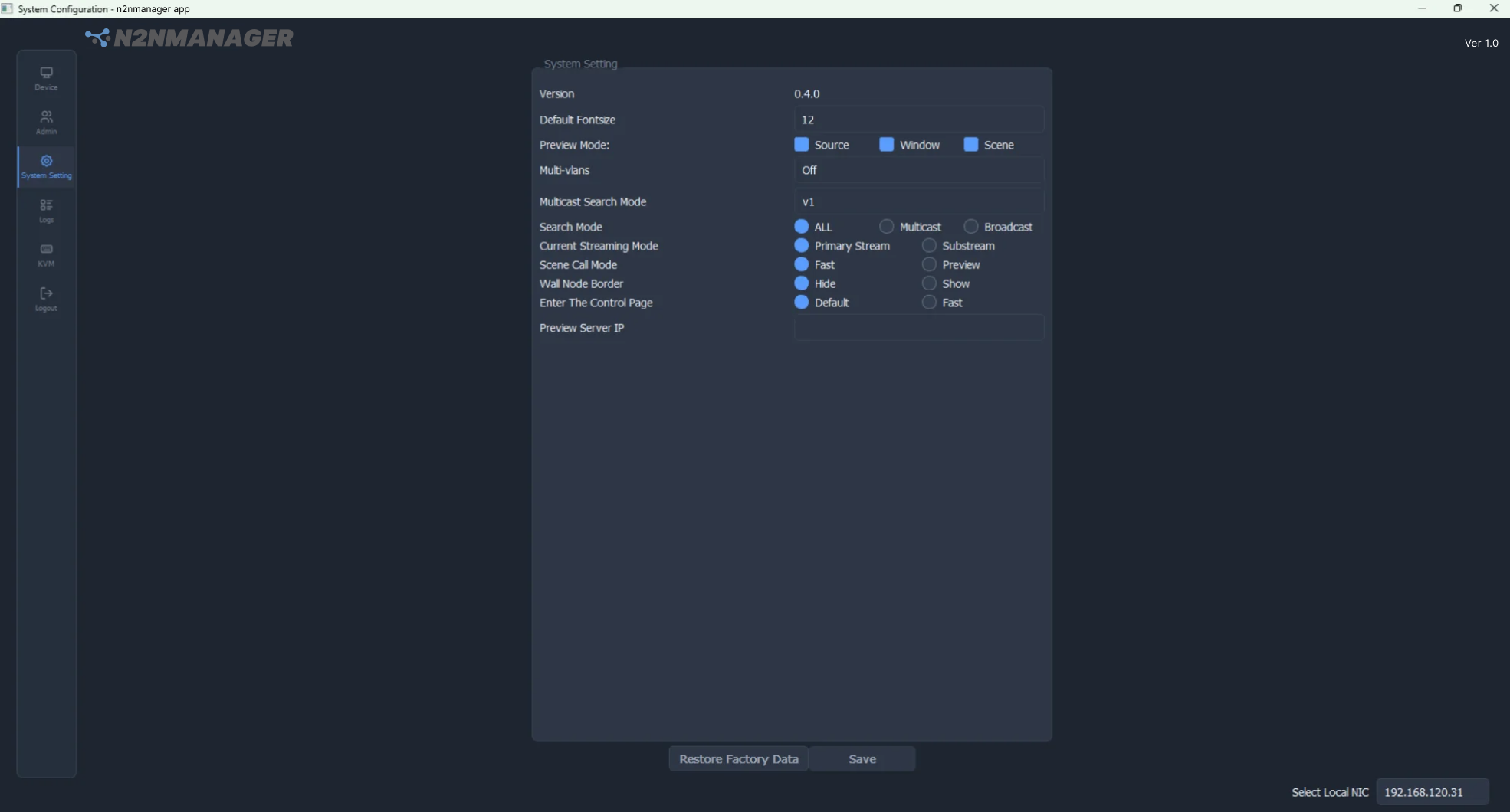

- System configuration. Save application settings for consistent operation across the deployment, and restore factory data when needed.
- Live source preview. See connected sources in the preview panel before switching.
- Drag to arrange. Drag a source into the main viewing canvas to place it.

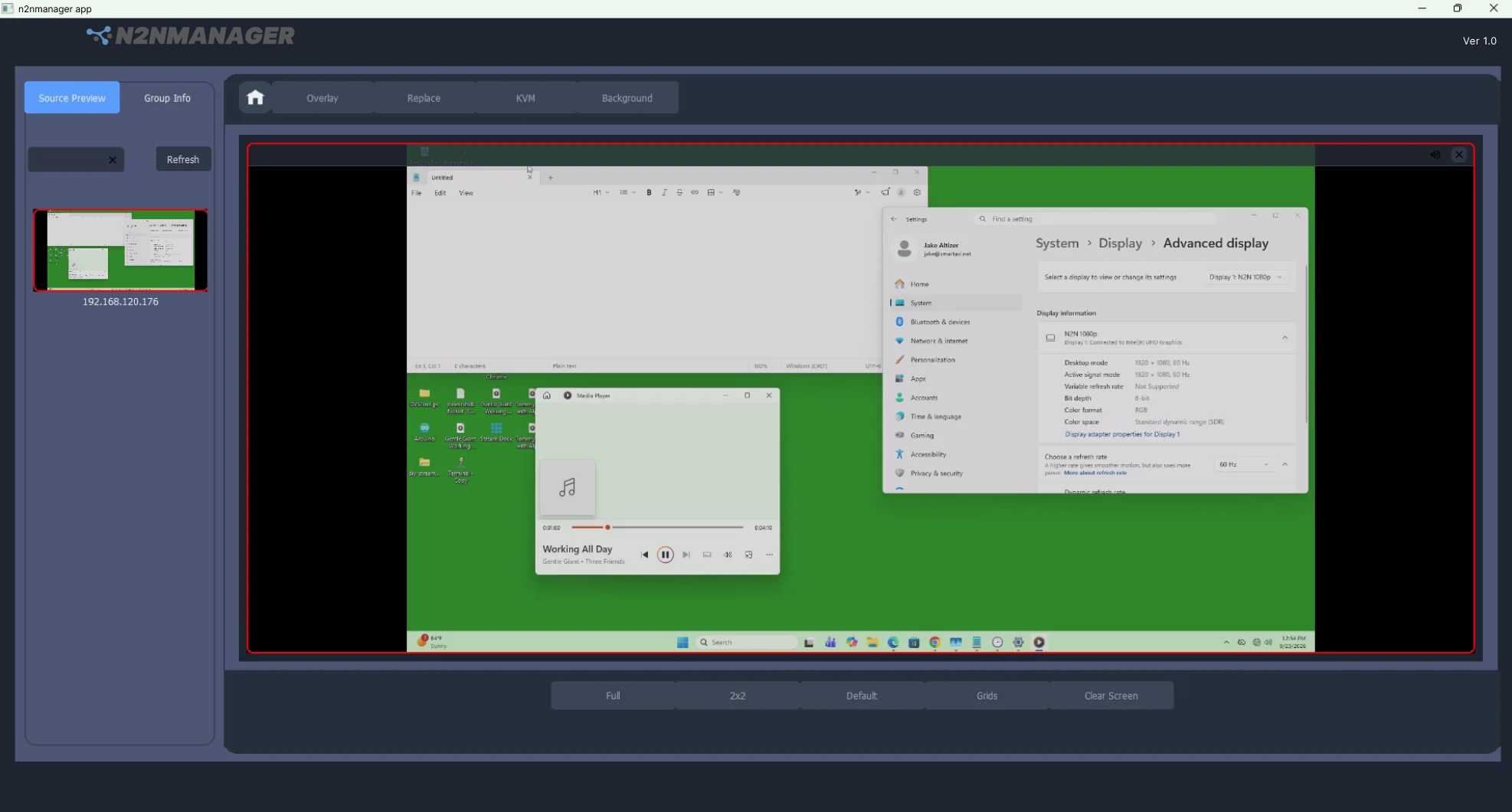

- Full-screen KVM control. Open full-screen KVM for active keyboard and mouse control of the selected remote computer.

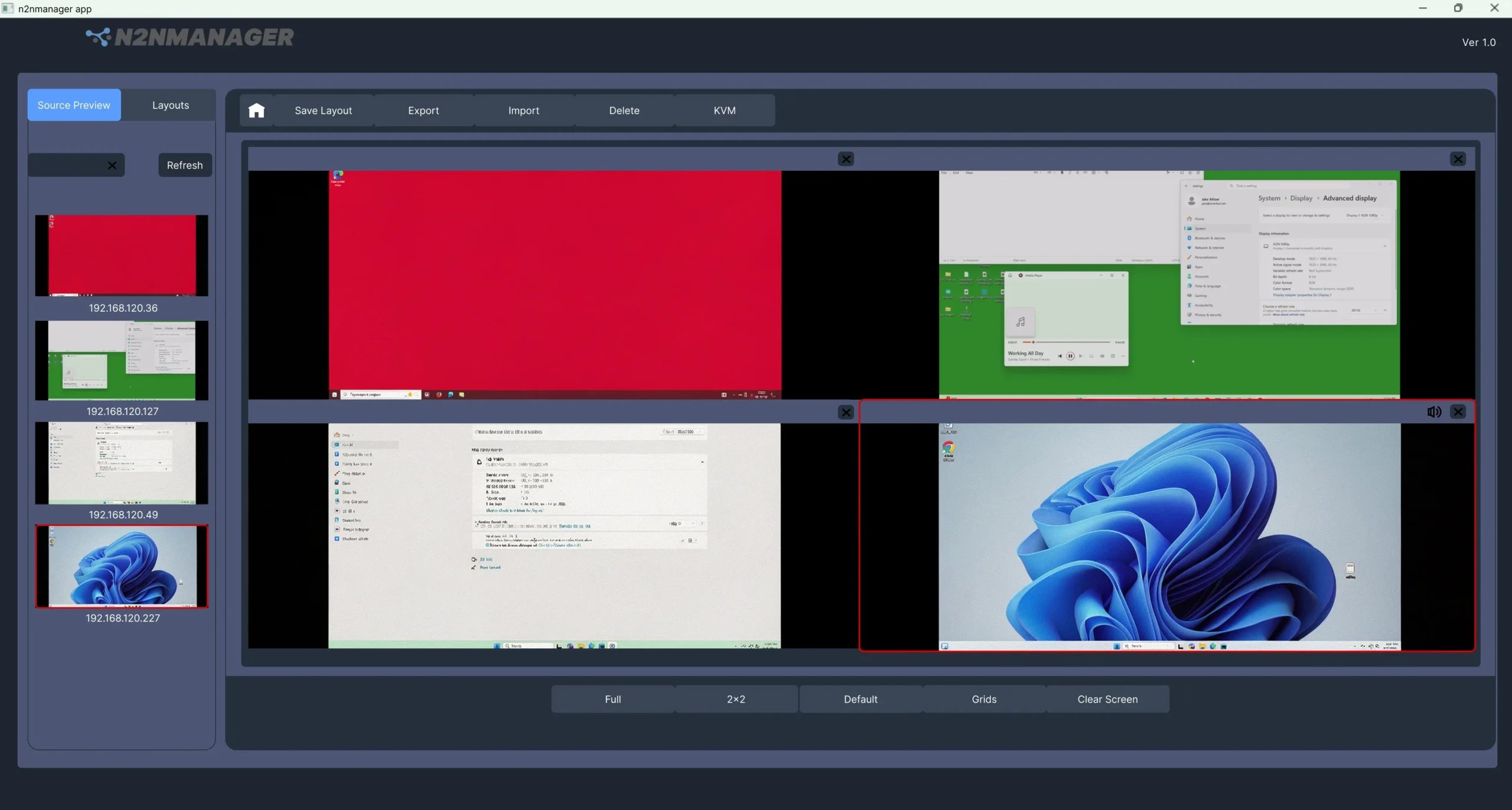

- Multiview layouts. Choose a 2×2 layout or create a custom grid.
N2N-KVM Manager is the administrative console for any N2N-KVM deployment. It suits environments where one team is responsible for configuring endpoints, controlling who can reach which sources, and operating remote computers day to day.
- Command & Control Center
- Data Center Operations
- Security Monitoring
- Server Room Management
- AV / Multimedia Control
- Conference & Collaboration
Manage access, maintain configuration, and support day-to-day N2N-KVM operations from the same desktop application.
| SOFTWARE | |
|---|---|
| Product | N2N-KVM Manager desktop application |
| Version | Ver 1.0 |
| Platform | Windows |
| Part Number | N2N-MGR V1.0 |
| MANAGEMENT | |
| Device Discovery | Search the local network and populate one live device table |
| Device Configuration | Device identity, model, IP address, subnet, gateway, and related settings |
| Operating Roles | N2N-KVM transmitter, receiver, and KVM endpoint |
| Endpoint Feedback | Device ID, name, and model updates shown on the endpoint OLED |
| System Configuration | Save application settings; restore factory data and restart to apply |
| USERS AND ACCESS | |
| User Accounts | Add, modify, and remove accounts from one administrative view |
| Permissions | Per-user access permission, with access managed by source, group, and site |
| OPERATION | |
| Source Preview | Live preview panel of connected sources |
| Source Placement | Drag a source into the main viewing canvas |
| KVM Control | Full-screen KVM for active keyboard and mouse control |
| Multiview Layouts | 2×2 layout or custom grid |
| COMPATIBILITY | |
| Managed Products | N2N-KVM Series: N2N-KVH100, N2N-KVD100, N2N-KVH300, N2N-KVD300 |
| Network | Same local network as the N2N-KVM endpoints |
| Part No. | Ordering Information |
|---|---|
| N2N-MGR V1.0 | N2N Manager Ver1.0 for Windows |
N2N-KVM Manager administers N2N-KVM Series endpoints. Managed products: N2N-KVH100, N2N-KVD100, N2N-KVH300 and N2N-KVD300.
Contact SmartAVI for system design, product selection, and deployment support.
