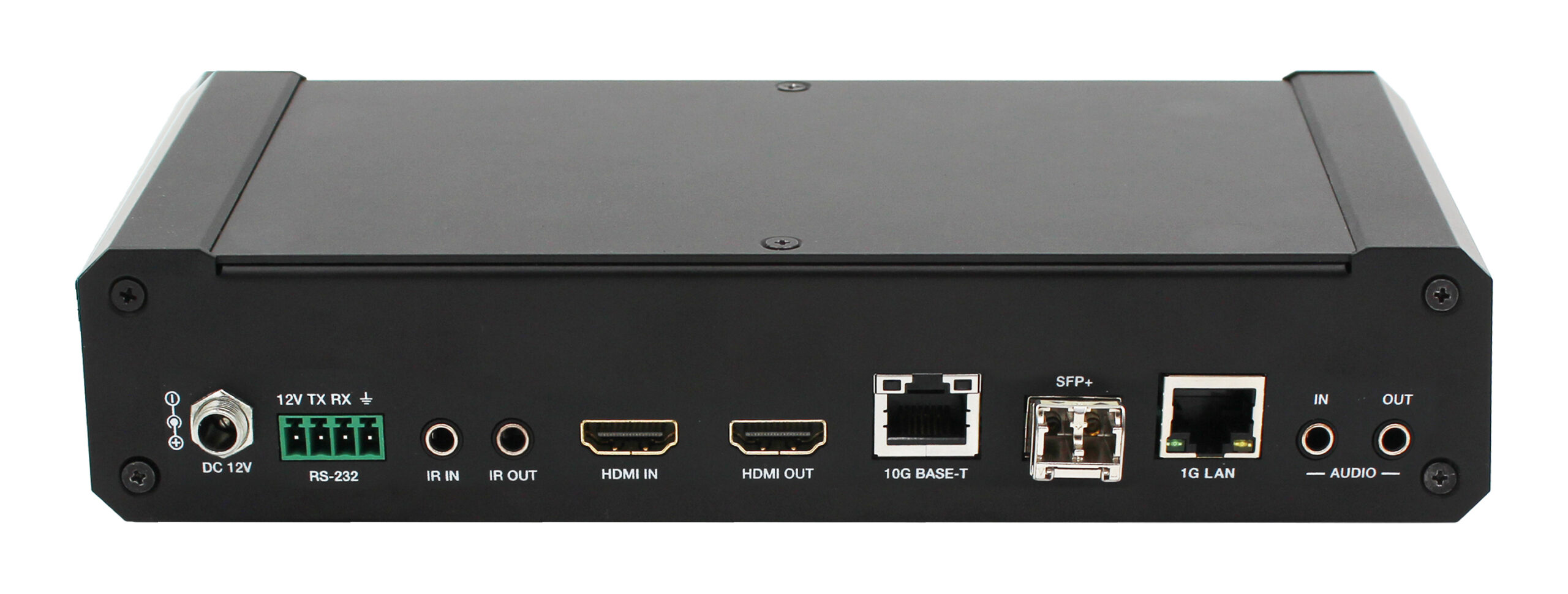

X2X-KHX300

UHD IP KVM Extender with Matrix Switching and Multiviewer

BECOME A DEALER
BECOME A DEALER
  • Uses the latest SDVoE technology. Leverage cutting-edge SDVoE features for ultra-low latency and high-quality video distribution.
  • 4K 60 HDMI Over LAN w/HDR. Deliver crystal-clear 4K60 signals over standard networks, complete with High Dynamic Range.
  • Includes Multiviewer KVM. Simplify control and monitoring by displaying multiple video sources on a single screen with keyboard and mouse support.
  • Support USB 2.0. Seamlessly integrate USB peripherals, enabling data transfer and device management over the same network.
  • 4:4:4, 10Gbps & HDCP 2.2. Ensure full bandwidth color subsampling, high-throughput data transmission, and secure content protection.
  • Server Manager to control all devices. Centralized management for easy configuration and monitoring of multiple endpoints.
  • Web GUI & RS232 Control. Convenient setup and operation through an intuitive web interface or serial commands.
  • Support Cat5 up to 100m. Extend signals reliably across Category 5 cabling for up to 100 meters.
  • Fiber up to 500m. Achieve even greater distances, up to 500 meters, when using fiber connections.
  • No latency and no compression. Experience real-time transmissions with no loss of video or audio quality.
  • Seamless Switching. End-to-end transport latency under 100 microseconds (less than 1/150th of a video frame) for virtually instant source changes.
  • Fully uncompressed transmission for all HD and 4K30 signals. Preserve pristine signal integrity from source to display without any compromise.
VIDEO
HDMI Compliance HDMI 2.0b
Input Interface (1) HDMI Type A, 19-pin female
Output interface (1) HDMI Type A, 19-pin female
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Input Format 10GBaseT
Video Resolution Up to 4K@60Hz 4:4:4
Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth Full Color-Depth
HDR HDR, HDR 10, HDR10+, Dolby Vision, HLG
AUDIO
HDMI Format LPCM, Dolby Digital/Plus/EX,
Dolby True HD, Dolby Atmos, DTS,
DTS-EX,DTS-96/24, DTS High Res,
DTS-HD Master Audio, DSD, DTS:X
Analog Format Left and Right stereo analog audio
Input Interface (1) 3.5 mm Jack female
Output Interface (1) 3.5 mm Jack female
USB
Input Interface (1) USB 2.0 Type B female
Output Interface (1) USB 2.0 Type A female
SYSTEM
Transmission Distance 90 m (CAT6)
100 m (CAT6A/7)
1000 ft (Fiber)
Network ports (1) RJ45 Jack (10G BASE-T)
(1) Fiber slot (10G SFP+)
(1) RJ45 Jack (1G LAN)
RS-232 (1) Phoenix 4-pin
OTHER
Power Supply Input: AC 100 – 240V 50/60Hz,
DC 12V 3A
Dimensions 8” W x 5.3” D x .8” H
Weight 1.5 lbs
Operating Temperature +32 to +104°F (0 to +40°C)
Storage Temperature -4 to 140°F (-20 to +60°C)
Humidity Up to 80% (No Condensation)
NAME Description
X2X-KHX300-S X2XKVM UHD IP KVM Extender with Matrix Switching and Multiviewer. [X2X-KHX300, PS12VD3A]
